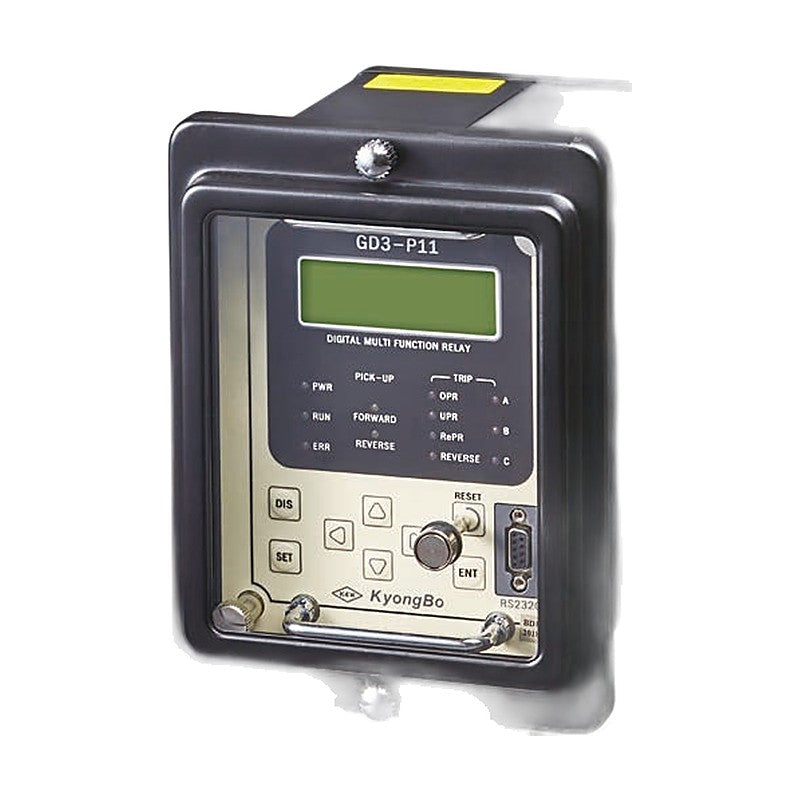

Kyongbo Electric Digital Reverse / Over / Under / Reactive Power Relay GD3-P11 (32P, 32U, 32Q)

Kyongbo Electric Digital Reverse / Over / Under / Reactive Power Relay GD3-P11 (32P, 32U, 32Q)

GD3-P11 is a digital relay based on the KEMC1120 standard with reverse power, over power, under power and reactive power elements for generator, motor, transmission line and distributed power supply protection.

Key features

  • Reverse power x3, over power x3, under power x3, reactive power x3 elements
  • Fault waveform and event recording

Specifications

Control Power AC/DC 110-220 V (free voltage)
Display Character LCD (4 lines x 20 characters)
Communication Modbus RTU, RS-485 1 port (rear), RS-232C 1 port (front)
Event Record Up to 1,024 events
Fault Waveform Record Up to 6 records
Dimensions (W x H x D) 168 x 218 x 250 mm
Weight approx. 5 kg
Applied Standard SPS-KEMC 1120-0579
GD3-P11 Functions: 32P, 32U, 32Q | Digital Input: 3 points, AC/DC 110-220 V | Trip Output: 1c x 3 (16 A at AC 250 V) | Alarm Output: 1a x 4, 1c x 1 (5 A at AC 250 V) | Analog Input: Current 3, voltage 3 | Rated Current: AC 5 A (10 A continuous) | Rated Voltage: AC 63.5-190 V
Digital Protective RelaysKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Digital Reverse / Over / Under / Reactive Power Relay GD3-P11 (32P, 32U, 32Q)

Brand Kyongbo Electric·Digital Protective Relays

Available part numbers (1)

GD3-P11

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GD3-P11Functions: 32P, 32U, 32Q | Digital Input: 3 points, AC/DC 110-220 V | Trip Output: 1c x 3 (16 A at AC 250 V) | Alarm Output: 1a x 4, 1c x 1 (5 A at AC 250 V) | Analog Input: Current 3, voltage 3 | Rated Current: AC 5 A (10 A continuous) | Rated Voltage: AC 63.5-190 V
