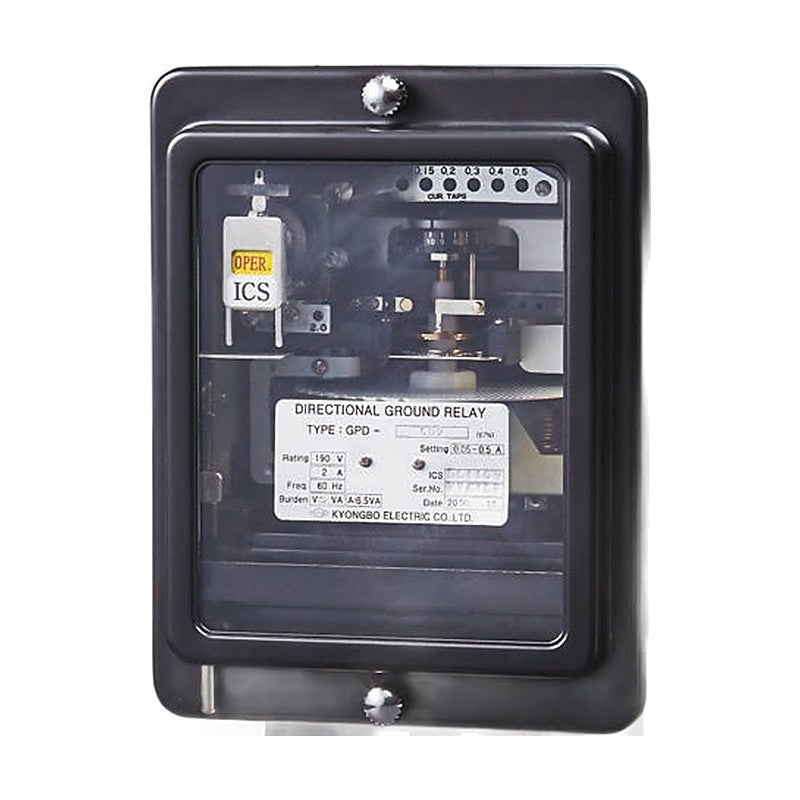

Kyongbo Electric Induction Directional Ground Relay GPD (DGR)

Kyongbo Electric Induction Directional Ground Relay GPD (DGR)

This relay operates on zero phase voltage and zero phase current and trips the circuit breaker via residual circuit (300/5 A or below) or tertiary winding CT circuit (400/5 A or above) on high-resistance grounded systems.

Key features

  • Zero phase voltage and current operation
  • ICS coil options: DC current 0.2/2.0 A, 0.5/2.0 A, 1.0 A; DC voltage 24/110/125 V; AC current 0.5/1.0/2.0 A; AC voltage 110/220 V

Specifications

Frequency 60 Hz (standard), 50 Hz (option)
Case Color Munsell N1.5
GPD-C9 Taps: 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.5 A | Rated Voltage: 190 V | Rated Current: 2 A | Max. Torque Angle: lead 10 deg | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 4 kg
GPD-CD9 Taps: 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.5 A | Rated Voltage: 190 V | Rated Current: 2 A | Max. Torque Angle: lead 10 deg | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 5 kg
GPD-C9D Taps: 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.5 A | Rated Voltage: 190 V | Rated Current: 2 A | Max. Torque Angle: lead 45 deg | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 4 kg
GPD-CD9D Taps: 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.5 A | Rated Voltage: 190 V | Rated Current: 2 A | Max. Torque Angle: lead 45 deg | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 5 kg
Induction Protective RelaysKyongbo Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Induction Directional Ground Relay GPD (DGR)

Brand Kyongbo Electric·Induction Protective Relays

Available part numbers (4)

GPD-C9, GPD-CD9, GPD-C9D, GPD-CD9D

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GPD-C9Taps: 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.5 A | Rated Voltage: 190 V | Rated Current: 2 A | Max. Torque Angle: lead 10 deg | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 4 kg
GPD-CD9Taps: 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.5 A | Rated Voltage: 190 V | Rated Current: 2 A | Max. Torque Angle: lead 10 deg | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 5 kg
GPD-C9DTaps: 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.5 A | Rated Voltage: 190 V | Rated Current: 2 A | Max. Torque Angle: lead 45 deg | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 4 kg
GPD-CD9DTaps: 0.05, 0.1, 0.15, 0.2, 0.3, 0.4, 0.5 A | Rated Voltage: 190 V | Rated Current: 2 A | Max. Torque Angle: lead 45 deg | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 5 kg
