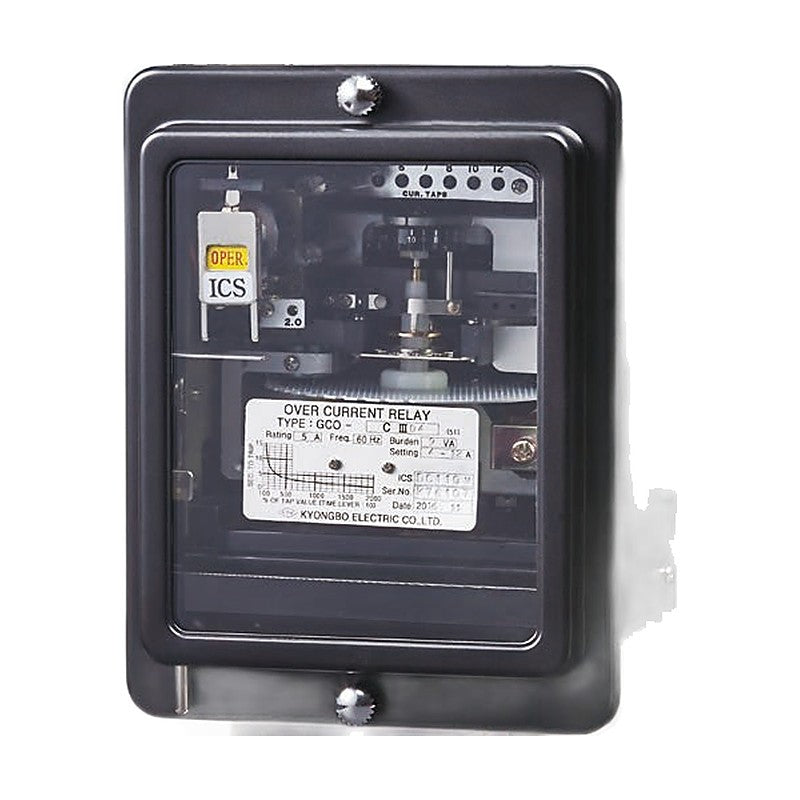

Kyongbo Electric Induction Over Current Relay GCO-C (Normally Open Contact)

Kyongbo Electric Induction Over Current Relay GCO-C (Normally Open Contact)

The GCO-C relay operates with time delay on current exceeding a given value to trip a DC-controlled circuit breaker, for short circuit protection of power lines and overload protection of AC equipment.

Key features

  • Inverse and very inverse time characteristics
  • Tap setting by plug position, time lever setting
  • Indicating contact switch (ICS) unit
  • ICS coil options: DC current 0.2/2.0 A, 0.5/2.0 A, 1.0 A; DC voltage 24/110/125 V; AC current 0.5/1.0/2.0 A; AC voltage 110/220 V

Specifications

Frequency 60 Hz (standard), 50 Hz (option)
Case Color Munsell N1.5
GCO-CⅢ4 Tap Range: 4-12 A | Taps: 4, 5, 6, 7, 8, 10, 12 A | Characteristic: Inverse | Rating: 5 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CⅢ3 Tap Range: 3-8 A | Taps: 3, 4, 5, 6, 8 A | Characteristic: Inverse | Rating: 5 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CⅢ2 Tap Range: 2-6 A | Taps: 2, 3, 4, 5, 6 A | Characteristic: Inverse | Rating: 5 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CⅡ4 Tap Range: 4-12 A | Taps: 4, 5, 6, 7, 8, 10, 12 A | Characteristic: Very inverse | Rating: 5 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CⅡ3 Tap Range: 3-8 A | Taps: 3, 4, 5, 6, 8 A | Characteristic: Very inverse | Rating: 5 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CⅡ2 Tap Range: 2-6 A | Taps: 2, 3, 4, 5, 6 A | Characteristic: Very inverse | Rating: 5 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CⅢD4 Tap Range: 4-12 A | Taps: 4, 5, 6, 7, 8, 10, 12 A | Characteristic: Inverse | Rating: 5 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CⅢD3 Tap Range: 3-8 A | Taps: 3, 4, 5, 6, 8 A | Characteristic: Inverse | Rating: 5 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CⅢD2 Tap Range: 2-6 A | Taps: 2, 3, 4, 5, 6 A | Characteristic: Inverse | Rating: 5 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CⅡD4 Tap Range: 4-12 A | Taps: 4, 5, 6, 7, 8, 10, 12 A | Characteristic: Very inverse | Rating: 5 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CⅡD3 Tap Range: 3-8 A | Taps: 3, 4, 5, 6, 8 A | Characteristic: Very inverse | Rating: 5 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CⅡD2 Tap Range: 2-6 A | Taps: 2, 3, 4, 5, 6 A | Characteristic: Very inverse | Rating: 5 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
