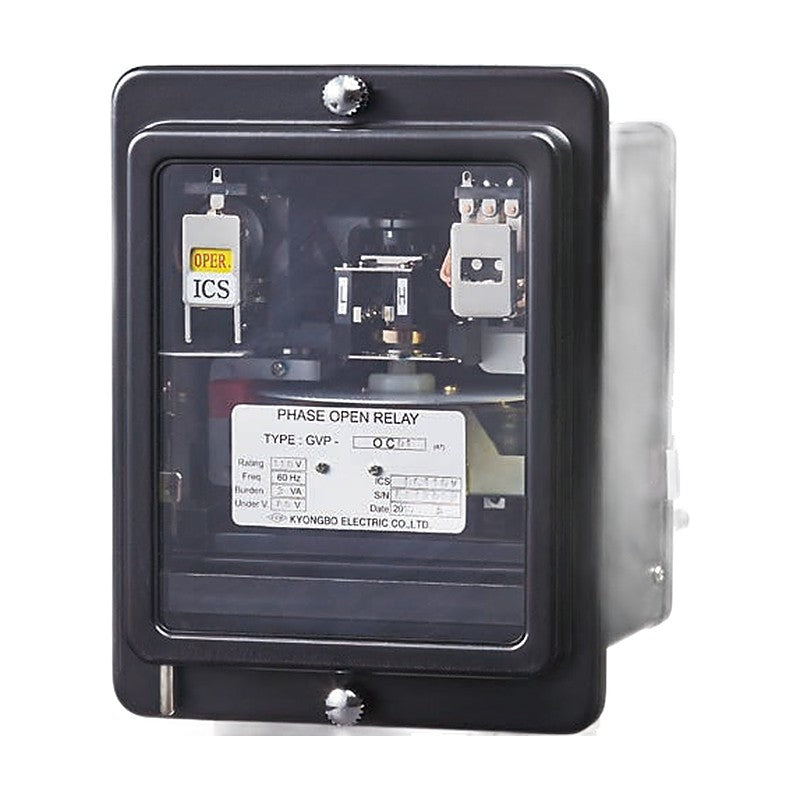

Kyongbo Electric Induction Phase Open Relay GVP

Kyongbo Electric Induction Phase Open Relay GVP

The phase open relay protects rotary machines against negative phase voltage, one phase open or under voltage faults in 3-phase circuits.

Key features

  • Phase open operating time 2 +/- 0.4 s
  • Reverse phase operating time 1 +/- 0.2 s
  • Under voltage below 80% of rated voltage
  • GVP-OC2 suited to 3-phase 220 V motor protection with auto/manual operation

Specifications

Frequency 60 Hz (standard), 50 Hz (option)
Case Color Munsell N1.5
GVP-OC1 Rating: 110 V | ICS Unit: AC/DC 110 V | Rated Burden: 3.0 VA | Case: Non-drawout | Weight: approx. 4 kg
GVP-OC9 Rating: 190 V | ICS Unit: AC/DC 110 V | Rated Burden: 6.0 VA | Case: Non-drawout | Weight: approx. 4 kg
GVP-OC2 Rating: 220 V | ICS Unit: AC/DC 110 V | Rated Burden: 6.0 VA | Case: Non-drawout | Weight: approx. 4 kg
GVP-OCD1 Rating: 110 V | ICS Unit: AC/DC 110 V | Rated Burden: 3.0 VA | Case: Drawout | Weight: approx. 5 kg
GVP-OCD9 Rating: 190 V | ICS Unit: AC/DC 110 V | Rated Burden: 6.0 VA | Case: Drawout | Weight: approx. 5 kg
GVP-OCD2 Rating: 220 V | ICS Unit: AC/DC 110 V | Rated Burden: 6.0 VA | Case: Drawout | Weight: approx. 5 kg
Induction Protective RelaysKyongbo Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Induction Phase Open Relay GVP

Brand Kyongbo Electric·Induction Protective Relays

Available part numbers (6)

GVP-OC1, GVP-OC9, GVP-OC2, GVP-OCD1, GVP-OCD9, GVP-OCD2

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GVP-OC1Rating: 110 V | ICS Unit: AC/DC 110 V | Rated Burden: 3.0 VA | Case: Non-drawout | Weight: approx. 4 kg
GVP-OC9Rating: 190 V | ICS Unit: AC/DC 110 V | Rated Burden: 6.0 VA | Case: Non-drawout | Weight: approx. 4 kg
GVP-OC2Rating: 220 V | ICS Unit: AC/DC 110 V | Rated Burden: 6.0 VA | Case: Non-drawout | Weight: approx. 4 kg
GVP-OCD1Rating: 110 V | ICS Unit: AC/DC 110 V | Rated Burden: 3.0 VA | Case: Drawout | Weight: approx. 5 kg
GVP-OCD9Rating: 190 V | ICS Unit: AC/DC 110 V | Rated Burden: 6.0 VA | Case: Drawout | Weight: approx. 5 kg
GVP-OCD2Rating: 220 V | ICS Unit: AC/DC 110 V | Rated Burden: 6.0 VA | Case: Drawout | Weight: approx. 5 kg
