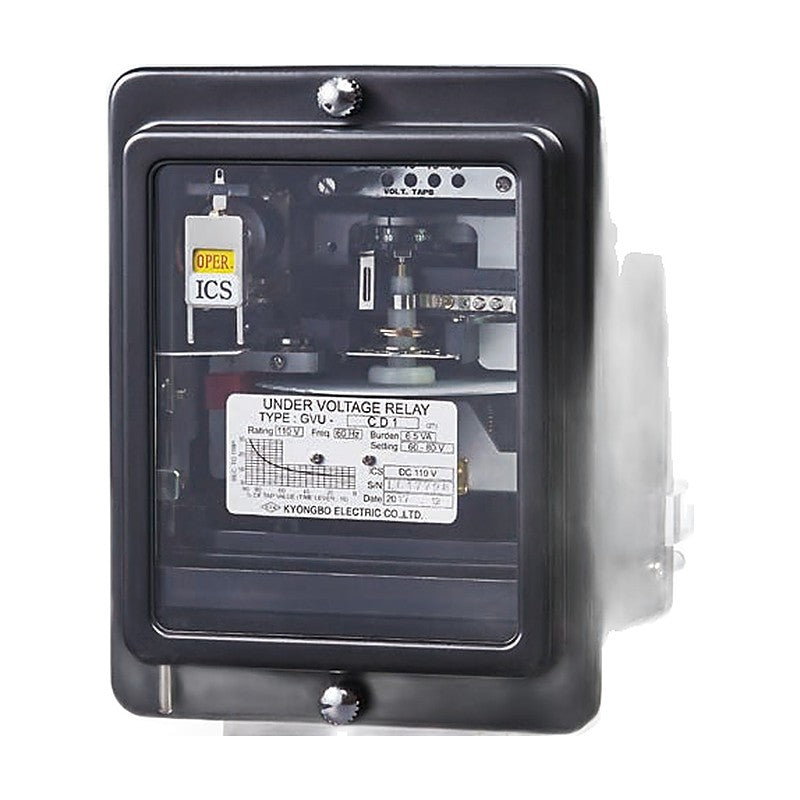

Kyongbo Electric Induction Under Voltage Relay GVU-C (Normally Open Contact)

Kyongbo Electric Induction Under Voltage Relay GVU-C (Normally Open Contact)

When voltage drops below a given value the main contact closes after a time delay to trip a circuit breaker; suitable for detecting abnormal voltage drop in AC circuits.

Key features

  • DC trip circuit
  • ICS coil options: DC current 0.2/2.0 A, 0.5/2.0 A, 1.0 A; DC voltage 24/110/125 V; AC current 0.5/1.0/2.0 A; AC voltage 110/220 V

Specifications

Frequency 60 Hz (standard), 50 Hz (option)
Case Color Munsell N1.5
GVU-C1 Rating: 110 V | Taps: 60, 65, 70, 75, 80 V | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GVU-C169 Rating: 110 V | Taps: 60, 65, 70, 75, 80, 85, 90 V | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GVU-C2 Rating: 220 V | Taps: 120, 130, 140, 150, 160 V | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GVU-C269 Rating: 220 V | Taps: 160, 165, 170, 175, 180, 185, 190 V | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GVU-CD1 Rating: 110 V | Taps: 60, 65, 70, 75, 80 V | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GVU-CD169 Rating: 110 V | Taps: 60, 65, 70, 75, 80, 85, 90 V | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GVU-CD2 Rating: 220 V | Taps: 120, 130, 140, 150, 160 V | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GVU-CD269 Rating: 220 V | Taps: 160, 165, 170, 175, 180, 185, 190 V | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
Induction Protective RelaysKyongbo Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Induction Under Voltage Relay GVU-C (Normally Open Contact)

Brand Kyongbo Electric·Induction Protective Relays

Available part numbers (8)

GVU-C1, GVU-C169, GVU-C2, GVU-C269, GVU-CD1, GVU-CD169, GVU-CD2, GVU-CD269

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GVU-C1Rating: 110 V | Taps: 60, 65, 70, 75, 80 V | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GVU-C169Rating: 110 V | Taps: 60, 65, 70, 75, 80, 85, 90 V | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GVU-C2Rating: 220 V | Taps: 120, 130, 140, 150, 160 V | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GVU-C269Rating: 220 V | Taps: 160, 165, 170, 175, 180, 185, 190 V | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GVU-CD1Rating: 110 V | Taps: 60, 65, 70, 75, 80 V | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GVU-CD169Rating: 110 V | Taps: 60, 65, 70, 75, 80, 85, 90 V | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GVU-CD2Rating: 220 V | Taps: 120, 130, 140, 150, 160 V | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GVU-CD269Rating: 220 V | Taps: 160, 165, 170, 175, 180, 185, 190 V | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
