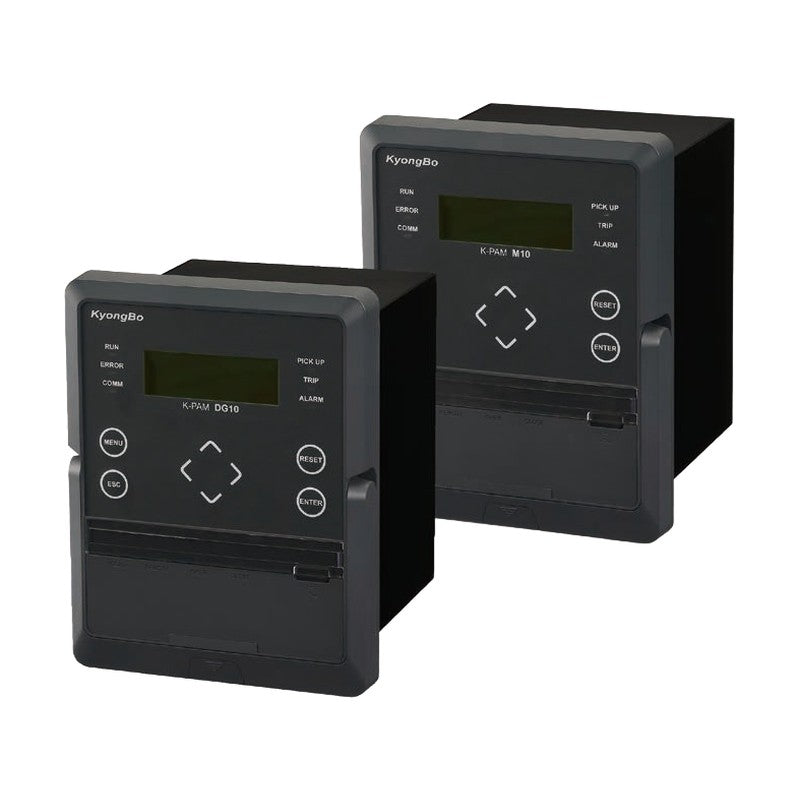

Kyongbo Electric K-PAM 10 Series Compact Digital Protective Relay

Kyongbo Electric K-PAM 10 Series Compact Digital Protective Relay

K-PAM 10 Series is a range of compact digital protective relays for transmission and distribution lines, generators, transformers, motors and distributed power systems.

Key features

  • Character LCD (4 lines x 20 characters)
  • Event and fault records with fault waveform storage
  • Remote central monitoring via Modbus RTU
  • Self-diagnosis
  • Protection, measurement, switches and indication lamps built into one relay

Specifications

Control Power AC/DC 110-220 V (free voltage)
Power Consumption Operating 50 W max, standby 30 W max
Frequency 50/60 Hz (programmable)
Display Character LCD 4 x 20
Digital Inputs 3, AC/DC 110-220 V
Digital Outputs Trip 1a x2 (16 A at AC250V), Alarm 1a x2 + 1b x1
Communication Modbus RTU, RS-485 1 port (rear), USB 1 port (front)
Records Event 512, Fault 32 (waveform max 4, 64 cycles, 1.06 s)
Standard KEMC1120
Dimensions (W x H x D) 170 x 218 x 189 mm
Weight approx. 5 kg
K-PAM DG10 Application: Distributed generation protection | Protection Elements: 50/51, 50/51N, 67, 67N, 59, 27, 64, 32P/Q, 37P, 81O, 81U, 81R, reverse wiring detection | Analog Inputs: 3 CT (5 A or 1 A), 1 ground CT, 3 VT (63.5-110 V), 1 ground VT (190 V)
K-PAM S10 Application: Single-phase protection | Protection Elements: 50/51, 50N/51N, 67N, 67G, 59, 27, 64, 32P/Q, 37P | Analog Inputs: 1 CT (5 A or 1 A), 1 ZCT (1.5 mA), 1 VT (63.5-190 V) | ZCT: ZS type (200 mA / 1.5 mA)
K-PAM V10 Application: Voltage protection | Protection Elements: 59, 27, 64, 47N, 47P, 81O, 81U, 81R, reverse wiring detection | Analog Inputs: 3 VT (63.5-110 V), 1 ground VT (190 V)
K-PAM F10 Application: Feeder protection | Protection Elements: 50/51, 50N/51N, 67N, 67G, 46U, 64, reverse wiring detection | Analog Inputs: 3 CT (5 A or 1 A), 1 ground CT, 1 ZCT (1.5 mA), 1 ground VT (190 V) | ZCT: ZS type (200 mA / 1.5 mA)
K-PAM M11 Application: Grounded motor protection | Protection Elements: 50/51, 50/51N, 46U, 37, 59, 27, 64, 47N, 48/51LR, 49, 66, reverse wiring detection | Analog Inputs: 3 CT (5 A or 1 A), 1 ground CT, 3 VT (63.5-110 V), 1 ground VT (190 V) | NCT: ZC type (5 A secondary)
K-PAM M10 Application: Ungrounded motor protection | Protection Elements: 50/51, 67G, 46U, 37, 59, 27, 64, 47N, 48/51LR, 49, 66, reverse wiring detection | Analog Inputs: 3 CT (5 A or 1 A), 1 ZCT (1.5 mA), 3 VT (63.5-110 V), 1 ground VT (190 V) | ZCT: ZS type (200 mA / 1.5 mA)
