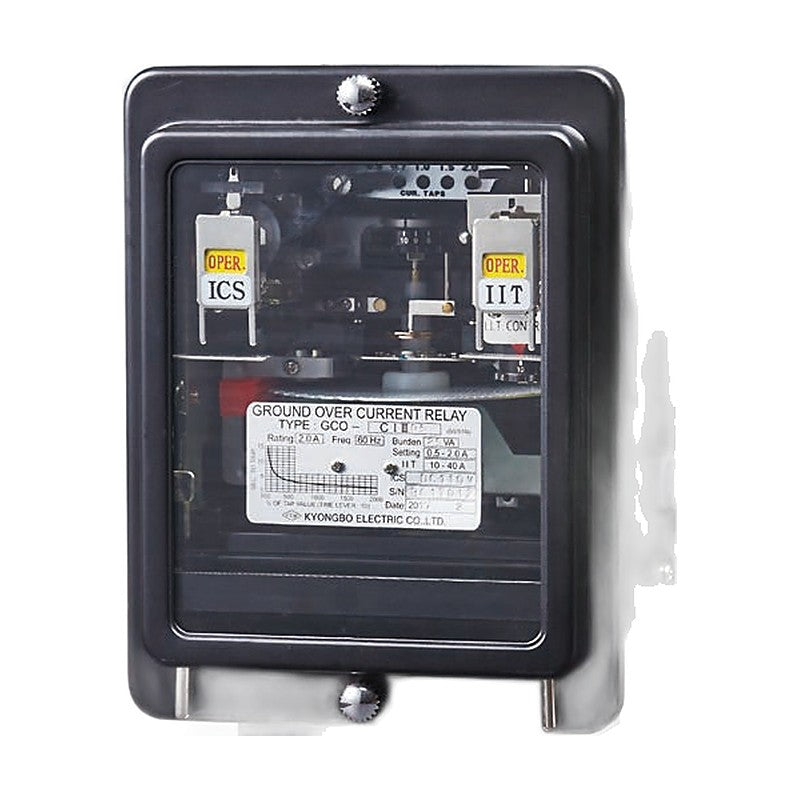

Kyongbo Electric Low Energy Ground Over Current Relay with Instantaneous Unit GCO-CI

Kyongbo Electric Low Energy Ground Over Current Relay with Instantaneous Unit GCO-CI

Operation and tripping method are the same as type GCO-C; this low-burden relay is suitable for ground fault protection, especially on solidly grounded neutral systems using BCTs.

Key features

  • Low burden for BCT use
  • Connect CT secondary to terminals 4 and 5; terminal 6 for testing only
  • ICS coil options: DC current 0.2/2.0 A, 0.5/2.0 A, 1.0 A; DC voltage 24/110/125 V; AC current 0.5/1.0/2.0 A; AC voltage 110/220 V

Specifications

Frequency 60 Hz (standard), 50 Hz (option)
Case Color Munsell N1.5
GCO-CIⅢ5 Tap Range: 0.5-2.0 A | Taps: 0.5, 0.7, 1.0, 1.5, 2.0 A | Characteristic: Inverse | Rating: 2 A | IIT Unit: 10-40 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CIⅢ1 Tap Range: 0.1-0.5 A | Taps: 0.1, 0.2, 0.3, 0.4, 0.5 A | Characteristic: Inverse | Rating: 0.4 A | IIT Unit: 4-16 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CIⅡ5 Tap Range: 0.5-2.0 A | Taps: 0.5, 0.7, 1.0, 1.5, 2.0 A | Characteristic: Very inverse | Rating: 2 A | IIT Unit: 10-40 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CIⅡ1 Tap Range: 0.1-0.5 A | Taps: 0.1, 0.2, 0.3, 0.4, 0.5 A | Characteristic: Very inverse | Rating: 0.5 A | IIT Unit: 10-40 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CIⅢD5 Tap Range: 0.5-2.0 A | Taps: 0.5, 0.7, 1.0, 1.5, 2.0 A | Characteristic: Inverse | Rating: 2 A | IIT Unit: 10-40 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CIⅢD1 Tap Range: 0.1-0.5 A | Taps: 0.1, 0.2, 0.3, 0.4, 0.5 A | Characteristic: Inverse | Rating: 0.4 A | IIT Unit: 4-16 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CIⅡD5 Tap Range: 0.5-2.0 A | Taps: 0.5, 0.7, 1.0, 1.5, 2.0 A | Characteristic: Very inverse | Rating: 2 A | IIT Unit: 10-40 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CIⅡD1 Tap Range: 0.1-0.5 A | Taps: 0.1, 0.2, 0.3, 0.4, 0.5 A | Characteristic: Very inverse | Rating: 0.5 A | IIT Unit: 10-40 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
Induction Protective RelaysKyongbo Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Low Energy Ground Over Current Relay with Instantaneous Unit GCO-CI

Brand Kyongbo Electric·Induction Protective Relays

Available part numbers (8)

GCO-CIⅢ5, GCO-CIⅢ1, GCO-CIⅡ5, GCO-CIⅡ1, GCO-CIⅢD5, GCO-CIⅢD1, GCO-CIⅡD5, GCO-CIⅡD1

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GCO-CIⅢ5Tap Range: 0.5-2.0 A | Taps: 0.5, 0.7, 1.0, 1.5, 2.0 A | Characteristic: Inverse | Rating: 2 A | IIT Unit: 10-40 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CIⅢ1Tap Range: 0.1-0.5 A | Taps: 0.1, 0.2, 0.3, 0.4, 0.5 A | Characteristic: Inverse | Rating: 0.4 A | IIT Unit: 4-16 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CIⅡ5Tap Range: 0.5-2.0 A | Taps: 0.5, 0.7, 1.0, 1.5, 2.0 A | Characteristic: Very inverse | Rating: 2 A | IIT Unit: 10-40 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CIⅡ1Tap Range: 0.1-0.5 A | Taps: 0.1, 0.2, 0.3, 0.4, 0.5 A | Characteristic: Very inverse | Rating: 0.5 A | IIT Unit: 10-40 A | ICS Unit: DC 1.0 A | Case: Non-drawout | Weight: approx. 3 kg
GCO-CIⅢD5Tap Range: 0.5-2.0 A | Taps: 0.5, 0.7, 1.0, 1.5, 2.0 A | Characteristic: Inverse | Rating: 2 A | IIT Unit: 10-40 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CIⅢD1Tap Range: 0.1-0.5 A | Taps: 0.1, 0.2, 0.3, 0.4, 0.5 A | Characteristic: Inverse | Rating: 0.4 A | IIT Unit: 4-16 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CIⅡD5Tap Range: 0.5-2.0 A | Taps: 0.5, 0.7, 1.0, 1.5, 2.0 A | Characteristic: Very inverse | Rating: 2 A | IIT Unit: 10-40 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
GCO-CIⅡD1Tap Range: 0.1-0.5 A | Taps: 0.1, 0.2, 0.3, 0.4, 0.5 A | Characteristic: Very inverse | Rating: 0.5 A | IIT Unit: 10-40 A | ICS Unit: DC 0.5/2.0 A | Case: Drawout | Weight: approx. 4 kg
