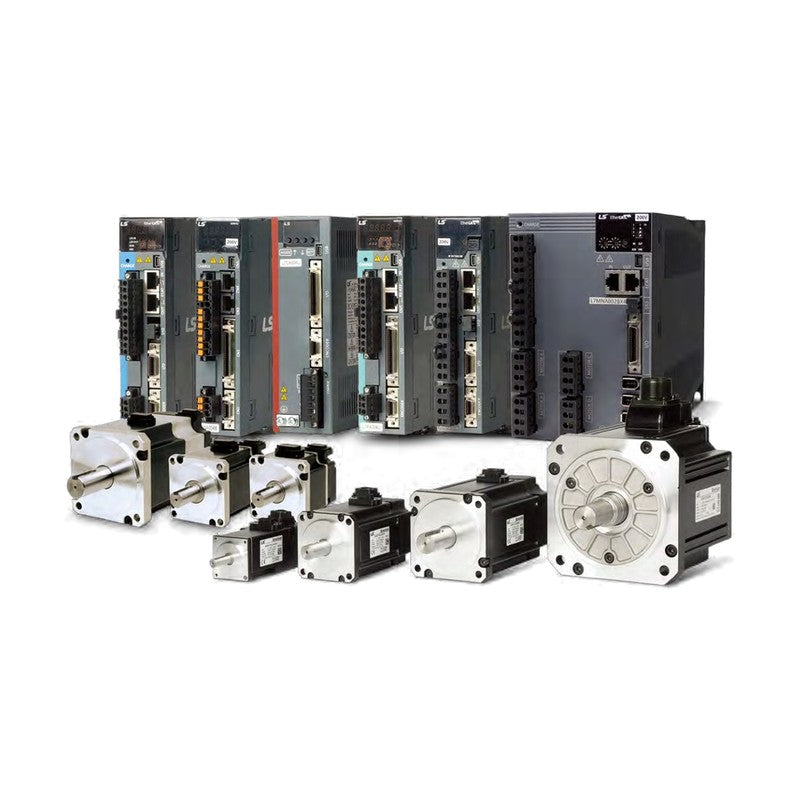

LS Electric APM-E Servo Motors 400V (180 mm, 1.2-7.5 kW)

LS Electric APM-E Servo Motors 400V (180 mm, 1.2-7.5 kW)

LS Electric Xmotion APM-E 400V servo motors with 180 mm flange (EFP), 1.2 to 7.5 kW, for L7NHB, L7PB and L7SB drives.

Key features

  • High-resolution serial absolute encoder: 23-bit (M3) or 20-bit batteryless (L), both with 16-bit multi-turn
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Full order code = base model + encoder + shaft + option, e.g. APM-EB04AM3K2
  • Matched to Xmotion 400V L7NHB, L7PB and L7SB drives
  • Totally enclosed self-cooled design, continuous duty, vibration resistance 49 m/s2 (5G)

Specifications

Motor series APM-E (Xmotion E series)
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 10x (130 mm) / 5x (180 mm) motor inertia
Holding brake DC 24 V, 40 N.m
Ambient 0 to 40 C, 80% RH max, non-condensing
Vibration 49 m/s2 (5G)
Flange 180 mm square
Voltage 400 VAC class
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 82, 90-93, 96-97
APM-EFP30A Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP30AM3K Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30AM3K1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30AM3K2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30AM3K3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30AM3N Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP30AM3N1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30AM3N2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP30AM3N3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30ALK Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30ALK1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30ALK2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30ALK3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30ALN Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP30ALN1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30ALN2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP30ALN3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP50A Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP50AM3K Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP50AM3K1 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP50AM3K2 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP50AM3K3 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP50AM3N Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP50AM3N1 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP50AM3N2 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP50AM3N3 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP50ALK Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP50ALK1 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP50ALK2 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP50ALK3 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP50ALN Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP50ALN1 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP50ALN2 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP50ALN3 Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP22DM3K Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP22DM3K1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP22DM3K2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP22DM3K3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP22DM3N Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP22DM3N1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP22DM3N2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP22DM3N3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP22DLK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP22DLK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP22DLK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP22DLK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP22DLN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP22DLN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP22DLN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP22DLN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP35D Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP35DM3K Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP35DM3K1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP35DM3K2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP35DM3K3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP35DM3N Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP35DM3N1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP35DM3N2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP35DM3N3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP35DLK Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP35DLK1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP35DLK2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP35DLK3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP35DLN Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP35DLN1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP35DLN2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP35DLN3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP55D Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP55DM3K Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP55DM3K1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP55DM3K2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP55DM3K3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP55DM3N Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP55DM3N1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP55DM3N2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP55DM3N3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP55DLK Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP55DLK1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP55DLK2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP55DLK3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP55DLN Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP55DLN1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP55DLN2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP55DLN3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP75D Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP75DM3K Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP75DM3K1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP75DM3K2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP75DM3K3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP75DM3N Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP75DM3N1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP75DM3N2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP75DM3N3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP75DLK Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP75DLK1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP75DLK2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP75DLK3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP75DLN Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP75DLN1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP75DLN2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP75DLN3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP20G Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP20GM3K Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP20GM3K1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP20GM3K2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP20GM3K3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP20GM3N Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP20GM3N1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP20GM3N2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP20GM3N3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP20GLK Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP20GLK1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP20GLK2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP20GLK3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP20GLN Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP20GLN1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP20GLN2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP20GLN3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30G Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP30GM3K Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30GM3K1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30GM3K2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30GM3K3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30GM3N Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP30GM3N1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30GM3N2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP30GM3N3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30GLK Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30GLK1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30GLK2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30GLK3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30GLN Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP30GLN1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30GLN2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP30GLN3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP44G Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP44GM3K Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP44GM3K1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP44GM3K2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP44GM3K3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP44GM3N Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP44GM3N1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP44GM3N2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP44GM3N3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP44GLK Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP44GLK1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP44GLK2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP44GLK3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP44GLN Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP44GLN1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP44GLN2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP44GLN3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP60G Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP60GM3K Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP60GM3K1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP60GM3K2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP60GM3K3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP60GM3N Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP60GM3N1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP60GM3N2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP60GM3N3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP60GLK Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP60GLK1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP60GLK2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP60GLK3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP60GLN Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP60GLN1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP60GLN2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP60GLN3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP75G Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP75GM3K Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP75GM3K1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP75GM3K2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP75GM3K3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP75GM3N Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP75GM3N1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP75GM3N2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP75GM3N3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP75GLK Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP75GLK1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP75GLK2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP75GLK3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP75GLN Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP75GLN1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP75GLN2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP75GLN3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP12M Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP12MM3K Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP12MM3K1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP12MM3K2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP12MM3K3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP12MM3N Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP12MM3N1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP12MM3N2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP12MM3N3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP12MLK Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP12MLK1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP12MLK2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP12MLK3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP12MLN Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP12MLN1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP12MLN2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP12MLN3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP20M Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP20MM3K Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP20MM3K1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP20MM3K2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP20MM3K3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP20MM3N Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP20MM3N1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP20MM3N2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP20MM3N3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP20MLK Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP20MLK1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP20MLK2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP20MLK3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP20MLN Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP20MLN1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP20MLN2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP20MLN3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30M Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP30MM3K Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30MM3K1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30MM3K2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30MM3K3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30MM3N Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP30MM3N1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30MM3N2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP30MM3N3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30MLK Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30MLK1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30MLK2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30MLK3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30MLN Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP30MLN1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30MLN2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP30MLN3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP44M Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP44MM3K Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP44MM3K1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP44MM3K2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP44MM3K3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP44MM3N Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP44MM3N1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP44MM3N2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP44MM3N3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP44MLK Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP44MLK1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP44MLK2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP44MLK3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP44MLN Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP44MLN1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP44MLN2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP44MLN3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP60M Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP60MM3K Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP60MM3K1 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP60MM3K2 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP60MM3K3 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP60MM3N Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP60MM3N1 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP60MM3N2 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP60MM3N3 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP60MLK Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP60MLK1 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP60MLK2 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP60MLK3 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP60MLN Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP60MLN1 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP60MLN2 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP60MLN3 Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
272 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-E Servo Motors 400V (180 mm, 1.2-7.5 kW)

Brand LS Electric·Servo Motors

Available part numbers (272)

APM-EFP30A, APM-EFP30AM3K, APM-EFP30AM3K1, APM-EFP30AM3K2, APM-EFP30AM3K3, APM-EFP30AM3N, APM-EFP30AM3N1, APM-EFP30AM3N2, APM-EFP30AM3N3, APM-EFP30ALK + 262 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-EFP30ARating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP30AM3KRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30AM3K1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30AM3K2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30AM3K3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30AM3NRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP30AM3N1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30AM3N2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP30AM3N3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30ALKRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30ALK1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30ALK2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30ALK3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30ALNRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP30ALN1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30ALN2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP30ALN3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP50ARating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP50AM3KRating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP50AM3K1Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP50AM3K2Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP50AM3K3Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP50AM3NRating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP50AM3N1Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP50AM3N2Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP50AM3N3Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP50ALKRating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP50ALK1Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP50ALK2Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP50ALK3Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP50ALNRating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP50ALN1Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP50ALN2Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP50ALN3Rating: 5 kW / 15.92 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP22DM3KRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP22DM3K1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP22DM3K2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP22DM3K3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP22DM3NRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP22DM3N1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP22DM3N2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP22DM3N3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP22DLKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP22DLK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP22DLK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP22DLK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP22DLNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP22DLN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP22DLN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP22DLN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP35DRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP35DM3KRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP35DM3K1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP35DM3K2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP35DM3K3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP35DM3NRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP35DM3N1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP35DM3N2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP35DM3N3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP35DLKRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP35DLK1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP35DLK2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP35DLK3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP35DLNRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP35DLN1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP35DLN2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP35DLN3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP55DRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP55DM3KRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP55DM3K1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP55DM3K2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP55DM3K3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP55DM3NRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP55DM3N1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP55DM3N2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP55DM3N3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP55DLKRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP55DLK1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP55DLK2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP55DLK3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP55DLNRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP55DLN1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP55DLN2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP55DLN3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP75DRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP75DM3KRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP75DM3K1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP75DM3K2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP75DM3K3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP75DM3NRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP75DM3N1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP75DM3N2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP75DM3N3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP75DLKRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP75DLK1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP75DLK2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP75DLK3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP75DLNRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP75DLN1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP75DLN2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP75DLN3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP20GRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP20GM3KRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP20GM3K1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP20GM3K2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP20GM3K3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP20GM3NRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP20GM3N1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP20GM3N2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP20GM3N3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP20GLKRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP20GLK1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP20GLK2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP20GLK3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP20GLNRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP20GLN1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP20GLN2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP20GLN3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30GRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP30GM3KRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30GM3K1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30GM3K2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30GM3K3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30GM3NRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP30GM3N1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30GM3N2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP30GM3N3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30GLKRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30GLK1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30GLK2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30GLK3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30GLNRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP30GLN1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30GLN2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP30GLN3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP44GRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP44GM3KRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP44GM3K1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP44GM3K2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP44GM3K3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP44GM3NRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP44GM3N1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP44GM3N2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP44GM3N3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP44GLKRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP44GLK1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP44GLK2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP44GLK3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP44GLNRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP44GLN1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP44GLN2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP44GLN3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP60GRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP60GM3KRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP60GM3K1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP60GM3K2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP60GM3K3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP60GM3NRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP60GM3N1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP60GM3N2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP60GM3N3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP60GLKRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP60GLK1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP60GLK2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP60GLK3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP60GLNRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP60GLN1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP60GLN2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP60GLN3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP75GRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP75GM3KRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP75GM3K1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP75GM3K2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP75GM3K3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP75GM3NRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP75GM3N1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP75GM3N2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP75GM3N3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP75GLKRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP75GLK1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP75GLK2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP75GLK3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP75GLNRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP75GLN1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP75GLN2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP75GLN3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP12MRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP12MM3KRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP12MM3K1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP12MM3K2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP12MM3K3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP12MM3NRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP12MM3N1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP12MM3N2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP12MM3N3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP12MLKRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP12MLK1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP12MLK2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP12MLK3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP12MLNRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP12MLN1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP12MLN2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP12MLN3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP20MRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP20MM3KRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP20MM3K1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP20MM3K2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP20MM3K3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP20MM3NRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP20MM3N1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP20MM3N2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP20MM3N3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP20MLKRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP20MLK1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP20MLK2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP20MLK3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP20MLNRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP20MLN1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP20MLN2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP20MLN3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30MRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP30MM3KRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30MM3K1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30MM3K2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30MM3K3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30MM3NRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP30MM3N1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30MM3N2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP30MM3N3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP30MLKRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP30MLK1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP30MLK2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP30MLK3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP30MLNRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP30MLN1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP30MLN2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP30MLN3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP44MRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP44MM3KRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP44MM3K1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP44MM3K2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP44MM3K3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP44MM3NRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP44MM3N1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP44MM3N2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP44MM3N3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP44MLKRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP44MLK1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP44MLK2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP44MLK3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP44MLNRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP44MLN1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP44MLN2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP44MLN3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP60MRating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EFP60MM3KRating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP60MM3K1Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP60MM3K2Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP60MM3K3Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP60MM3NRating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EFP60MM3N1Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP60MM3N2Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EFP60MM3N3Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EFP60MLKRating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EFP60MLK1Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EFP60MLK2Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EFP60MLK3Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EFP60MLNRating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EFP60MLN1Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EFP60MLN2Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EFP60MLN3Rating: 6 kW / 52.52 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
