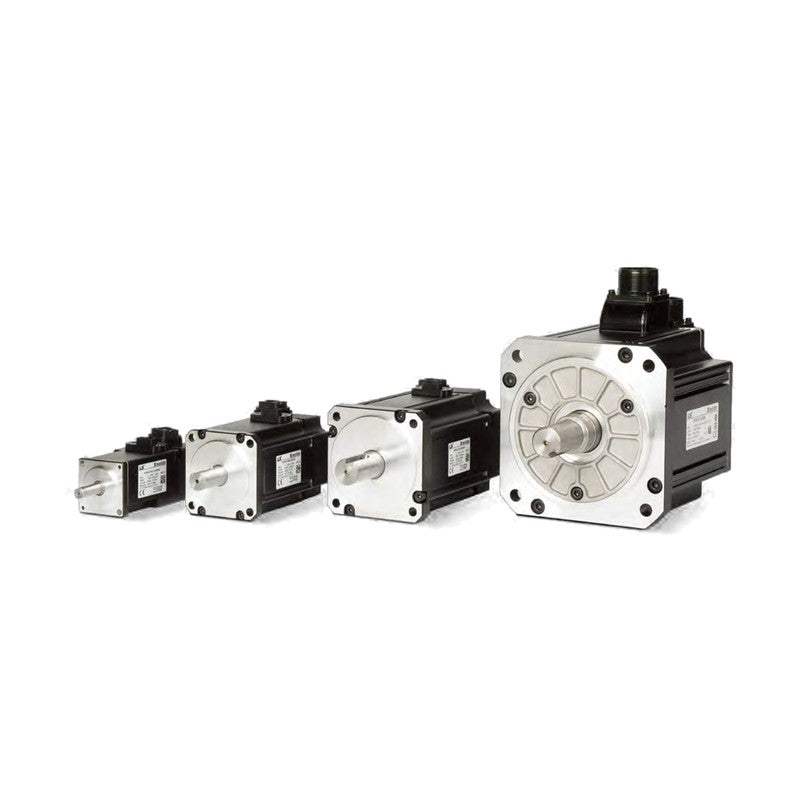

LS Electric APM-F Servo Motors 200V (220 mm, 1.2-15 kW)

LS Electric APM-F Servo Motors 200V (220 mm, 1.2-15 kW)

LS Electric Xmotion APM-F 200V flat servo motors with 220 mm flange (FG), 1.2 to 15 kW at 1,000-3,000 rpm, for iX7NH, L7NHA, L7PA, L7SA drives.

Key features

  • Flat-type Xmotion F series; full order code = base model + encoder + shaft + option (e.g. APM-FEP09AMK2)
  • Serial absolute encoder 19-bit with 16-bit multi-turn as standard
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Totally enclosed self-cooled, continuous duty, vibration resistance 49 m/s2 (5G)
  • Matched to Xmotion iX7NH, L7NHA, L7PA, L7SA drives

Specifications

Motor series APM-F (Xmotion F series, made in Korea)
Voltage 200 VAC class
Flange 220 mm square
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 5x motor inertia
Holding brake DC 24 V, 74 N.m (FG110G/150G: 120 N.m)
Ambient 0 to 40 C, 80% RH max, non-condensing
Encoder note M3 23-bit only for 110D, 110G, 150G
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 98, 102-104, 112, 118
APM-FG22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG22DMK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG22DMK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG22DMK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG22DMK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG22DMN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG22DMN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG22DMN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG22DMN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG35D Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG35DMK Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG35DMK1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG35DMK2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG35DMK3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG35DMN Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG35DMN1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG35DMN2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG35DMN3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG55D Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG55DMK Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG55DMK1 Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG55DMK2 Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG55DMK3 Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG55DMN Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG55DMN1 Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG55DMN2 Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG55DMN3 Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG75D Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG75DMK Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG75DMK1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG75DMK2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG75DMK3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG75DMN Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG75DMN1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG75DMN2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG75DMN3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG110D Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG110DMK Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG110DMK1 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG110DMK2 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG110DMK3 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG110DMN Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG110DMN1 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG110DMN2 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG110DMN3 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG110DM3K Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG110DM3K1 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG110DM3K2 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG110DM3K3 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG110DM3N Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG110DM3N1 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG110DM3N2 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG110DM3N3 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG20G Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG20GMK Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG20GMK1 Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG20GMK2 Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG20GMK3 Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG20GMN Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG20GMN1 Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG20GMN2 Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG20GMN3 Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG30G Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG30GMK Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG30GMK1 Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG30GMK2 Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG30GMK3 Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG30GMN Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG30GMN1 Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG30GMN2 Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG30GMN3 Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG44G Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG44GMK Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG44GMK1 Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG44GMK2 Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG44GMK3 Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG44GMN Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG44GMN1 Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG44GMN2 Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG44GMN3 Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG60G Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG60GMK Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG60GMK1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG60GMK2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG60GMK3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG60GMN Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG60GMN1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG60GMN2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG60GMN3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG85G Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG85GMK Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG85GMK1 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG85GMK2 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG85GMK3 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG85GMN Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG85GMN1 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG85GMN2 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG85GMN3 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG110G Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG110GMK Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG110GMK1 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG110GMK2 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG110GMK3 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG110GMN Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG110GMN1 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG110GMN2 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG110GMN3 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG110GM3K Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG110GM3K1 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG110GM3K2 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG110GM3K3 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG110GM3N Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG110GM3N1 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG110GM3N2 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG110GM3N3 Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG150G Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG150GMK Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG150GMK1 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG150GMK2 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG150GMK3 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG150GMN Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG150GMN1 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG150GMN2 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG150GMN3 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG150GM3K Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG150GM3K1 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG150GM3K2 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG150GM3K3 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG150GM3N Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG150GM3N1 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG150GM3N2 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG150GM3N3 Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG12M Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG12MMK Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG12MMK1 Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG12MMK2 Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG12MMK3 Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG12MMN Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG12MMN1 Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG12MMN2 Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG12MMN3 Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG20M Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG20MMK Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG20MMK1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG20MMK2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG20MMK3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG20MMN Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG20MMN1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG20MMN2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG20MMN3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG30M Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG30MMK Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG30MMK1 Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG30MMK2 Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG30MMK3 Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG30MMN Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG30MMN1 Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG30MMN2 Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG30MMN3 Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG44M Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG44MMK Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG44MMK1 Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG44MMK2 Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG44MMK3 Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG44MMN Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG44MMN1 Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG44MMN2 Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG44MMN3 Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG60M Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG60MMK Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG60MMK1 Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG60MMK2 Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG60MMK3 Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG60MMN Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG60MMN1 Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG60MMN2 Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG60MMN3 Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
177 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-F Servo Motors 200V (220 mm, 1.2-15 kW)

Brand LS Electric·Servo Motors

Available part numbers (177)

APM-FG22D, APM-FG22DMK, APM-FG22DMK1, APM-FG22DMK2, APM-FG22DMK3, APM-FG22DMN, APM-FG22DMN1, APM-FG22DMN2, APM-FG22DMN3, APM-FG35D + 167 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-FG22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG22DMKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG22DMK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG22DMK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG22DMK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG22DMNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG22DMN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG22DMN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG22DMN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG35DRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG35DMKRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG35DMK1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG35DMK2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG35DMK3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG35DMNRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG35DMN1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG35DMN2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG35DMN3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG55DRating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG55DMKRating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG55DMK1Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG55DMK2Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG55DMK3Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG55DMNRating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG55DMN1Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG55DMN2Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG55DMN3Rating: 5.5 kW / 26.25 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG75DRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG75DMKRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG75DMK1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG75DMK2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG75DMK3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG75DMNRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG75DMN1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG75DMN2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG75DMN3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG110DRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG110DMKRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG110DMK1Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG110DMK2Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG110DMK3Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG110DMNRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG110DMN1Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG110DMN2Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG110DMN3Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG110DM3KRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG110DM3K1Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG110DM3K2Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG110DM3K3Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG110DM3NRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG110DM3N1Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG110DM3N2Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG110DM3N3Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG20GRating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG20GMKRating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG20GMK1Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG20GMK2Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG20GMK3Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG20GMNRating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG20GMN1Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG20GMN2Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG20GMN3Rating: 1.8 kW / 11.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG30GRating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG30GMKRating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG30GMK1Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG30GMK2Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG30GMK3Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG30GMNRating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG30GMN1Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG30GMN2Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG30GMN3Rating: 2.9 kW / 18.5 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG44GRating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG44GMKRating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG44GMK1Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG44GMK2Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG44GMK3Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG44GMNRating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG44GMN1Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG44GMN2Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG44GMN3Rating: 4.4 kW / 28 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG60GRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG60GMKRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG60GMK1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG60GMK2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG60GMK3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG60GMNRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG60GMN1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG60GMN2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG60GMN3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG85GRating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG85GMKRating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG85GMK1Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG85GMK2Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG85GMK3Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG85GMNRating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG85GMN1Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG85GMN2Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG85GMN3Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG110GRating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG110GMKRating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG110GMK1Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG110GMK2Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG110GMK3Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG110GMNRating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG110GMN1Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG110GMN2Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG110GMN3Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG110GM3KRating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG110GM3K1Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG110GM3K2Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG110GM3K3Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG110GM3NRating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG110GM3N1Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG110GM3N2Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG110GM3N3Rating: 11 kW / 69.99 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG150GRating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG150GMKRating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG150GMK1Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG150GMK2Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG150GMK3Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG150GMNRating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG150GMN1Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG150GMN2Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG150GMN3Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG150GM3KRating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG150GM3K1Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG150GM3K2Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG150GM3K3Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG150GM3NRating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG150GM3N1Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG150GM3N2Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG150GM3N3Rating: 15 kW / 95.45 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG12MRating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG12MMKRating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG12MMK1Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG12MMK2Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG12MMK3Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG12MMNRating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG12MMN1Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG12MMN2Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG12MMN3Rating: 1.2 kW / 11.5 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG20MRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG20MMKRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG20MMK1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG20MMK2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG20MMK3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG20MMNRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG20MMN1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG20MMN2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG20MMN3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG30MRating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG30MMKRating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG30MMK1Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG30MMK2Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG30MMK3Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG30MMNRating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG30MMN1Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG30MMN2Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG30MMN3Rating: 3 kW / 28.6 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG44MRating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG44MMKRating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG44MMK1Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG44MMK2Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG44MMK3Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG44MMNRating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG44MMN1Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG44MMN2Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG44MMN3Rating: 4.4 kW / 42 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FG60MRating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FG60MMKRating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FG60MMK1Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FG60MMK2Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FG60MMK3Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FG60MMNRating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FG60MMN1Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FG60MMN2Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FG60MMN3Rating: 6 kW / 57.29 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
