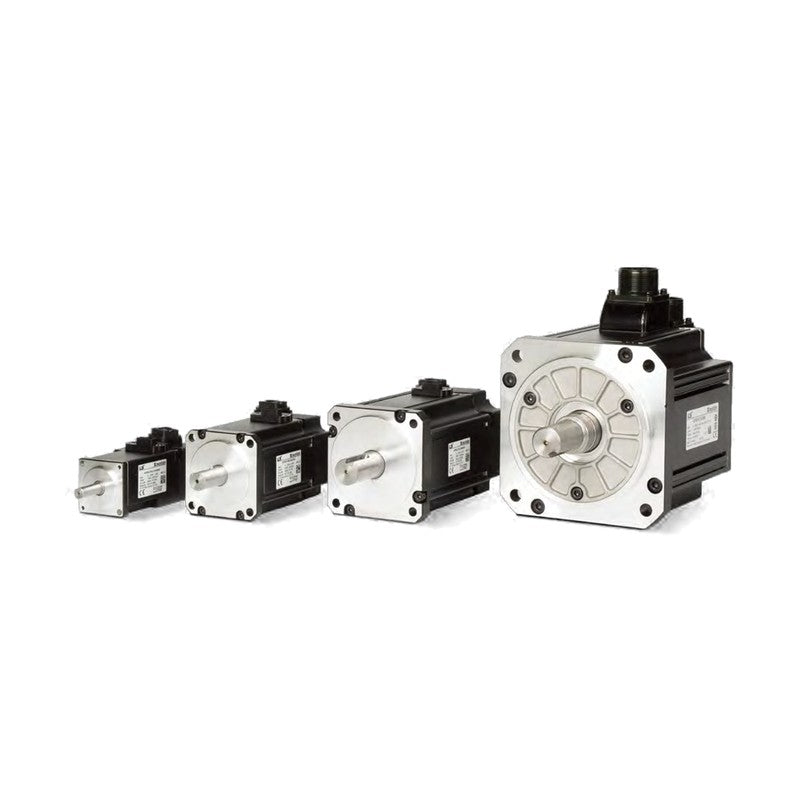

LS Electric APM-F Servo Motors 400V (220 mm, 1.2-15 kW)

LS Electric APM-F Servo Motors 400V (220 mm, 1.2-15 kW)

LS Electric Xmotion APM-F 400V flat servo motors with 220 mm flange (FGP), 1.2 to 15 kW at 1,000-3,000 rpm, for L7NHB, L7PB, L7SB drives.

Key features

  • Flat-type Xmotion F series; full order code = base model + encoder + shaft + option (e.g. APM-FEP09AMK2)
  • Serial absolute encoder 19-bit with 16-bit multi-turn as standard
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Totally enclosed self-cooled, continuous duty, vibration resistance 49 m/s2 (5G)
  • Matched to Xmotion L7NHB, L7PB, L7SB drives

Specifications

Motor series APM-F (Xmotion F series, made in Korea)
Voltage 400 VAC class
Flange 220 mm square
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 5x motor inertia
Holding brake DC 24 V, 74 N.m (FGP110G/150G: 120 N.m)
Ambient 0 to 40 C, 80% RH max, non-condensing
Encoder note M3 23-bit only for 110D, 110G, 150G
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 98, 106-108, 112, 118
APM-FGP22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP22DMK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP22DMK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP22DMK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP22DMK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP22DMN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP22DMN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP22DMN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP22DMN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP35D Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP35DMK Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP35DMK1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP35DMK2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP35DMK3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP35DMN Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP35DMN1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP35DMN2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP35DMN3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP55D Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP55DMK Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP55DMK1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP55DMK2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP55DMK3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP55DMN Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP55DMN1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP55DMN2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP55DMN3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP75D Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP75DMK Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP75DMK1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP75DMK2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP75DMK3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP75DMN Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP75DMN1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP75DMN2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP75DMN3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP110D Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP110DMK Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP110DMK1 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP110DMK2 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP110DMK3 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP110DMN Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP110DMN1 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP110DMN2 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP110DMN3 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP110DM3K Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP110DM3K1 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP110DM3K2 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP110DM3K3 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP110DM3N Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP110DM3N1 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP110DM3N2 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP110DM3N3 Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP20G Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP20GMK Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP20GMK1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP20GMK2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP20GMK3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP20GMN Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP20GMN1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP20GMN2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP20GMN3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP30G Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP30GMK Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP30GMK1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP30GMK2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP30GMK3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP30GMN Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP30GMN1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP30GMN2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP30GMN3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP44G Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP44GMK Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP44GMK1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP44GMK2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP44GMK3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP44GMN Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP44GMN1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP44GMN2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP44GMN3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP60G Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP60GMK Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP60GMK1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP60GMK2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP60GMK3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP60GMN Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP60GMN1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP60GMN2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP60GMN3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP85G Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP85GMK Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP85GMK1 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP85GMK2 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP85GMK3 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP85GMN Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP85GMN1 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP85GMN2 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP85GMN3 Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP110G Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP110GMK Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP110GMK1 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP110GMK2 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP110GMK3 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP110GMN Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP110GMN1 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP110GMN2 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP110GMN3 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP110GM3K Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP110GM3K1 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP110GM3K2 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP110GM3K3 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP110GM3N Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP110GM3N1 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP110GM3N2 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP110GM3N3 Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP150G Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP150GMK Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP150GMK1 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP150GMK2 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP150GMK3 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP150GMN Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP150GMN1 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP150GMN2 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP150GMN3 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP150GM3K Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP150GM3K1 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP150GM3K2 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP150GM3K3 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP150GM3N Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP150GM3N1 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP150GM3N2 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP150GM3N3 Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP12M Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP12MMK Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP12MMK1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP12MMK2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP12MMK3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP12MMN Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP12MMN1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP12MMN2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP12MMN3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP20M Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP20MMK Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP20MMK1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP20MMK2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP20MMK3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP20MMN Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP20MMN1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP20MMN2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP20MMN3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP30M Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP30MMK Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP30MMK1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP30MMK2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP30MMK3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP30MMN Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP30MMN1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP30MMN2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP30MMN3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP44M Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP44MMK Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP44MMK1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP44MMK2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP44MMK3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP44MMN Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP44MMN1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP44MMN2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP44MMN3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP60M Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP60MMK Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP60MMK1 Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP60MMK2 Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP60MMK3 Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP60MMN Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP60MMN1 Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP60MMN2 Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP60MMN3 Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
177 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-F Servo Motors 400V (220 mm, 1.2-15 kW)

Brand LS Electric·Servo Motors

Available part numbers (177)

APM-FGP22D, APM-FGP22DMK, APM-FGP22DMK1, APM-FGP22DMK2, APM-FGP22DMK3, APM-FGP22DMN, APM-FGP22DMN1, APM-FGP22DMN2, APM-FGP22DMN3, APM-FGP35D + 167 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-FGP22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP22DMKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP22DMK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP22DMK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP22DMK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP22DMNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP22DMN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP22DMN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP22DMN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP35DRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP35DMKRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP35DMK1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP35DMK2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP35DMK3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP35DMNRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP35DMN1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP35DMN2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP35DMN3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP55DRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP55DMKRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP55DMK1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP55DMK2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP55DMK3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP55DMNRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP55DMN1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP55DMN2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP55DMN3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP75DRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP75DMKRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP75DMK1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP75DMK2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP75DMK3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP75DMNRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP75DMN1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP75DMN2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP75DMN3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP110DRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP110DMKRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP110DMK1Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP110DMK2Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP110DMK3Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP110DMNRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP110DMN1Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP110DMN2Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP110DMN3Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP110DM3KRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP110DM3K1Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP110DM3K2Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP110DM3K3Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP110DM3NRating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP110DM3N1Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP110DM3N2Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP110DM3N3Rating: 11 kW / 52.52 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP20GRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP20GMKRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP20GMK1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP20GMK2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP20GMK3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP20GMNRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP20GMN1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP20GMN2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP20GMN3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP30GRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP30GMKRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP30GMK1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP30GMK2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP30GMK3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP30GMNRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP30GMN1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP30GMN2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP30GMN3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP44GRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP44GMKRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP44GMK1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP44GMK2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP44GMK3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP44GMNRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP44GMN1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP44GMN2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP44GMN3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP60GRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP60GMKRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP60GMK1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP60GMK2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP60GMK3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP60GMNRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP60GMN1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP60GMN2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP60GMN3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP85GRating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP85GMKRating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP85GMK1Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP85GMK2Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP85GMK3Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP85GMNRating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP85GMN1Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP85GMN2Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP85GMN3Rating: 8.5 kW / 54.11 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP110GRating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP110GMKRating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP110GMK1Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP110GMK2Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP110GMK3Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP110GMNRating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP110GMN1Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP110GMN2Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP110GMN3Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP110GM3KRating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP110GM3K1Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP110GM3K2Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP110GM3K3Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP110GM3NRating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP110GM3N1Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP110GM3N2Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP110GM3N3Rating: 11 kW / 70.03 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP150GRating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP150GMKRating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP150GMK1Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP150GMK2Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP150GMK3Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP150GMNRating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP150GMN1Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP150GMN2Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP150GMN3Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP150GM3KRating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP150GM3K1Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP150GM3K2Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP150GM3K3Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP150GM3NRating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP150GM3N1Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP150GM3N2Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP150GM3N3Rating: 15 kW / 95.49 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP12MRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP12MMKRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP12MMK1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP12MMK2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP12MMK3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP12MMNRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP12MMN1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP12MMN2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP12MMN3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP20MRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP20MMKRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP20MMK1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP20MMK2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP20MMK3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP20MMNRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP20MMN1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP20MMN2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP20MMN3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP30MRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP30MMKRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP30MMK1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP30MMK2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP30MMK3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP30MMNRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP30MMN1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP30MMN2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP30MMN3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP44MRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP44MMKRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP44MMK1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP44MMK2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP44MMK3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP44MMNRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP44MMN1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP44MMN2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP44MMN3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-FGP60MRating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-FGP60MMKRating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-FGP60MMK1Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-FGP60MMK2Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-FGP60MMK3Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-FGP60MMNRating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-FGP60MMN1Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-FGP60MMN2Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-FGP60MMN3Rating: 6 kW / 57.3 N.m | Rated speed: 1,000 rpm | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
