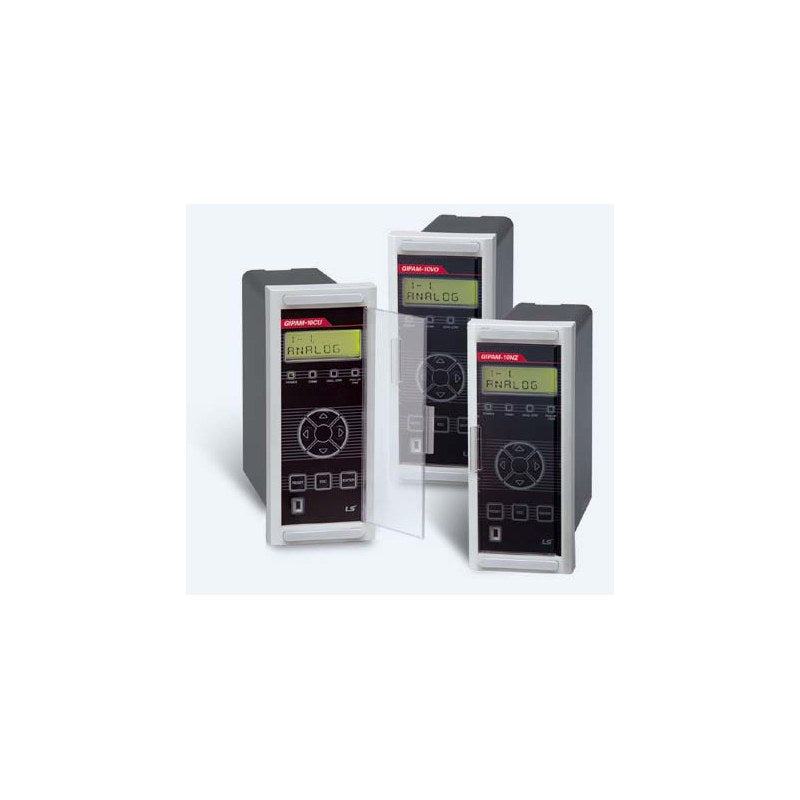

LS Electric Beyond X GIPAM10 Digital Protection Relay (CU/CR/VO/NZ)

LS Electric Beyond X GIPAM10 Digital Protection Relay (CU/CR/VO/NZ)

LS Electric Beyond X GIPAM10 compact digital protection relay for overcurrent, reclosing, voltage and directional ground-fault protection of distribution feeders.

Key features

  • Four function types: CU overcurrent/ground/negative sequence, CR adds reclosing (79), VO voltage (27/59/47P/64), NZ ground fault (67N/67G/64)
  • CT secondary 1 A or 5 A (CU, CR, NZ); PT 110 V, GPT 190 V
  • Records 32 events, 32 faults and 4 waveforms (32 samples/cycle x 30 cycles); USB mini-B PC interface
  • RS-485 Modbus communication; 5 digital inputs and 4 outputs (2 trip, 2 alarm)
  • Fixed or draw-out construction (draw-out shorts CT inputs automatically on withdrawal)

Specifications

PT rating 110 V (GPT 190 V, ZCT 1.5 mA)
Wiring 3P3W, 3P4W
Communication RS-485, Modbus
Control power AC/DC 110/220 V
Trip contacts AC 250 V 16 A / DC 30 V 16 A resistive
Operating temperature -25 to 55 C
Size / weight 100 x 240 x 217 mm (W x H x D); 3 kg
Standards KEMC 1120, IEC 60255
Source LS Electric GIPAM10 catalog C16011-03 (2023-04), p. 6-8, 15
GIPAM10CURSM1A60HzDI_AC/DC110V Protection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CURSM1A60HzDI_AC/DC110VDraw-out Protection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CURSM1A60HzDI_AC/DC220V Protection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CURSM1A60HzDI_AC/DC220VDraw-out Protection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CURSM1A50HzDI_AC/DC110V Protection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CURSM1A50HzDI_AC/DC110VDraw-out Protection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CURSM1A50HzDI_AC/DC220V Protection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CURSM1A50HzDI_AC/DC220VDraw-out Protection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CURSM5A60HzDI_AC/DC110V Protection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CURSM5A60HzDI_AC/DC110VDraw-out Protection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CURSM5A60HzDI_AC/DC220V Protection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CURSM5A60HzDI_AC/DC220VDraw-out Protection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CURSM5A50HzDI_AC/DC110V Protection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CURSM5A50HzDI_AC/DC110VDraw-out Protection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CURSM5A50HzDI_AC/DC220V Protection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CURSM5A50HzDI_AC/DC220VDraw-out Protection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CRRSM1A60HzDI_AC/DC110V Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CRRSM1A60HzDI_AC/DC110VDraw-out Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CRRSM1A60HzDI_AC/DC220V Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CRRSM1A60HzDI_AC/DC220VDraw-out Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CRRSM1A50HzDI_AC/DC110V Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CRRSM1A50HzDI_AC/DC110VDraw-out Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CRRSM1A50HzDI_AC/DC220V Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CRRSM1A50HzDI_AC/DC220VDraw-out Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CRRSM5A60HzDI_AC/DC110V Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CRRSM5A60HzDI_AC/DC110VDraw-out Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CRRSM5A60HzDI_AC/DC220V Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CRRSM5A60HzDI_AC/DC220VDraw-out Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CRRSM5A50HzDI_AC/DC110V Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CRRSM5A50HzDI_AC/DC110VDraw-out Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CRRSM5A50HzDI_AC/DC220V Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CRRSM5A50HzDI_AC/DC220VDraw-out Protection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10VORSM60HzDI_AC/DC110V Protection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10VORSM60HzDI_AC/DC110VDraw-out Protection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10VORSM60HzDI_AC/DC220V Protection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10VORSM60HzDI_AC/DC220VDraw-out Protection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10VORSM50HzDI_AC/DC110V Protection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10VORSM50HzDI_AC/DC110VDraw-out Protection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10VORSM50HzDI_AC/DC220V Protection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10VORSM50HzDI_AC/DC220VDraw-out Protection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10NZRSM1A60HzDI_AC/DC110V Protection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10NZRSM1A60HzDI_AC/DC110VDraw-out Protection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10NZRSM1A60HzDI_AC/DC220V Protection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10NZRSM1A60HzDI_AC/DC220VDraw-out Protection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10NZRSM1A50HzDI_AC/DC110V Protection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10NZRSM1A50HzDI_AC/DC110VDraw-out Protection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10NZRSM1A50HzDI_AC/DC220V Protection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10NZRSM1A50HzDI_AC/DC220VDraw-out Protection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10NZRSM5A60HzDI_AC/DC110V Protection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10NZRSM5A60HzDI_AC/DC110VDraw-out Protection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10NZRSM5A60HzDI_AC/DC220V Protection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10NZRSM5A60HzDI_AC/DC220VDraw-out Protection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10NZRSM5A50HzDI_AC/DC110V Protection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10NZRSM5A50HzDI_AC/DC110VDraw-out Protection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10NZRSM5A50HzDI_AC/DC220V Protection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10NZRSM5A50HzDI_AC/DC220VDraw-out Protection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
Protection RelaysLS Electric
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Beyond X GIPAM10 Digital Protection Relay (CU/CR/VO/NZ)

Brand LS Electric·Protection Relays

Available part numbers (56)

GIPAM10CURSM1A60HzDI_AC/DC110V, GIPAM10CURSM1A60HzDI_AC/DC110VDraw-out, GIPAM10CURSM1A60HzDI_AC/DC220V, GIPAM10CURSM1A60HzDI_AC/DC220VDraw-out, GIPAM10CURSM1A50HzDI_AC/DC110V, GIPAM10CURSM1A50HzDI_AC/DC110VDraw-out, GIPAM10CURSM1A50HzDI_AC/DC220V, GIPAM10CURSM1A50HzDI_AC/DC220VDraw-out, GIPAM10CURSM5A60HzDI_AC/DC110V, GIPAM10CURSM5A60HzDI_AC/DC110VDraw-out + 46 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GIPAM10CURSM1A60HzDI_AC/DC110VProtection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CURSM1A60HzDI_AC/DC110VDraw-outProtection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CURSM1A60HzDI_AC/DC220VProtection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CURSM1A60HzDI_AC/DC220VDraw-outProtection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CURSM1A50HzDI_AC/DC110VProtection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CURSM1A50HzDI_AC/DC110VDraw-outProtection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CURSM1A50HzDI_AC/DC220VProtection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CURSM1A50HzDI_AC/DC220VDraw-outProtection type: CU (50/51, 50N/51N, 46) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CURSM5A60HzDI_AC/DC110VProtection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CURSM5A60HzDI_AC/DC110VDraw-outProtection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CURSM5A60HzDI_AC/DC220VProtection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CURSM5A60HzDI_AC/DC220VDraw-outProtection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CURSM5A50HzDI_AC/DC110VProtection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CURSM5A50HzDI_AC/DC110VDraw-outProtection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CURSM5A50HzDI_AC/DC220VProtection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CURSM5A50HzDI_AC/DC220VDraw-outProtection type: CU (50/51, 50N/51N, 46) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CRRSM1A60HzDI_AC/DC110VProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CRRSM1A60HzDI_AC/DC110VDraw-outProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CRRSM1A60HzDI_AC/DC220VProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CRRSM1A60HzDI_AC/DC220VDraw-outProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CRRSM1A50HzDI_AC/DC110VProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CRRSM1A50HzDI_AC/DC110VDraw-outProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CRRSM1A50HzDI_AC/DC220VProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CRRSM1A50HzDI_AC/DC220VDraw-outProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CRRSM5A60HzDI_AC/DC110VProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CRRSM5A60HzDI_AC/DC110VDraw-outProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CRRSM5A60HzDI_AC/DC220VProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CRRSM5A60HzDI_AC/DC220VDraw-outProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10CRRSM5A50HzDI_AC/DC110VProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10CRRSM5A50HzDI_AC/DC110VDraw-outProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10CRRSM5A50HzDI_AC/DC220VProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10CRRSM5A50HzDI_AC/DC220VDraw-outProtection type: CR (50/51, 50N/51N, 46, 79) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10VORSM60HzDI_AC/DC110VProtection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10VORSM60HzDI_AC/DC110VDraw-outProtection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10VORSM60HzDI_AC/DC220VProtection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10VORSM60HzDI_AC/DC220VDraw-outProtection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10VORSM50HzDI_AC/DC110VProtection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10VORSM50HzDI_AC/DC110VDraw-outProtection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10VORSM50HzDI_AC/DC220VProtection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10VORSM50HzDI_AC/DC220VDraw-outProtection type: VO (27, 59, 47P, 64) | CT rating: None (voltage relay) | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10NZRSM1A60HzDI_AC/DC110VProtection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10NZRSM1A60HzDI_AC/DC110VDraw-outProtection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10NZRSM1A60HzDI_AC/DC220VProtection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10NZRSM1A60HzDI_AC/DC220VDraw-outProtection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10NZRSM1A50HzDI_AC/DC110VProtection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10NZRSM1A50HzDI_AC/DC110VDraw-outProtection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10NZRSM1A50HzDI_AC/DC220VProtection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10NZRSM1A50HzDI_AC/DC220VDraw-outProtection type: NZ (67N, 67G, 64) | CT rating: 1 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10NZRSM5A60HzDI_AC/DC110VProtection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10NZRSM5A60HzDI_AC/DC110VDraw-outProtection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10NZRSM5A60HzDI_AC/DC220VProtection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10NZRSM5A60HzDI_AC/DC220VDraw-outProtection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 60 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
GIPAM10NZRSM5A50HzDI_AC/DC110VProtection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Fixed
GIPAM10NZRSM5A50HzDI_AC/DC110VDraw-outProtection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 110 V | Construction: Draw-out
GIPAM10NZRSM5A50HzDI_AC/DC220VProtection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Fixed
GIPAM10NZRSM5A50HzDI_AC/DC220VDraw-outProtection type: NZ (67N, 67G, 64) | CT rating: 5 A | Frequency: 50 Hz | Digital input: AC/DC 220 V | Construction: Draw-out
