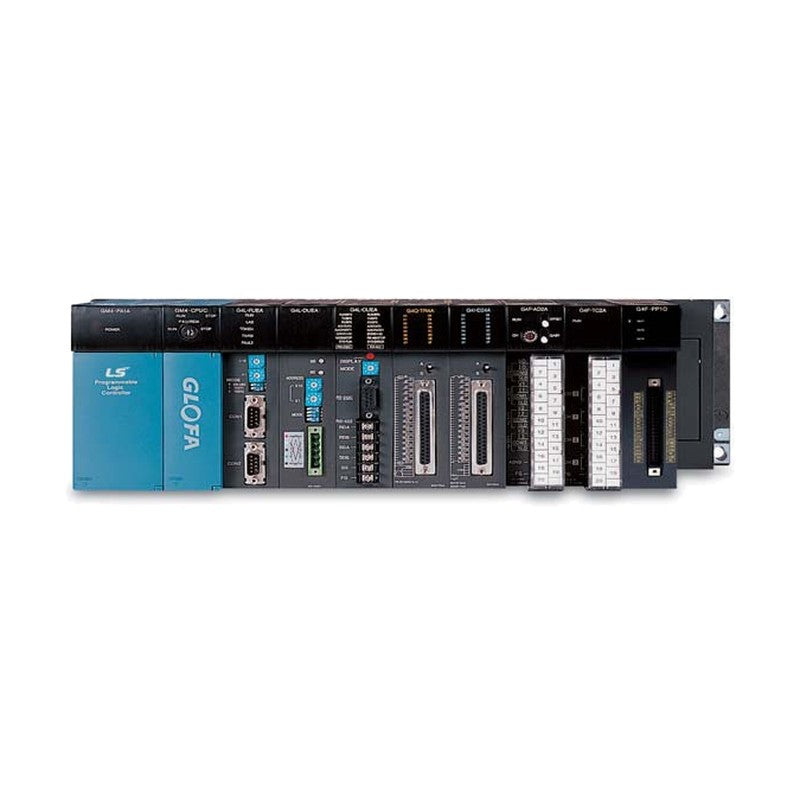

LS Electric G6F Special Function Modules (GM6/K200S) (Discontinued)

Discontinued LS Electric G6F analog, high-speed counter, positioning and thermocouple modules for GLOFA-GM6 and MASTER-K200S modular PLCs, supplied as spare parts.

Key features

4-channel analog voltage/current input and voltage or current output modules
1-channel and 2-channel (200 kpps / 500 kpps) high-speed counters
1 to 3 axis pulse positioning with 2/3-axis linear and 2-axis circular interpolation
4-channel thermocouple input (K, J, E, T, B, R, S)
Analog and temperature modules need GM6-PAFB/PDFB power supply

Specifications

Series	GLOFA-GM6 / MASTER-K200S
Analog power	GM6-PAFB or GM6-PDFB required
Connector	HO1C/HD1C/PP types include connector
Discontinued	January 2019
Status	Spare-parts supply
Source	LS Electric A016_GLOFA_GM_181227.pdf, p. 55; A020_MASTER_K_____1910.pdf, p. 56

G6F-AD2A		Function: Analog input \| Channels: 4 ch \| Rating: DC 1-5/0-10/+-10 V, 4-20 mA \| Signal type: Voltage/current
G6F-DA2V		Function: Analog output \| Channels: 4 ch \| Rating: DC -10 to 10 V \| Signal type: Voltage
G6F-DA2I		Function: Analog output \| Channels: 4 ch \| Rating: DC 4-20 mA \| Signal type: Current
G6F-HSCA		Function: High-speed counter \| Channels: 1 ch \| Rating: 0 to 16,777,215 count \| Signal type: 24-bit counter
G6F-HO1C		Function: High-speed counter \| Channels: 2 ch \| Rating: 200 kpps, 32-bit \| Signal type: Open collector
G6F-HD1C		Function: High-speed counter \| Channels: 2 ch \| Rating: 500 kpps, 32-bit \| Signal type: Line driver
G6F-PP1O		Function: Positioning \| Channels: 1 axis \| Rating: 200 kpps pulse output \| Signal type: Open collector
G6F-PP2O		Function: Positioning \| Channels: 2 axes \| Rating: 200 kpps pulse output \| Signal type: Open collector
G6F-PP3O		Function: Positioning \| Channels: 3 axes \| Rating: 200 kpps pulse output \| Signal type: Open collector
G6F-PP1D		Function: Positioning \| Channels: 1 axis \| Rating: 1 Mpps pulse output \| Signal type: Line driver
G6F-PP2D		Function: Positioning \| Channels: 2 axes \| Rating: 1 Mpps pulse output \| Signal type: Line driver
G6F-PP3D		Function: Positioning \| Channels: 3 axes \| Rating: 1 Mpps pulse output \| Signal type: Line driver
G6F-TC2A		Function: Thermocouple input \| Channels: 4 ch \| Rating: K, J, E, T, B, R, S \| Signal type: Thermocouple

PLC I/O ModulesLS Electric

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric G6F Special Function Modules (GM6/K200S) (Discontinued)

Brand LS Electric·PLC I/O Modules

Available part numbers (13)

G6F-AD2A, G6F-DA2V, G6F-DA2I, G6F-HSCA, G6F-HO1C, G6F-HD1C, G6F-PP1O, G6F-PP2O, G6F-PP3O, G6F-PP1D + 3 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
