LS Electric LXP HMI Options (Memory, XP-VLink Cable, Thermal Camera)

LS Electric LXP HMI Options (Memory, XP-VLink Cable, Thermal Camera)

Option modules for the LS Electric LXP Limitless XGT Panel: 64 GB extended memory, XP-VLink extension cables and short-range thermal imaging cameras for panel fire and temperature monitoring.

Key features

  • LXP-OM64G 64 GB extended memory plugs into the LXP main unit expansion interface
  • XP-VLink extension cables (3 m, 5 m) for separate installation of display and main unit

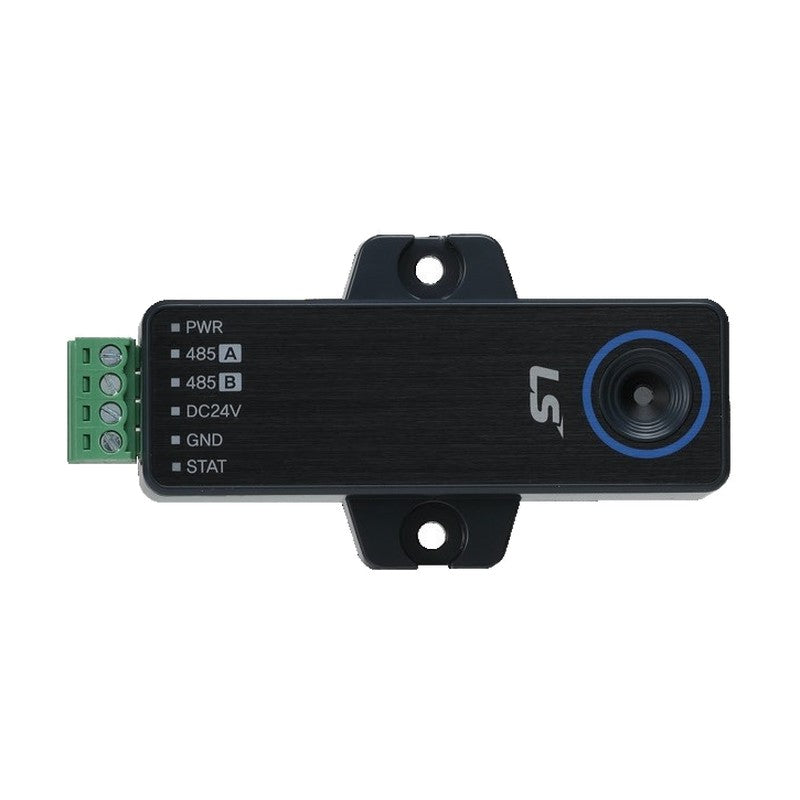

  • LXP-OT32240: 768-pixel thermal camera, 110 deg field of view, up to 4 units on RS-485, for LXP and iXP3
  • LXP-OT1601: 160x120 thermal camera, NETD 40 mK, 25 Hz, for cramped switchgear interiors
  • Temperature analysis, alarm and image blending functions on the HMI

Specifications

Series LXP Limitless XGT Panel
Compatible HMIs LXP (OT32240 also iXP3)
OT32240 accuracy +/-2 % (0-60 C: +/-1 C)
OT1601 accuracy +/-2 C or +/-2 %
OT1601 size 51.1 x 102 x 17.5 mm
OT32240 size 71 x 25 x 13 mm
Source LS Electric LXP Catalog (2024.07), p. 14-15, 24; LXP-OT1601 sheet, p. 1
LXP-OM64G Option: Extended memory | Detail: 64 GB | Interface: Main unit expansion slot | Source page: LXP catalog p. 14
LXP-OC003M Option: XP-VLink extension cable | Detail: 3 m | Interface: XP-VLink | Source page: LXP catalog p. 15
LXP-OC005M Option: XP-VLink extension cable | Detail: 5 m | Interface: XP-VLink | Source page: LXP catalog p. 15
LXP-OT32240 Option: Thermal imaging camera | Detail: 32x24 px, -40 to 300 C, 110x75 deg | Interface: RS-485, DC 24 V | Source page: LXP catalog p. 24
LXP-OT1601 Option: Thermal imaging camera | Detail: 160x120 px, -20 to 150 C, 114x89 deg | Interface: Ethernet / RS-485, DC 12 V | Source page: LXP-OT1601 sheet p. 1
HMI AccessoriesLS Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric LXP HMI Options (Memory, XP-VLink Cable, Thermal Camera)

Brand LS Electric·HMI Accessories

Available part numbers (5)

LXP-OM64G, LXP-OC003M, LXP-OC005M, LXP-OT32240, LXP-OT1601

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LXP-OM64GOption: Extended memory | Detail: 64 GB | Interface: Main unit expansion slot | Source page: LXP catalog p. 14
LXP-OC003MOption: XP-VLink extension cable | Detail: 3 m | Interface: XP-VLink | Source page: LXP catalog p. 15
LXP-OC005MOption: XP-VLink extension cable | Detail: 5 m | Interface: XP-VLink | Source page: LXP catalog p. 15
LXP-OT32240Option: Thermal imaging camera | Detail: 32x24 px, -40 to 300 C, 110x75 deg | Interface: RS-485, DC 24 V | Source page: LXP catalog p. 24
LXP-OT1601Option: Thermal imaging camera | Detail: 160x120 px, -20 to 150 C, 114x89 deg | Interface: Ethernet / RS-485, DC 12 V | Source page: LXP-OT1601 sheet p. 1
