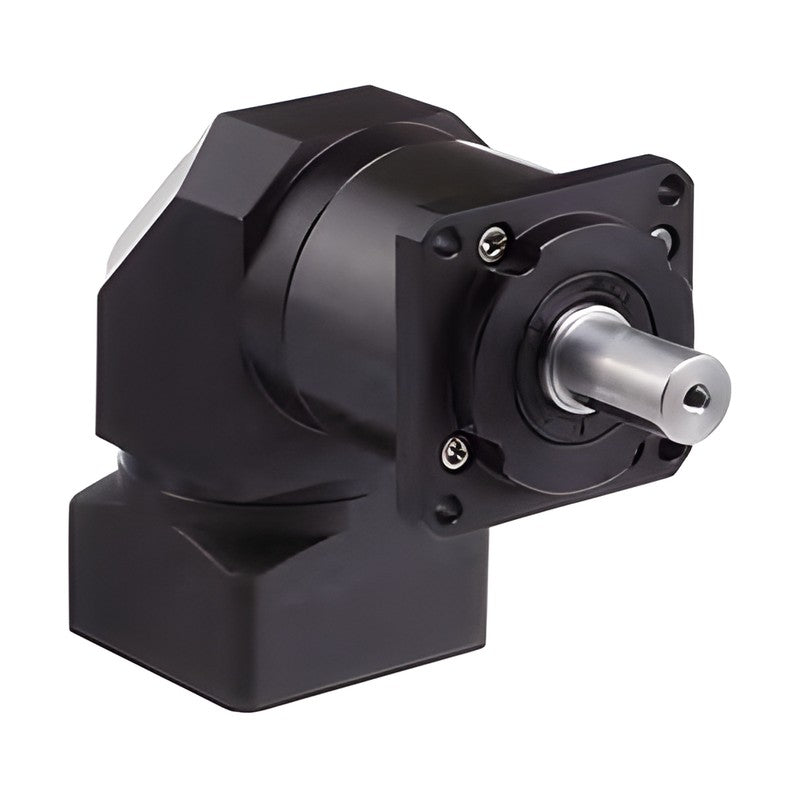

LS Electric MAS Right-Angle Planetary Gearbox, Square Flange (2-stage)

LS Electric MAS Right-Angle Planetary Gearbox, Square Flange (2-stage)

LS Electric MAS precision planetary gearbox (basic line, helical gear, right-angle, square flange, keyed or smooth output shaft) in frames 045-180; full order code MAS<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Basic line helical-gear planetary reducer, right-angle housing
  • Spiral bevel gear right-angle stage saves installation space
  • Backlash classes: S (standard)
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65

Specifications

Series MAS (Basic line)
Gear type Helical planetary
Housing Right-Angle
Output Square Flange
Frame sizes 045, 060, 090, 115, 142, 180
Ratios 15:1 to 200:1
Efficiency (1-stage / 2-stage) >= 95% / >= 92%
Rated input speed 5,000 to 3,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 58 to 72 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 17, 22-25
MAS0452A-015KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-015NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-020KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-020NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-025KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-025NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-030KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-030NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-035KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-035NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-040KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-040NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-045KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-045NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-050KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-050NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-060KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-060NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-070KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-070NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-080KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-080NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-090KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-090NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-100KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-100NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-025KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-025NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-030KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-030NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-035KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-035NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-040KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-040NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-045KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-045NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-050KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-050NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-060KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-060NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-070KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-070NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-080KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-080NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-090KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-090NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-100KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-100NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-025KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-025NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-030KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-030NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-035KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-035NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-040KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-040NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-045KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-045NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-050KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-050NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-060KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-060NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-070KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-070NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-080KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-080NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-090KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-090NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-100KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-100NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-120KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-120NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-140KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-140NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-180KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-180NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-200KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-200NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-025KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-025NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-030KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-030NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-035KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-035NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-040KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-040NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-045KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-045NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-050KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-050NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-060KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-060NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-070KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-070NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-080KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-080NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-090KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-090NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-100KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-100NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-120KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-120NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-140KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-140NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-180KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-180NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-200KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-200NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-025KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-025NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-030KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-030NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-035KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-035NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-040KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-040NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-045KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-045NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-050KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-050NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-060KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-060NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-070KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-070NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-080KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-080NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-090KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-090NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-100KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-100NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-120KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-120NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-140KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-140NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-180KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-180NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-200KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-200NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-025KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-025NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-030KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-030NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-035KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-035NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-040KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-040NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-045KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-045NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-050KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-050NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-060KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-060NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-070KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-070NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-080KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-080NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-090KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-090NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-100KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-100NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-120KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-120NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-140KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-140NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-180KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-180NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-200KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-200NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-025KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-025NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-030KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-030NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-035KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-035NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-040KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-040NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-045KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-045NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-050KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-050NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-060KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-060NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-070KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-070NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-080KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-080NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-090KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-090NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-100KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-100NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-120KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-120NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-140KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-140NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-180KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-180NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-200KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-200NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-025KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-025NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-030KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-030NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-035KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-035NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-040KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-040NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-045KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-045NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-050KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-050NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-060KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-060NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-070KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-070NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-080KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-080NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-090KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-090NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-100KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-100NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-120KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-120NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-140KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-140NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-180KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-180NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-200KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-200NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-025KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-025NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-030KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-030NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-035KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-035NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-040KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-040NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-045KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-045NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-050KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-050NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-060KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-060NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-070KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-070NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-080KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-080NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-090KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-090NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-100KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-100NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-120KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-120NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-140KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-140NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-180KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-180NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-200KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-200NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-025KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-025NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-030KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-030NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-035KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-035NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-040KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-040NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-045KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-045NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-050KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-050NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-060KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-060NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-070KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-070NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-080KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-080NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-090KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-090NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-100KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-100NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-120KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-120NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-140KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-140NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-180KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-180NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-200KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-200NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-025KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-025NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-030KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-030NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-035KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-035NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-040KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-040NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-045KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-045NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-050KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-050NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-060KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-060NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-070KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-070NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-080KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-080NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-090KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-090NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-100KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-100NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-120KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-120NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-140KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-140NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-180KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-180NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-200KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-200NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS0902B Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1152B Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1422B Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1802B Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS0452A Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS0602A Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS0902A Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1152A Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1422A Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1802A Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
329 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric MAS Right-Angle Planetary Gearbox, Square Flange (2-stage)

Brand LS Electric·Planetary Gearboxes

Available part numbers (329)

MAS0452A-015KS, MAS0452A-015NS, MAS0452A-020KS, MAS0452A-020NS, MAS0452A-025KS, MAS0452A-025NS, MAS0452A-030KS, MAS0452A-030NS, MAS0452A-035KS, MAS0452A-035NS + 319 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MAS0452A-015KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-015NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-020KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-020NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-025KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-025NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-030KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-030NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-035KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-035NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-040KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-040NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-045KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-045NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-050KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-050NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-060KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-060NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-070KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-070NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-080KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-080NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-090KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-090NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0452A-100KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0452A-100NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-025KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-025NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-030KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-030NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-035KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-035NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-040KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-040NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-045KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-045NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-050KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-050NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-060KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-060NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-070KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-070NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-080KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-080NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-090KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-090NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602B-100KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602B-100NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-025KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-025NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-030KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-030NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-035KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-035NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-040KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-040NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-045KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-045NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-050KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-050NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-060KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-060NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-070KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-070NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-080KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-080NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-090KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-090NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-100KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-100NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-120KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-120NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-140KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-140NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-180KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-180NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602A-200KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0602A-200NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-025KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-025NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-030KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-030NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-035KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-035NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-040KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-040NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-045KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-045NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-050KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-050NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-060KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-060NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-070KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-070NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-080KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-080NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-090KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-090NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-100KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-100NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-120KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-120NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-140KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-140NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-180KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-180NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902B-200KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902B-200NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-025KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-025NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-030KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-030NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-035KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-035NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-040KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-040NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-045KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-045NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-050KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-050NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-060KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-060NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-070KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-070NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-080KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-080NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-090KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-090NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-100KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-100NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-120KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-120NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-140KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-140NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-180KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-180NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0902A-200KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS0902A-200NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-025KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-025NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-030KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-030NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-035KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-035NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-040KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-040NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-045KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-045NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-050KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-050NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-060KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-060NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-070KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-070NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-080KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-080NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-090KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-090NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-100KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-100NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-120KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-120NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-140KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-140NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-180KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-180NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152B-200KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152B-200NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-025KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-025NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-030KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-030NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-035KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-035NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-040KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-040NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-045KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-045NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-050KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-050NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-060KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-060NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-070KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-070NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-080KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-080NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-090KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-090NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-100KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-100NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-120KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-120NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-140KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-140NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-180KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-180NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1152A-200KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1152A-200NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-025KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-025NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-030KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-030NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-035KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-035NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-040KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-040NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-045KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-045NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-050KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-050NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-060KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-060NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-070KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-070NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-080KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-080NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-090KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-090NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-100KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-100NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-120KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-120NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-140KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-140NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-180KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-180NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422B-200KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422B-200NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-025KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-025NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-030KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-030NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-035KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-035NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-040KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-040NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-045KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-045NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-050KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-050NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-060KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-060NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-070KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-070NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-080KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-080NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-090KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-090NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-100KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-100NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-120KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-120NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-140KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-140NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-180KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-180NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1422A-200KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1422A-200NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-025KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-025NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-030KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-030NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-035KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-035NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-040KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-040NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-045KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-045NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-050KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-050NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-060KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-060NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-070KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-070NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-080KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-080NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-090KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-090NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-100KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-100NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-120KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-120NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-140KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-140NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-180KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-180NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802B-200KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802B-200NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-025KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-025NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-030KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-030NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-035KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-035NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-040KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-040NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-045KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-045NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-050KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-050NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-060KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-060NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-070KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-070NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-080KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-080NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-090KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-090NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-100KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-100NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-120KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-120NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-140KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-140NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-180KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-180NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS1802A-200KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
MAS1802A-200NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
MAS0602BFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS0902BFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1152BFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1422BFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1802BFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS0452AFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS0602AFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS0902AFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1152AFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1422AFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MAS1802AFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
