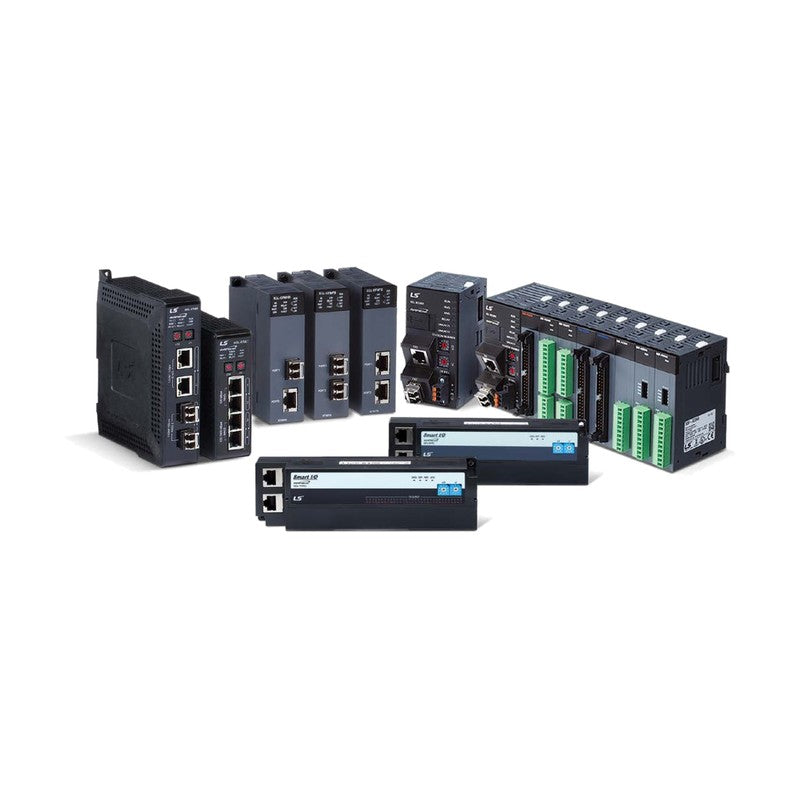

LS Electric GDL Smart I/O Block Modules (DeviceNet)

LS Electric GDL Smart I/O Block Modules (DeviceNet)

LS Electric GDL Smart I/O block-type remote I/O modules for DeviceNet networks, providing digital I/O in a compact all-in-one housing.

Key features

  • DeviceNet slave block I/O (DeviceNet slave) for distributed wiring close to the machine
  • 16 and 32 point DC input, transistor output, relay output and 16/16 mixed modules
  • Transistor outputs in source (C) and sink (C1) versions
  • Works with XGL-DMEB DeviceNet master (or third-party master)
  • Station number set by rotary switch; LED status and I/O indicators

Specifications

Network DeviceNet slave
Communication connector DeviceNet connector
Form factor Block-type Smart I/O (all-in-one)
Signal voltage DC 24 V
Common Inputs/TR 16 points/COM; relay 8 points/COM
Terminals Removable terminal block
Operating temperature 0 to 55 C
Master XGL-DMEB DeviceNet master (or third-party master)
Source LS Electric Smart I/O catalog (2020-08), p. 29-54
GDL-D22C I/O type: DC input | Points: 16 | Rating: DC 24 V | Output wiring: n/a (sink/source input) | Status: Current
GDL-D24C I/O type: DC input | Points: 32 | Rating: DC 24 V | Output wiring: n/a (sink/source input) | Status: Current
GDL-TR2C I/O type: Transistor output | Points: 16 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GDL-TR2C1 I/O type: Transistor output | Points: 16 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GDL-TR4C I/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GDL-TR4C1 I/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GDL-RY2C I/O type: Relay output | Points: 16 | Rating: DC 24 V / AC 110/220 V, 2 A/pt | Output wiring: Relay contact | Status: Current
GDL-DT4C I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GDL-DT4C1 I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GDL-D22A I/O type: DC input | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GDL-D24A I/O type: DC input | Points: 32 | Rating: - | Output wiring: - | Status: Legacy code
GDL-TR2A I/O type: Transistor output | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GDL-TR4A I/O type: Transistor output | Points: 32 | Rating: - | Output wiring: - | Status: Legacy code
GDL-RY2A I/O type: Relay output | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GDL-DT4A I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: - | Output wiring: - | Status: Legacy code
Remote I/O ModulesLS Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric GDL Smart I/O Block Modules (DeviceNet)

Brand LS Electric·Remote I/O Modules

Available part numbers (15)

GDL-D22C, GDL-D24C, GDL-TR2C, GDL-TR2C1, GDL-TR4C, GDL-TR4C1, GDL-RY2C, GDL-DT4C, GDL-DT4C1, GDL-D22A + 5 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GDL-D22CI/O type: DC input | Points: 16 | Rating: DC 24 V | Output wiring: n/a (sink/source input) | Status: Current
GDL-D24CI/O type: DC input | Points: 32 | Rating: DC 24 V | Output wiring: n/a (sink/source input) | Status: Current
GDL-TR2CI/O type: Transistor output | Points: 16 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GDL-TR2C1I/O type: Transistor output | Points: 16 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GDL-TR4CI/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GDL-TR4C1I/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GDL-RY2CI/O type: Relay output | Points: 16 | Rating: DC 24 V / AC 110/220 V, 2 A/pt | Output wiring: Relay contact | Status: Current
GDL-DT4CI/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source | Status: Current
GDL-DT4C1I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink | Status: Current
GDL-D22AI/O type: DC input | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GDL-D24AI/O type: DC input | Points: 32 | Rating: - | Output wiring: - | Status: Legacy code
GDL-TR2AI/O type: Transistor output | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GDL-TR4AI/O type: Transistor output | Points: 32 | Rating: - | Output wiring: - | Status: Legacy code
GDL-RY2AI/O type: Relay output | Points: 16 | Rating: - | Output wiring: - | Status: Legacy code
GDL-DT4AI/O type: DC input + TR output | Points: 16 in / 16 out | Rating: - | Output wiring: - | Status: Legacy code
