LS Electric XGT XGI Digital Input Modules (DC 24 V / AC)

LS Electric XGT XGI- digital input modules provide 8 to 64 DC 24 V sink/source or AC 110/220 V inputs for XGK, XGI and XGR systems, including a wire-break diagnostic input module.

Key features

DC 24 V inputs in 8, 16, 32 and 64 points; A types sink/source, B types source
AC 110 V (16 points) and AC 220 V (8 points, common or isolated commons) input modules
Input filter selectable 1/3/5/10/20/70/100 ms by I/O parameter (DC models, default 3 ms)

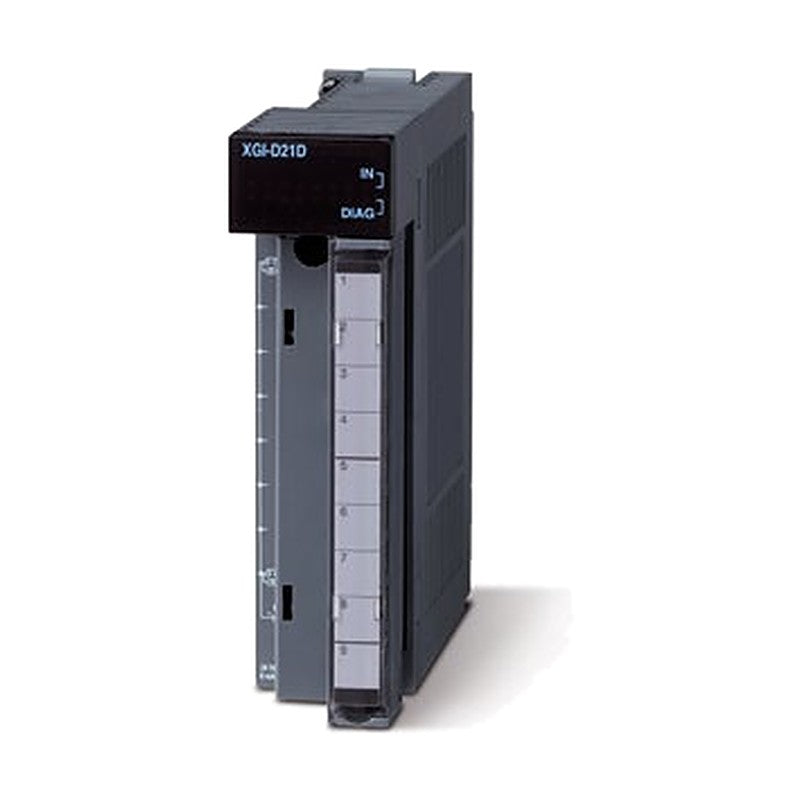

XGI-D21D diagnostic input detects wire breaks via 10 kohm resistor, with DIAG LEDs and internal flags
Photocoupler isolation, removable terminal blocks or connectors for easy maintenance

Specifications

Isolation	Photocoupler
DC ON / OFF level	DC 19 V / 3 mA min. ; DC 11 V / 1.7 mA max.
AC response time	OFF to ON 15 ms, ON to OFF 25 ms max.
Connectors	40-pin connector types sold without mating connector
Compatible CPUs	XGK, XGI, XGR
Operating temperature	0 to 55 C
Humidity	5 to 95% RH, non-condensing
Vibration / shock	IEC 61131-2
Source	LS Electric XGT Series catalog (2026-07), p. 17, 25-28, 148

XGI-D21A		Input voltage: DC 24 V \| Points: 8 \| Input type: Sink/Source \| Common: 8 pt/COM \| Rated input current: 4 mA
XGI-D21D		Input voltage: DC 24 V \| Points: 8 \| Input type: Sink/Source, wire-break diag \| Common: 8 pt/COM \| Rated input current: Approx. 8 mA
XGI-D22A		Input voltage: DC 24 V \| Points: 16 \| Input type: Sink/Source \| Common: 16 pt/COM \| Rated input current: 4 mA
XGI-D22B		Input voltage: DC 24 V \| Points: 16 \| Input type: Source \| Common: 16 pt/COM \| Rated input current: 4 mA
XGI-D24A		Input voltage: DC 24 V \| Points: 32 \| Input type: Sink/Source \| Common: 32 pt/COM \| Rated input current: 4 mA
XGI-D24B		Input voltage: DC 24 V \| Points: 32 \| Input type: Source \| Common: 32 pt/COM \| Rated input current: 4 mA
XGI-D28A		Input voltage: DC 24 V \| Points: 64 \| Input type: Sink/Source \| Common: 32 pt/COM \| Rated input current: 4 mA
XGI-D28B		Input voltage: DC 24 V \| Points: 64 \| Input type: Source \| Common: 32 pt/COM \| Rated input current: 4 mA
XGI-A12A		Input voltage: AC 100-120 V \| Points: 16 \| Input type: AC input \| Common: 16 pt/COM \| Rated input current: 8 mA
XGI-A21A		Input voltage: AC 100-240 V \| Points: 8 \| Input type: AC input \| Common: 8 pt/COM \| Rated input current: 17 mA
XGI-A21C		Input voltage: AC 100-240 V \| Points: 8 \| Input type: AC input, isolated COM \| Common: 1 pt/COM \| Rated input current: 17 mA

PLC I/O ModulesLS Electric

11 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGT XGI Digital Input Modules (DC 24 V / AC)

Brand LS Electric·PLC I/O Modules

Available part numbers (11)

XGI-D21A, XGI-D21D, XGI-D22A, XGI-D22B, XGI-D24A, XGI-D24B, XGI-D28A, XGI-D28B, XGI-A12A, XGI-A21A + 1 more — see full table ↓
