Marposs F05 Series Gauge Probe (+/-0.5 mm)

Marposs F05 Series Gauge Probe (+/-0.5 mm)

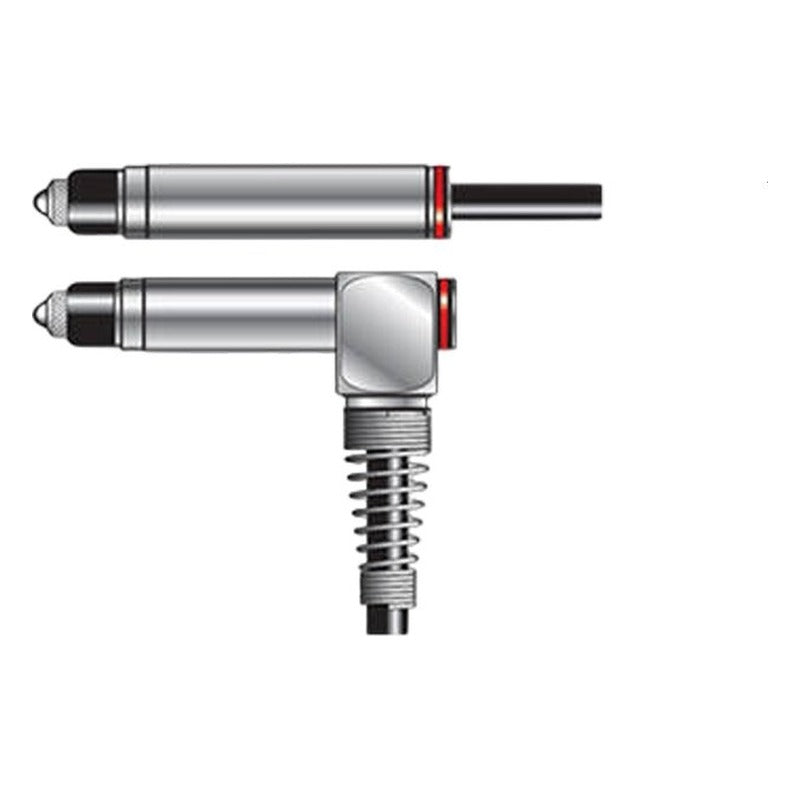

Marposs F05 series pencil gauge probes with +/-0.5 mm measuring range, offered as LVDT (F), half-bridge HBT (H) and further printed variants in axial or radial form with spring, pneumatic or vacuum actuation.

Key features

  • Measuring range +/-0.5 mm (1 mm)
  • Repeatability 0.15 um
  • 8 mm body diameter, IP65 protection
  • Axial (straight) and radial (90 deg) versions
  • Spring push, pneumatic push and vacuum variants
  • 2 m integral cable

Specifications

Measuring range +/-0.5 mm (1 mm)
Repeatability 0.15 um
Accuracy +/-3 um
Body diameter 8 mm
Cable length 2 m
Protection IP65
Operating temperature -10 to +65 C
Storage temperature -20 to +100 C
Code legend F=LVDT, H=HBT, D=digital; R=radial, P=pneumatic, V=vacuum
Source Marposs F05 series page / LVDT lineup
F05 Transducer: LVDT | Form: Axial | Actuation: Spring push
FR05 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Spring push
H05 Transducer: HBT | Form: Axial | Actuation: Spring push
HR05 Transducer: HBT | Form: Radial (90 deg) | Actuation: Spring push
U05 Transducer: U series | Form: Axial | Actuation: Spring push
UR05 Transducer: U series | Form: Radial (90 deg) | Actuation: Spring push
D01 Transducer: Digital | Form: Axial | Actuation: Spring push
RD01 Transducer: Digital | Form: Radial (90 deg) | Actuation: Spring push
Gauge ProbeMarposs
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Marposs F05 Series Gauge Probe (+/-0.5 mm)

Brand Marposs·Gauge Probe

Available part numbers (8)

F05, FR05, H05, HR05, U05, UR05, D01, RD01

How to order

Send the Marposs part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F05Transducer: LVDT | Form: Axial | Actuation: Spring push
FR05Transducer: LVDT | Form: Radial (90 deg) | Actuation: Spring push
H05Transducer: HBT | Form: Axial | Actuation: Spring push
HR05Transducer: HBT | Form: Radial (90 deg) | Actuation: Spring push
U05Transducer: U series | Form: Axial | Actuation: Spring push
UR05Transducer: U series | Form: Radial (90 deg) | Actuation: Spring push
D01Transducer: Digital | Form: Axial | Actuation: Spring push
RD01Transducer: Digital | Form: Radial (90 deg) | Actuation: Spring push
