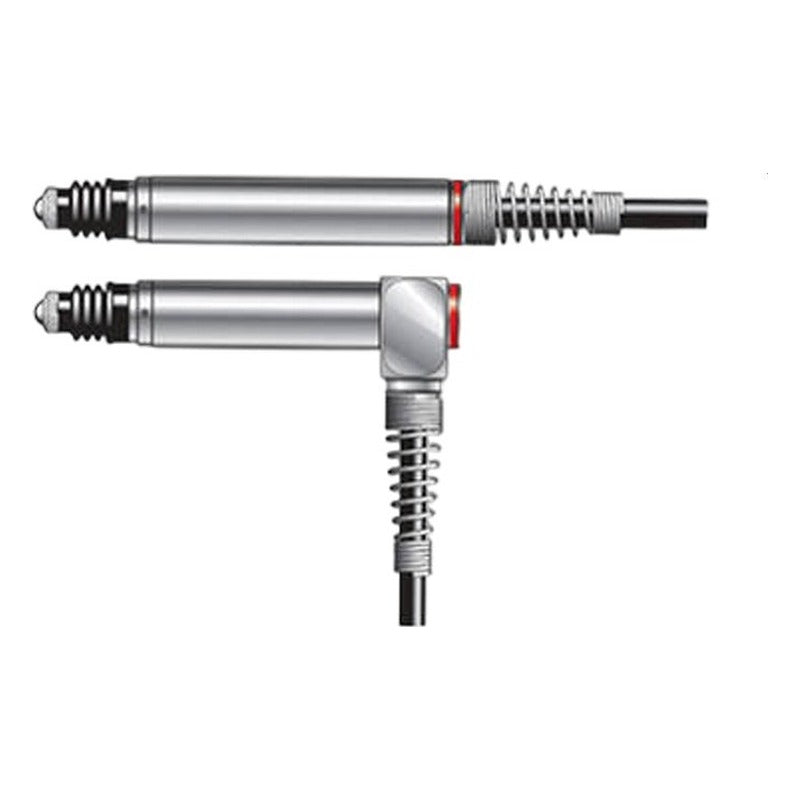

Marposs F10 Series Gauge Probe (+/-1 mm)

Marposs F10 Series Gauge Probe (+/-1 mm)

Marposs F10 series pencil gauge probes with +/-1 mm measuring range, offered as LVDT (F), half-bridge HBT (H) and further printed variants in axial or radial form with spring, pneumatic or vacuum actuation.

Key features

  • Measuring range +/-1 mm (2 mm)
  • Repeatability 0.15 um
  • 8 mm body diameter, IP65 protection
  • Axial (straight) and radial (90 deg) versions
  • Spring push, pneumatic push and vacuum variants
  • 2 m integral cable

Specifications

Measuring range +/-1 mm (2 mm)
Repeatability 0.15 um
Accuracy +/-5 um
Body diameter 8 mm
Cable length 2 m
Protection IP65
Operating temperature -10 to +65 C
Storage temperature -20 to +100 C
Code legend F=LVDT, H=HBT, D=digital; R=radial, P=pneumatic, V=vacuum
Source Marposs F10 series page / LVDT lineup
F10 Transducer: LVDT | Form: Axial | Actuation: Spring push
FR10 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Spring push
FPA10 Transducer: LVDT | Form: Axial | Actuation: Pneumatic push
FP10 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Pneumatic push
FVA10 Transducer: LVDT | Form: Axial | Actuation: Vacuum
FV10 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Vacuum
H10 Transducer: HBT | Form: Axial | Actuation: Spring push
HR10 Transducer: HBT | Form: Radial (90 deg) | Actuation: Spring push
HPA10 Transducer: HBT | Form: Axial | Actuation: Pneumatic push
HP10 Transducer: HBT | Form: Radial (90 deg) | Actuation: Pneumatic push
HVA10 Transducer: HBT | Form: Axial | Actuation: Vacuum
HV10 Transducer: HBT | Form: Radial (90 deg) | Actuation: Vacuum
U10 Transducer: U series | Form: Axial | Actuation: Spring push
UR10 Transducer: U series | Form: Radial (90 deg) | Actuation: Spring push
UPA10 Transducer: U series | Form: Axial | Actuation: Pneumatic push
UP10 Transducer: U series | Form: Radial (90 deg) | Actuation: Pneumatic push
UVA10 Transducer: U series | Form: Axial | Actuation: Vacuum
UV10 Transducer: U series | Form: Radial (90 deg) | Actuation: Vacuum
D02 Transducer: Digital | Form: Axial | Actuation: Spring push
RD02 Transducer: Digital | Form: Radial (90 deg) | Actuation: Spring push
PAD02 Transducer: Digital | Form: Axial | Actuation: Pneumatic push
PD02 Transducer: Digital | Form: Radial (90 deg) | Actuation: Pneumatic push
VAD02 Transducer: Digital | Form: Axial | Actuation: Vacuum
VD02 Transducer: Digital | Form: Radial (90 deg) | Actuation: Vacuum
Gauge ProbeMarposs
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Marposs F10 Series Gauge Probe (+/-1 mm)

Brand Marposs·Gauge Probe

Available part numbers (24)

F10, FR10, FPA10, FP10, FVA10, FV10, H10, HR10, HPA10, HP10 + 14 more — see full table ↓
