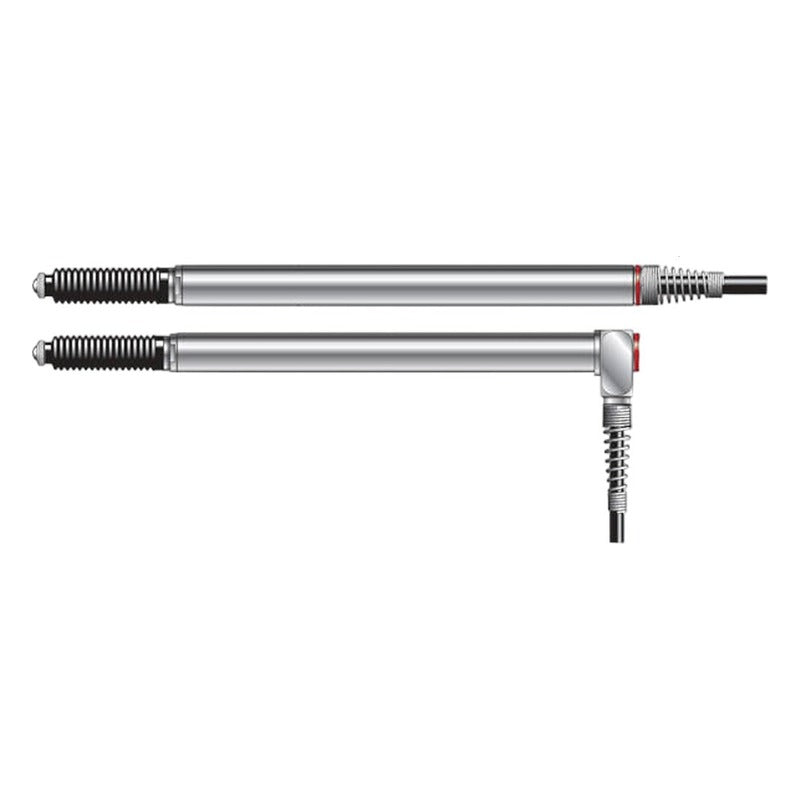

Marposs F100 Series Gauge Probe (+/-10 mm)

Marposs F100 Series Gauge Probe (+/-10 mm)

Marposs F100 series pencil gauge probes with +/-10 mm measuring range, offered as LVDT (F), half-bridge HBT (H) and further printed variants in axial or radial form with spring, pneumatic or vacuum actuation.

Key features

  • Measuring range +/-10 mm (20 mm)
  • Repeatability 0.15 um
  • 8 mm body diameter, IP65 protection
  • Axial (straight) and radial (90 deg) versions
  • Spring push, pneumatic push and vacuum variants
  • 2 m integral cable

Specifications

Measuring range +/-10 mm (20 mm)
Repeatability 0.15 um
Body diameter 8 mm
Cable length 2 m
Protection IP65
Operating temperature -10 to +65 C
Storage temperature -20 to +100 C
Code legend F=LVDT, H=HBT, D=digital; R=radial, P=pneumatic, V=vacuum
Source Marposs F100 series page / LVDT lineup
F100 Transducer: LVDT | Form: Axial | Actuation: Spring push
FR100 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Spring push
FPA100 Transducer: LVDT | Form: Axial | Actuation: Pneumatic push
FP100 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Pneumatic push
H100 Transducer: HBT | Form: Axial | Actuation: Spring push
HR100 Transducer: HBT | Form: Radial (90 deg) | Actuation: Spring push
HPA100 Transducer: HBT | Form: Axial | Actuation: Pneumatic push
HP100 Transducer: HBT | Form: Radial (90 deg) | Actuation: Pneumatic push
U100 Transducer: U series | Form: Axial | Actuation: Spring push
UR100 Transducer: U series | Form: Radial (90 deg) | Actuation: Spring push
UPA100 Transducer: U series | Form: Axial | Actuation: Pneumatic push
UP100 Transducer: U series | Form: Radial (90 deg) | Actuation: Pneumatic push
UVA100 Transducer: U series | Form: Axial | Actuation: Vacuum
UV100 Transducer: U series | Form: Radial (90 deg) | Actuation: Vacuum
D20 Transducer: Digital | Form: Axial | Actuation: Spring push
RD20 Transducer: Digital | Form: Radial (90 deg) | Actuation: Spring push
PAD20 Transducer: Digital | Form: Axial | Actuation: Pneumatic push
PD20 Transducer: Digital | Form: Radial (90 deg) | Actuation: Pneumatic push
Gauge ProbeMarposs
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Marposs F100 Series Gauge Probe (+/-10 mm)

Brand Marposs·Gauge Probe

Available part numbers (18)

F100, FR100, FPA100, FP100, H100, HR100, HPA100, HP100, U100, UR100 + 8 more — see full table ↓
