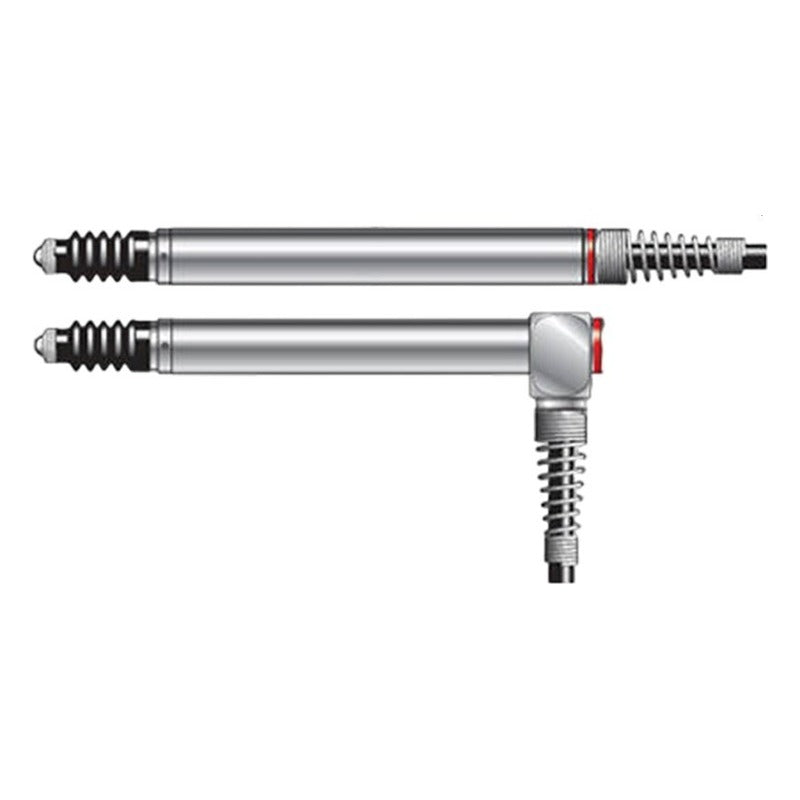

Marposs F25 Series Gauge Probe (+/-2.5 mm)

Marposs F25 Series Gauge Probe (+/-2.5 mm)

Marposs F25 series pencil gauge probes with +/-2.5 mm measuring range, offered as LVDT (F), half-bridge HBT (H) and further printed variants in axial or radial form with spring, pneumatic or vacuum actuation.

Key features

  • Measuring range +/-2.5 mm (5 mm)
  • Repeatability 0.15 um
  • 8 mm body diameter, IP65 protection
  • Axial (straight) and radial (90 deg) versions
  • Spring push, pneumatic push and vacuum variants
  • 2 m integral cable

Specifications

Measuring range +/-2.5 mm (5 mm)
Repeatability 0.15 um
Body diameter 8 mm
Cable length 2 m
Protection IP65
Operating temperature -10 to +65 C
Storage temperature -20 to +100 C
Code legend F=LVDT, H=HBT, D=digital; R=radial, P=pneumatic, V=vacuum
Source Marposs F25 series page / LVDT lineup
F25 Transducer: LVDT | Form: Axial | Actuation: Spring push
FR25 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Spring push
FPA25 Transducer: LVDT | Form: Axial | Actuation: Pneumatic push
FP25 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Pneumatic push
FVA25 Transducer: LVDT | Form: Axial | Actuation: Vacuum
FV25 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Vacuum
H25 Transducer: HBT | Form: Axial | Actuation: Spring push
HR25 Transducer: HBT | Form: Radial (90 deg) | Actuation: Spring push
HPA25 Transducer: HBT | Form: Axial | Actuation: Pneumatic push
HP25 Transducer: HBT | Form: Radial (90 deg) | Actuation: Pneumatic push
HVA25 Transducer: HBT | Form: Axial | Actuation: Vacuum
HV25 Transducer: HBT | Form: Radial (90 deg) | Actuation: Vacuum
U25 Transducer: U series | Form: Axial | Actuation: Spring push
UR25 Transducer: U series | Form: Radial (90 deg) | Actuation: Spring push
UPA25 Transducer: U series | Form: Axial | Actuation: Pneumatic push
UP25 Transducer: U series | Form: Radial (90 deg) | Actuation: Pneumatic push
UVA25 Transducer: U series | Form: Axial | Actuation: Vacuum
UV25 Transducer: U series | Form: Radial (90 deg) | Actuation: Vacuum
D05 Transducer: Digital | Form: Axial | Actuation: Spring push
RD05 Transducer: Digital | Form: Radial (90 deg) | Actuation: Spring push
PAD05 Transducer: Digital | Form: Axial | Actuation: Pneumatic push
PD05 Transducer: Digital | Form: Radial (90 deg) | Actuation: Pneumatic push
VAD05 Transducer: Digital | Form: Axial | Actuation: Vacuum
VD05 Transducer: Digital | Form: Radial (90 deg) | Actuation: Vacuum
Gauge ProbeMarposs
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Marposs F25 Series Gauge Probe (+/-2.5 mm)

Brand Marposs·Gauge Probe

Available part numbers (24)

F25, FR25, FPA25, FP25, FVA25, FV25, H25, HR25, HPA25, HP25 + 14 more — see full table ↓

How to order

Send the Marposs part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F25Transducer: LVDT | Form: Axial | Actuation: Spring push
FR25Transducer: LVDT | Form: Radial (90 deg) | Actuation: Spring push
FPA25Transducer: LVDT | Form: Axial | Actuation: Pneumatic push
FP25Transducer: LVDT | Form: Radial (90 deg) | Actuation: Pneumatic push
FVA25Transducer: LVDT | Form: Axial | Actuation: Vacuum
FV25Transducer: LVDT | Form: Radial (90 deg) | Actuation: Vacuum
H25Transducer: HBT | Form: Axial | Actuation: Spring push
HR25Transducer: HBT | Form: Radial (90 deg) | Actuation: Spring push
HPA25Transducer: HBT | Form: Axial | Actuation: Pneumatic push
HP25Transducer: HBT | Form: Radial (90 deg) | Actuation: Pneumatic push
HVA25Transducer: HBT | Form: Axial | Actuation: Vacuum
HV25Transducer: HBT | Form: Radial (90 deg) | Actuation: Vacuum
U25Transducer: U series | Form: Axial | Actuation: Spring push
UR25Transducer: U series | Form: Radial (90 deg) | Actuation: Spring push
UPA25Transducer: U series | Form: Axial | Actuation: Pneumatic push
UP25Transducer: U series | Form: Radial (90 deg) | Actuation: Pneumatic push
UVA25Transducer: U series | Form: Axial | Actuation: Vacuum
UV25Transducer: U series | Form: Radial (90 deg) | Actuation: Vacuum
D05Transducer: Digital | Form: Axial | Actuation: Spring push
RD05Transducer: Digital | Form: Radial (90 deg) | Actuation: Spring push
PAD05Transducer: Digital | Form: Axial | Actuation: Pneumatic push
PD05Transducer: Digital | Form: Radial (90 deg) | Actuation: Pneumatic push
VAD05Transducer: Digital | Form: Axial | Actuation: Vacuum
VD05Transducer: Digital | Form: Radial (90 deg) | Actuation: Vacuum
