Marposs F50 Series Gauge Probe (+/-5 mm)

Marposs F50 Series Gauge Probe (+/-5 mm)

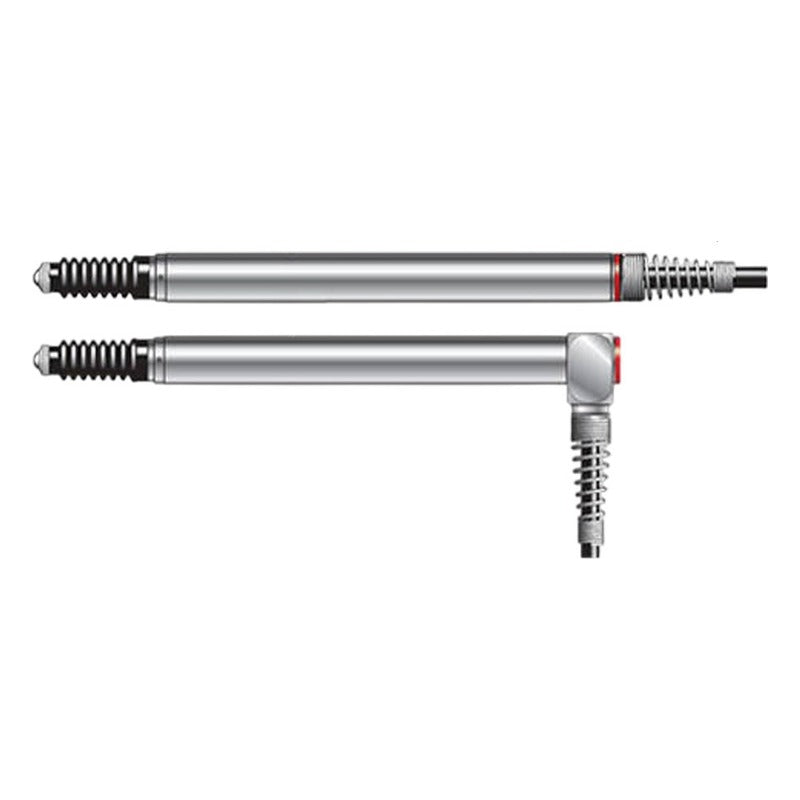

Marposs F50 series pencil gauge probes with +/-5 mm measuring range, offered as LVDT (F), half-bridge HBT (H) and further printed variants in axial or radial form with spring, pneumatic or vacuum actuation.

Key features

  • Measuring range +/-5 mm (10 mm)
  • Repeatability 0.4 um
  • 8 mm body diameter, IP65 protection
  • Axial (straight) and radial (90 deg) versions
  • Spring push, pneumatic push and vacuum variants
  • 2 m integral cable

Specifications

Measuring range +/-5 mm (10 mm)
Repeatability 0.4 um
Body diameter 8 mm
Cable length 2 m
Protection IP65
Operating temperature -10 to +65 C
Storage temperature -20 to +100 C
Code legend F=LVDT, H=HBT, D=digital; R=radial, P=pneumatic, V=vacuum
Source Marposs F50 series page / LVDT lineup
F50 Transducer: LVDT | Form: Axial | Actuation: Spring push
FR50 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Spring push
FPA50 Transducer: LVDT | Form: Axial | Actuation: Pneumatic push
FP50 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Pneumatic push
FVA50 Transducer: LVDT | Form: Axial | Actuation: Vacuum
FV50 Transducer: LVDT | Form: Radial (90 deg) | Actuation: Vacuum
H50 Transducer: HBT | Form: Axial | Actuation: Spring push
HR50 Transducer: HBT | Form: Radial (90 deg) | Actuation: Spring push
HPA50 Transducer: HBT | Form: Axial | Actuation: Pneumatic push
HP50 Transducer: HBT | Form: Radial (90 deg) | Actuation: Pneumatic push
HVA50 Transducer: HBT | Form: Axial | Actuation: Vacuum
HV50 Transducer: HBT | Form: Radial (90 deg) | Actuation: Vacuum
U50 Transducer: U series | Form: Axial | Actuation: Spring push
UR50 Transducer: U series | Form: Radial (90 deg) | Actuation: Spring push
UPA50 Transducer: U series | Form: Axial | Actuation: Pneumatic push
UP50 Transducer: U series | Form: Radial (90 deg) | Actuation: Pneumatic push
UVA50 Transducer: U series | Form: Axial | Actuation: Vacuum
UV50 Transducer: U series | Form: Radial (90 deg) | Actuation: Vacuum
D10 Transducer: Digital | Form: Axial | Actuation: Spring push
RD10 Transducer: Digital | Form: Radial (90 deg) | Actuation: Spring push
PAD10 Transducer: Digital | Form: Axial | Actuation: Pneumatic push
PD10 Transducer: Digital | Form: Radial (90 deg) | Actuation: Pneumatic push
VAD10 Transducer: Digital | Form: Axial | Actuation: Vacuum
VD10 Transducer: Digital | Form: Radial (90 deg) | Actuation: Vacuum
Gauge ProbeMarposs
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Marposs F50 Series Gauge Probe (+/-5 mm)

Brand Marposs·Gauge Probe

Available part numbers (24)

F50, FR50, FPA50, FP50, FVA50, FV50, H50, HR50, HPA50, HP50 + 14 more — see full table ↓

How to order

Send the Marposs part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F50Transducer: LVDT | Form: Axial | Actuation: Spring push
FR50Transducer: LVDT | Form: Radial (90 deg) | Actuation: Spring push
FPA50Transducer: LVDT | Form: Axial | Actuation: Pneumatic push
FP50Transducer: LVDT | Form: Radial (90 deg) | Actuation: Pneumatic push
FVA50Transducer: LVDT | Form: Axial | Actuation: Vacuum
FV50Transducer: LVDT | Form: Radial (90 deg) | Actuation: Vacuum
H50Transducer: HBT | Form: Axial | Actuation: Spring push
HR50Transducer: HBT | Form: Radial (90 deg) | Actuation: Spring push
HPA50Transducer: HBT | Form: Axial | Actuation: Pneumatic push
HP50Transducer: HBT | Form: Radial (90 deg) | Actuation: Pneumatic push
HVA50Transducer: HBT | Form: Axial | Actuation: Vacuum
HV50Transducer: HBT | Form: Radial (90 deg) | Actuation: Vacuum
U50Transducer: U series | Form: Axial | Actuation: Spring push
UR50Transducer: U series | Form: Radial (90 deg) | Actuation: Spring push
UPA50Transducer: U series | Form: Axial | Actuation: Pneumatic push
UP50Transducer: U series | Form: Radial (90 deg) | Actuation: Pneumatic push
UVA50Transducer: U series | Form: Axial | Actuation: Vacuum
UV50Transducer: U series | Form: Radial (90 deg) | Actuation: Vacuum
D10Transducer: Digital | Form: Axial | Actuation: Spring push
RD10Transducer: Digital | Form: Radial (90 deg) | Actuation: Spring push
PAD10Transducer: Digital | Form: Axial | Actuation: Pneumatic push
PD10Transducer: Digital | Form: Radial (90 deg) | Actuation: Pneumatic push
VAD10Transducer: Digital | Form: Axial | Actuation: Vacuum
VD10Transducer: Digital | Form: Radial (90 deg) | Actuation: Vacuum
