• MEAN WELL APC Series Constant Current LED Driver (8-35 W, Plastic Case)
1 1

MEAN WELL APC Series Constant Current LED Driver (8-35 W, Plastic Case)

MEAN WELL APC Series Constant Current LED Driver (8-35 W, Plastic Case)

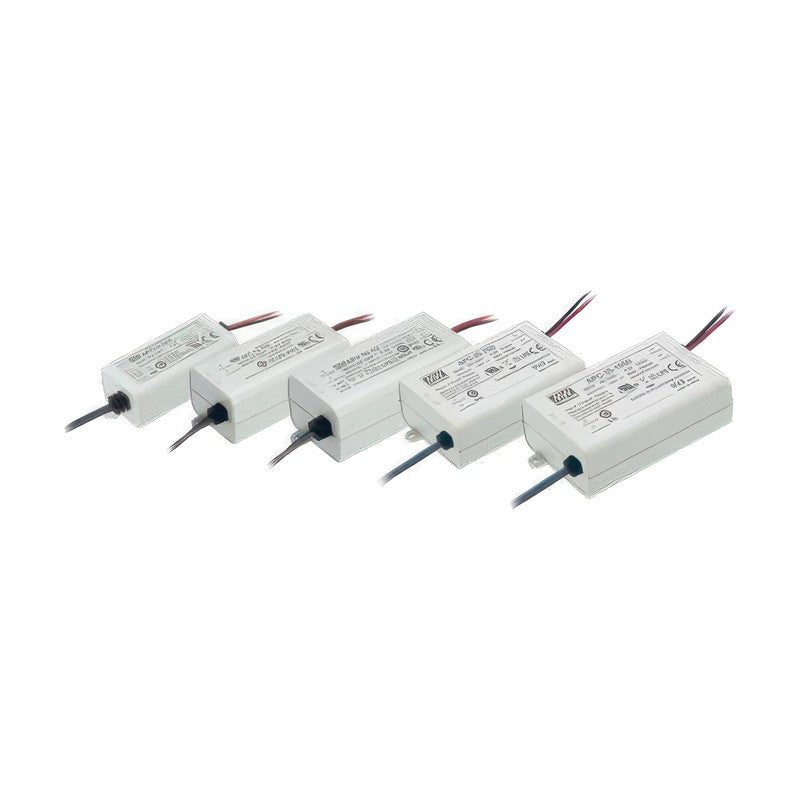

The APC series is a compact constant current LED driver in a fully isolated IP42 plastic case, rated 8 to 35 W.

Key features

  • It accepts universal AC input of 90~264 VAC with output currents from 250 to 1050 mA depending on the model
  • Isolation class II with no F.G.; Class 2 power unit / LPS (except APC-8, APC-25-350 and APC-35-350/500)
  • Short circuit and over voltage protection (over voltage except APC-8) and a 2-year warranty
  • Not intended for lighting applications in the EU

Specifications

Input voltage 90~264 VAC
Mode Constant current
IP rating IP42
APC-8 Output current: 250, 350, 500, 700 mA | Dimensions: 60x30x23.5 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
APC-12 Output current: 350, 700 mA | Dimensions: 77x40x29 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
APC-16 Output current: 350, 700 mA | Dimensions: 77x40x29 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
APC-25 Output current: 350, 500, 700, 1050 mA | Dimensions: 84x57x29.9 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
APC-35 Output current: 350, 500, 700, 1050 mA | Dimensions: 84x57x29.9 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
LED DriversMEAN WELL
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL APC Series Constant Current LED Driver (8-35 W, Plastic Case)

Brand MEAN WELL·LED Drivers

Available part numbers (5)

APC-8, APC-12, APC-16, APC-25, APC-35

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APC-8Output current: 250, 350, 500, 700 mA | Dimensions: 60x30x23.5 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
APC-12Output current: 350, 700 mA | Dimensions: 77x40x29 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
APC-16Output current: 350, 700 mA | Dimensions: 77x40x29 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
APC-25Output current: 350, 500, 700, 1050 mA | Dimensions: 84x57x29.9 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
APC-35Output current: 350, 500, 700, 1050 mA | Dimensions: 84x57x29.9 mm | Input voltage: 90~264 VAC | Mode: Constant current | IP rating: IP42
