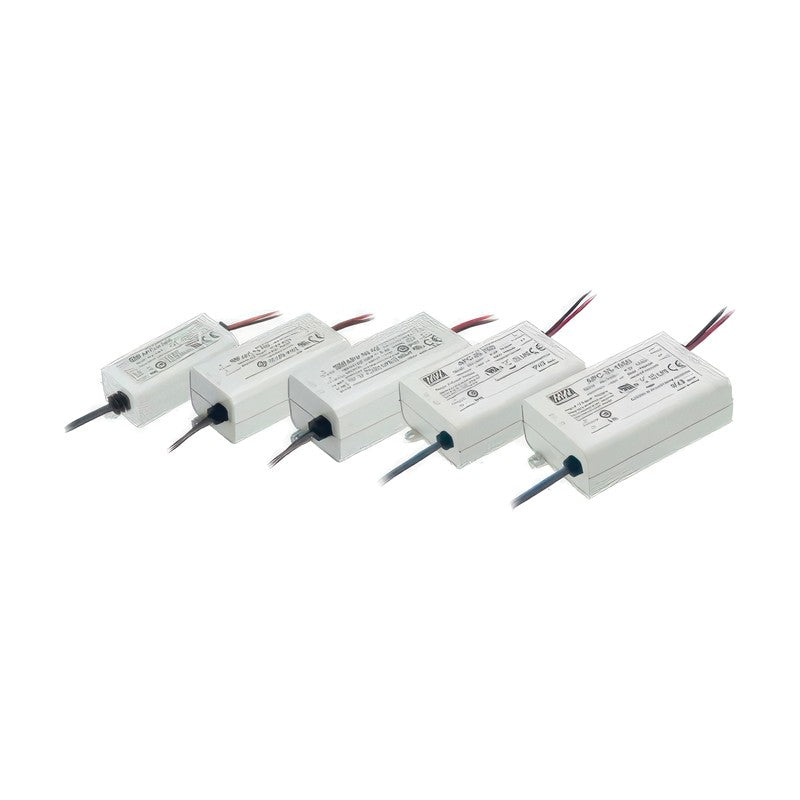

MEAN WELL APV Series Constant Voltage LED Driver (8-35 W, Plastic Case)

MEAN WELL APV Series Constant Voltage LED Driver (8-35 W, Plastic Case)

The APV series is a compact constant voltage LED driver in a fully isolated IP42 plastic case, rated 8 to 35 W.

Key features

  • It accepts universal AC input of 90~264 VAC and offers 5 to 36 V output depending on the model
  • Isolation class II with no F.G.; Class 2 power unit / LPS (except APV-8)
  • Protections include short circuit, overload and over voltage
  • No-load power consumption is below 0.5 W for APV-8, and the series carries a 2-year warranty
  • Not intended for lighting applications in the EU

Specifications

Input voltage 90~264 VAC
Mode Constant voltage
IP rating IP42
APV-8 Output voltage: 5, 12, 24 V | Dimensions: 60x30x23.5 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
APV-12 Output voltage: 5, 12, 15, 24 V | Dimensions: 77x40x29 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
APV-16 Output voltage: 5, 12, 15, 24 V | Dimensions: 77x40x29 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
APV-25 Output voltage: 5, 12, 15, 24, 36 V | Dimensions: 84x57x29 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
APV-35 Output voltage: 5, 12, 15, 24, 36 V | Dimensions: 84x57x29 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
LED DriversMEAN WELL
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL APV Series Constant Voltage LED Driver (8-35 W, Plastic Case)

Brand MEAN WELL·LED Drivers

Available part numbers (5)

APV-8, APV-12, APV-16, APV-25, APV-35

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APV-8Output voltage: 5, 12, 24 V | Dimensions: 60x30x23.5 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
APV-12Output voltage: 5, 12, 15, 24 V | Dimensions: 77x40x29 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
APV-16Output voltage: 5, 12, 15, 24 V | Dimensions: 77x40x29 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
APV-25Output voltage: 5, 12, 15, 24, 36 V | Dimensions: 84x57x29 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
APV-35Output voltage: 5, 12, 15, 24, 36 V | Dimensions: 84x57x29 mm | Input voltage: 90~264 VAC | Mode: Constant voltage | IP rating: IP42
