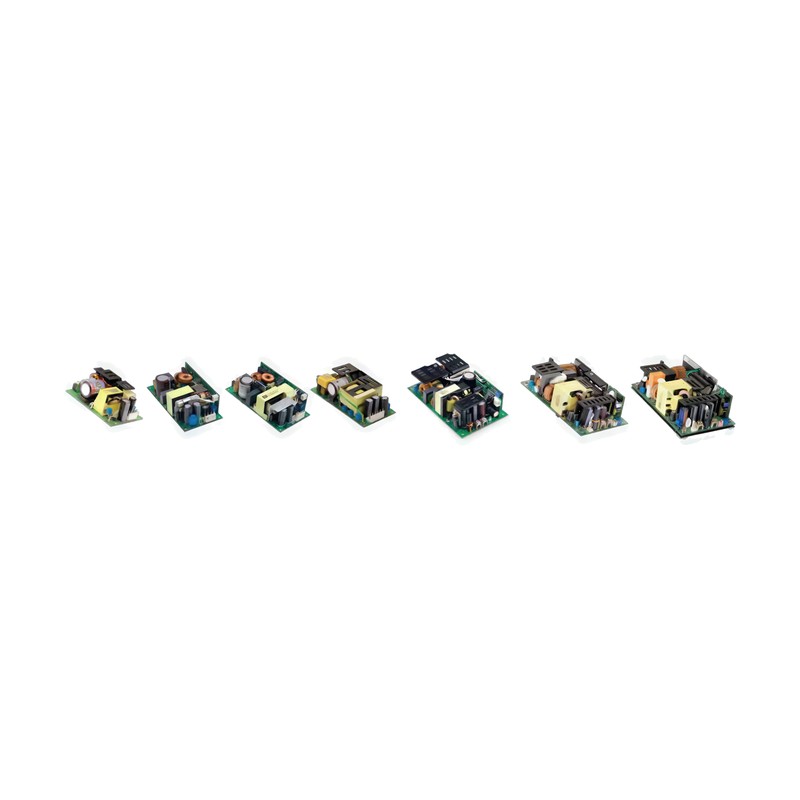

MEAN WELL EPP Series Single Output Industrial PCB Type Power Supply with PFC (100-500W)

MEAN WELL EPP Series Single Output Industrial PCB Type Power Supply with PFC (100-500W)

The EPP series is a 100-500W single output industrial PCB (open frame) type AC-DC power supply with active PFC.

Key features

  • Key features: Universal AC input/Full range; Built-in Active PFC; ClassI or ClassII installations; No load power consumption<0.5W; High efficiency up to 94%
  • Also: Protections: Short Circuit/Overload/; 12V for external FAN supply (EPP-300~500); PG signal & remote sense function(EPP-300~500); Operating altitude up to 5000 meters(EPP-120S~500)
EPP-120S Board size: 3"x 2" | Rating basis: Convection/Peak 10 sec. | Input: 80~264VAC | Output: 12V, 9.5A / 11.8A; 15V, 7.6A / 9.5A; 24V, 5A / 6.25A; 27V, 4.44A / 5.55A; 48V, 2.5A / 3.125A | Dimensions: 76.2x50.8x28 mm
EPP-100 Board size: 4"x 2" | Rating basis: Convection/20CFM | Input: 90~264VAC | Output: 12V, 6.3A / 8.5A; 15V, 5A / 6.67A; 24V, 3.2A / 4.2A; 27V, 2.8A / 3.71A; 48V, 1.6A / 2.1A | Dimensions: 101.6x50.8x29 mm
EPP-150 Board size: 4"x 2" | Rating basis: Convection/20CFM | Input: 90~264VAC | Output: 12V, 8.4A / 12.5A; 15V, 6.7A / 10A; 24V, 4.2A / 6.25A; 27V, 3.71A / 5.56A; 48V, 2.1A / 3.125A | Dimensions: 101.6x50.8x29 mm
EPP-200 Board size: 4"x 2" | Rating basis: Convection/10CFM | Input: 80~264VAC | Output: 12V, 11.7A / 16.7A; 15V, 9.4A / 13.4A; 24V, 5.9A / 8.4A; 27V, 5.3A / 7.5A; 48V, 3A / 4.2A | Dimensions: 101.6x50.8x29 mm
EPP-300 Board size: 5"x 3" | Rating basis: Convection/20.5CFM | Input: 90~264VAC | Output: 12V, 16.67A / 25A; 15V, 13.33A / 20A; 24V, 8.33A / 12.5A; 27V, 7.4A / 11.12A; 48V, 4.17A / 6.25A | Dimensions: 127x76.2x35 mm
EPP-400 Board size: 5"x 3" | Rating basis: Convection/25CFM | Input: 80~264VAC | Output: 12V, 20.8A / 33.3A; 15V, 16.7A / 26.7A; 24V, 10.5A / 16.7A; 27V, 9.3A / 14.9A; 36V, 7A / 11.2A; 48V, 5.3A / 8.4A | Dimensions: 127x76.2x35 mm
EPP-500 Board size: 5"x 3" | Rating basis: Convection/25CFM | Input: 80~264VAC | Output: 12V, 26.7A / 41.6A; 15V, 21.3A / 33.3A; 18V, 17.8A / 27.8A; 24V, 13.4A / 20.8A; 27V, 11.9A / 18.5A; 36V, 8.9A / 13.9A; 48V, 6.7A / 10.4A; 54V, 5.93A / 9.26A | Dimensions: 127x76.2x41 mm
Open Frame Power SuppliesMEAN WELL
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL EPP Series Single Output Industrial PCB Type Power Supply with PFC (100-500W)

Brand MEAN WELL·Open Frame Power Supplies

Available part numbers (7)

EPP-120S, EPP-100, EPP-150, EPP-200, EPP-300, EPP-400, EPP-500

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EPP-120SBoard size: 3"x 2" | Rating basis: Convection/Peak 10 sec. | Input: 80~264VAC | Output: 12V, 9.5A / 11.8A; 15V, 7.6A / 9.5A; 24V, 5A / 6.25A; 27V, 4.44A / 5.55A; 48V, 2.5A / 3.125A | Dimensions: 76.2x50.8x28 mm
EPP-100Board size: 4"x 2" | Rating basis: Convection/20CFM | Input: 90~264VAC | Output: 12V, 6.3A / 8.5A; 15V, 5A / 6.67A; 24V, 3.2A / 4.2A; 27V, 2.8A / 3.71A; 48V, 1.6A / 2.1A | Dimensions: 101.6x50.8x29 mm
EPP-150Board size: 4"x 2" | Rating basis: Convection/20CFM | Input: 90~264VAC | Output: 12V, 8.4A / 12.5A; 15V, 6.7A / 10A; 24V, 4.2A / 6.25A; 27V, 3.71A / 5.56A; 48V, 2.1A / 3.125A | Dimensions: 101.6x50.8x29 mm
EPP-200Board size: 4"x 2" | Rating basis: Convection/10CFM | Input: 80~264VAC | Output: 12V, 11.7A / 16.7A; 15V, 9.4A / 13.4A; 24V, 5.9A / 8.4A; 27V, 5.3A / 7.5A; 48V, 3A / 4.2A | Dimensions: 101.6x50.8x29 mm
EPP-300Board size: 5"x 3" | Rating basis: Convection/20.5CFM | Input: 90~264VAC | Output: 12V, 16.67A / 25A; 15V, 13.33A / 20A; 24V, 8.33A / 12.5A; 27V, 7.4A / 11.12A; 48V, 4.17A / 6.25A | Dimensions: 127x76.2x35 mm
EPP-400Board size: 5"x 3" | Rating basis: Convection/25CFM | Input: 80~264VAC | Output: 12V, 20.8A / 33.3A; 15V, 16.7A / 26.7A; 24V, 10.5A / 16.7A; 27V, 9.3A / 14.9A; 36V, 7A / 11.2A; 48V, 5.3A / 8.4A | Dimensions: 127x76.2x35 mm
EPP-500Board size: 5"x 3" | Rating basis: Convection/25CFM | Input: 80~264VAC | Output: 12V, 26.7A / 41.6A; 15V, 21.3A / 33.3A; 18V, 17.8A / 27.8A; 24V, 13.4A / 20.8A; 27V, 11.9A / 18.5A; 36V, 8.9A / 13.9A; 48V, 6.7A / 10.4A; 54V, 5.93A / 9.26A | Dimensions: 127x76.2x41 mm
