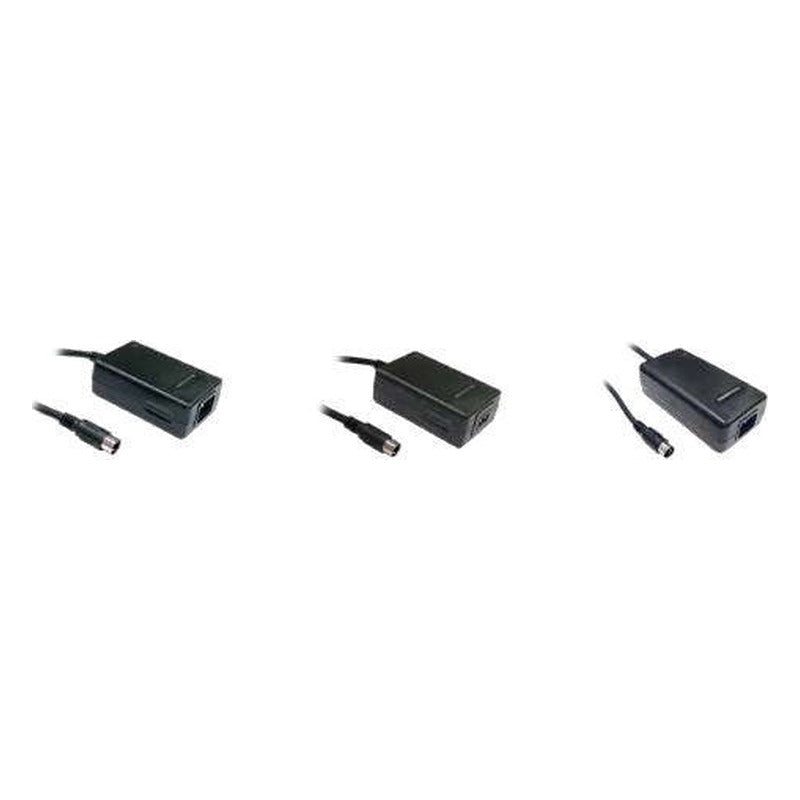

• MEAN WELL GP Series Triple Output Industrial Desktop Adaptor (25W/50W)
1 1

MEAN WELL GP Series Triple Output Industrial Desktop Adaptor (25W/50W)

MEAN WELL GP Series Triple Output Industrial Desktop Adaptor (25W/50W)

The GP series is a 25W/50W triple output energy saving industrial desktop type AC-DC adaptor.

Key features

  • Key features: Universal AC input/Full range: 90~264VAC; No load power consumption <0.3W; Energy efficiency Level VI; Complies with EISA 2007/DoE & EU ErP; -20~+70°C wide range working temp
  • Also: Class I power unit (with earth pin) for A type; Class II power unit (without earth pin) for B type; Fully enclosed plastic case; LED indicator for power on; Dual output available (Optional)
GP25□13A CH1 output: 5V, 0.5~2.5A | CH2 output: 12V, 0.2~1.2A | CH3 output: -5V, 0.1~0.3A
GP25□13D CH1 output: 5V, 0.5~2.5A | CH2 output: 12V, 0.2~1A | CH3 output: -12V, 0.1~0.3A
GP25□14E CH1 output: 5V, 0.5~2.5A | CH2 output: 15V, 0.1~0.8A | CH3 output: -15V, 0.1~0.3A
GP50A13A CH1 output: 5V, 0~4A | CH2 output: 12V, 0.3~2A | CH3 output: -5V, 0.1~0.5A
GP50A13D CH1 output: 5V, 0~4A | CH2 output: 12V, 0.3~2A | CH3 output: -12V, 0.1~0.5A
GP50A14E CH1 output: 5V, 0~4A | CH2 output: 15V, 0.3~1.5A | CH3 output: -15V, 0.1~0.5A
GP50A58F Note: Optional | CH1 output: 16V, 0.4~2A | CH2 output: 48V, 30~150mA | CH3 output: -16V, 0.4~2A
AdaptorsMEAN WELL
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL GP Series Triple Output Industrial Desktop Adaptor (25W/50W)

Brand MEAN WELL·Adaptors

Available part numbers (7)

GP25□13A, GP25□13D, GP25□14E, GP50A13A, GP50A13D, GP50A14E, GP50A58F

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GP25□13ACH1 output: 5V, 0.5~2.5A | CH2 output: 12V, 0.2~1.2A | CH3 output: -5V, 0.1~0.3A
GP25□13DCH1 output: 5V, 0.5~2.5A | CH2 output: 12V, 0.2~1A | CH3 output: -12V, 0.1~0.3A
GP25□14ECH1 output: 5V, 0.5~2.5A | CH2 output: 15V, 0.1~0.8A | CH3 output: -15V, 0.1~0.3A
GP50A13ACH1 output: 5V, 0~4A | CH2 output: 12V, 0.3~2A | CH3 output: -5V, 0.1~0.5A
GP50A13DCH1 output: 5V, 0~4A | CH2 output: 12V, 0.3~2A | CH3 output: -12V, 0.1~0.5A
GP50A14ECH1 output: 5V, 0~4A | CH2 output: 15V, 0.3~1.5A | CH3 output: -15V, 0.1~0.5A
GP50A58FNote: Optional | CH1 output: 16V, 0.4~2A | CH2 output: 48V, 30~150mA | CH3 output: -16V, 0.4~2A

Need a different model, or a part not listed here? Send us your parts list →
