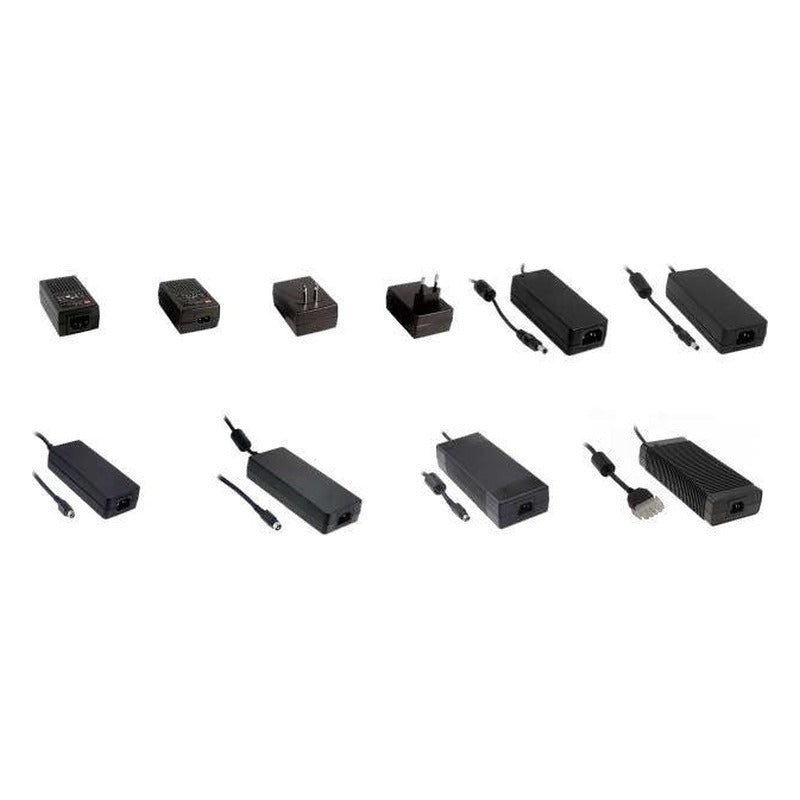

MEAN WELL GST Series Global Certified Industrial Desktop Adaptor (18-360W)

MEAN WELL GST Series Global Certified Industrial Desktop Adaptor (18-360W)

The GST series is an 18-360W globally certified, energy saving industrial desktop type AC-DC adaptor.

Key features

  • Key features: Global Certified; No load power consumption <0.075W~0.5W; 450W peak power for 3 sec.(Only GST360); Energy efficiency Level VI; Complies with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP & CoC Version 5
  • Also: 3 pole IEC320-C14 AC inlet (A-Type) 2 pole AC inlet (B/E/U-Type); Fanless design with -30~+70°C wide range working temp; Protections: Short Circuit/Overload/Over Voltage/Over Temp.(>=60W); Fully enclosed plastic case
GST18□ Input: 85~264VAC | Output: 5V, 0~3A; 7.5V, 0~2A; 9V, 0~2A; 12V, 0~1.5A; 15V, 0~1.2A; 18V, 0~1A; 24V, 0~0.75A; 28V, 0~0.64A; 48V, 0~0.375A
GST25□ Input: 85~264VAC | Output: 5V, 0~4A; 7.5V, 0~2.93A; 9V, 0~2.55A; 12V, 0~2.08A; 15V, 0~1.66A; 18V, 0~1.38A; 24V, 0~1.04A; 28V, 0~0.89A; 48V, 0~0.52A
GST36□ Input: 85~264VAC | Output: 5V, 0~4.3A; 9V, 0~3.11A; 12V, 0~3A; 24V, 0~1.5A; 48V, 0~0.75A
GST40A Input: 90~264VAC | Output: 5V, 0~5A; 7.5V, 0~5.34A; 9V, 0~4.45A; 12V, 0~3.34A; 15V, 0~2.67A; 18V, 0~2.22A; 24V, 0~1.67A; 48V, 0~0.84A
GST60A Input: 90~264VAC | Output: 5V, 0~6A; 7.5V, 0~6A; 9V, 0~6A; 12V, 0~5A; 15V, 0~4A; 18V, 0~3.33A; 24V, 0~2.5A; 48V, 0~1.25A
GST90A Input: 90~264VAC | Output: 12V, 0~6.67A; 15V, 0~6A; 19V, 0~4.74A; 24V, 0~3.75A; 48V, 0~1.87A
GST120A Input: 85~264VAC | Output: 12V, 0~8.5A; 15V, 0~7A; 20V, 0~6A; 24V, 0~5A; 48V, 0~2.5A
GST160A Input: 85~264VAC | Output: 12V, 0~11.5A; 15V, 0~9.6A; 20V, 0~8A; 24V, 0~6.67A; 36V, 0~4.44A; 48V, 0~3.34A
GST220A Input: 85~264VAC | Output: 12V, 0~15A; 15V, 0~13.4A; 20V, 0~11A; 24V, 0~9.2A; 36V, 0~6.1A; 48V, 0~4.6A
GST280A Input: 85~264VAC | Output: 12V, 0~21A; 15V, 0~17A; 20V, 0~13A; 24V, 0~11.67A; 48V, 0~5.84A
GST360A Input: 85~264VAC | Output: 12V, 0~27.5A; 15V, 0~22.7A; 24V, 0~15A; 36V, 0~10A; 48V, 0~7.5A; 55V, 0~6.55A
GST360B Input: 85~264VAC | Output: 12V, 0~27.5; 15V, 0~22.7; 24V, 0~15A; 36V, 0~10A; 48V, 0~7.5A; 55V, 0~6.55
AdaptorsMEAN WELL
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL GST Series Global Certified Industrial Desktop Adaptor (18-360W)

Brand MEAN WELL·Adaptors

Available part numbers (12)

GST18□, GST25□, GST36□, GST40A, GST60A, GST90A, GST120A, GST160A, GST220A, GST280A + 2 more — see full table ↓

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GST18□Input: 85~264VAC | Output: 5V, 0~3A; 7.5V, 0~2A; 9V, 0~2A; 12V, 0~1.5A; 15V, 0~1.2A; 18V, 0~1A; 24V, 0~0.75A; 28V, 0~0.64A; 48V, 0~0.375A
GST25□Input: 85~264VAC | Output: 5V, 0~4A; 7.5V, 0~2.93A; 9V, 0~2.55A; 12V, 0~2.08A; 15V, 0~1.66A; 18V, 0~1.38A; 24V, 0~1.04A; 28V, 0~0.89A; 48V, 0~0.52A
GST36□Input: 85~264VAC | Output: 5V, 0~4.3A; 9V, 0~3.11A; 12V, 0~3A; 24V, 0~1.5A; 48V, 0~0.75A
GST40AInput: 90~264VAC | Output: 5V, 0~5A; 7.5V, 0~5.34A; 9V, 0~4.45A; 12V, 0~3.34A; 15V, 0~2.67A; 18V, 0~2.22A; 24V, 0~1.67A; 48V, 0~0.84A
GST60AInput: 90~264VAC | Output: 5V, 0~6A; 7.5V, 0~6A; 9V, 0~6A; 12V, 0~5A; 15V, 0~4A; 18V, 0~3.33A; 24V, 0~2.5A; 48V, 0~1.25A
GST90AInput: 90~264VAC | Output: 12V, 0~6.67A; 15V, 0~6A; 19V, 0~4.74A; 24V, 0~3.75A; 48V, 0~1.87A
GST120AInput: 85~264VAC | Output: 12V, 0~8.5A; 15V, 0~7A; 20V, 0~6A; 24V, 0~5A; 48V, 0~2.5A
GST160AInput: 85~264VAC | Output: 12V, 0~11.5A; 15V, 0~9.6A; 20V, 0~8A; 24V, 0~6.67A; 36V, 0~4.44A; 48V, 0~3.34A
GST220AInput: 85~264VAC | Output: 12V, 0~15A; 15V, 0~13.4A; 20V, 0~11A; 24V, 0~9.2A; 36V, 0~6.1A; 48V, 0~4.6A
GST280AInput: 85~264VAC | Output: 12V, 0~21A; 15V, 0~17A; 20V, 0~13A; 24V, 0~11.67A; 48V, 0~5.84A
GST360AInput: 85~264VAC | Output: 12V, 0~27.5A; 15V, 0~22.7A; 24V, 0~15A; 36V, 0~10A; 48V, 0~7.5A; 55V, 0~6.55A
GST360BInput: 85~264VAC | Output: 12V, 0~27.5; 15V, 0~22.7; 24V, 0~15A; 36V, 0~10A; 48V, 0~7.5A; 55V, 0~6.55
