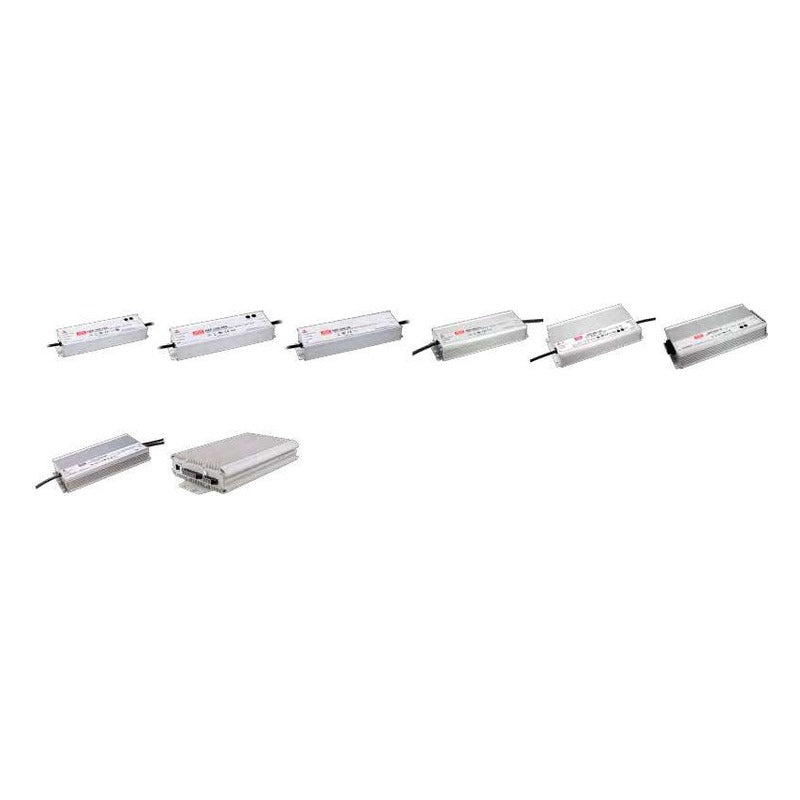

MEAN WELL HEP Series Power Supply for Harsh Environments (100-2300W)

MEAN WELL HEP Series Power Supply for Harsh Environments (100-2300W)

The HEP series is a 100-2300W fanless, IP65/IP67/IP68 rated power supply for harsh environments with high/low temperature, humidity and vibration.

Key features

  • Also: Meet 6KV surge immunity level; Withstand 10G vibration test; Operating altitude up 5000 meters; Protections: Short Circuit/Overload/Over Voltage/Over Temp
HEP-100-□ Output: 12V, 0~8.34A; 15V, 0~6.67A; 24V, 0~4A; 36V, 0~2.65A; 48V, 0~2A; 54V, 0~1.77A | Dimensions: 220x68x38.8 mm
HEP-150-□ Output: 12V, 0~12.5A; 15V, 0~10A; 24V, 0~6.3A; 36V, 0~4.2A; 48V, 0~3.2A; 54V, 0~2.8A | Dimensions: 228x68x38.8 mm
HEP-185-□ Output: 12V, 0~13A; 15V, 0~11.5A; 24V, 0~7.8A; 36V, 0~5.2A; 48V, 0~3.9A; 54V, 0~3.45A | Dimensions: 228x68x38.8 mm
HEP-240-□ Output: 12V, 0~16A; 15V, 0~15A; 24V, 0~10A; 36V, 0~6.7A; 48V, 0~5A; 54V, 0~4.45A | Dimensions: 244.2x68x38.8 mm
HEP-320-□ Output: 12V, 0~22.0A; 15V, 0~19.0A; 24V, 0~13.34A; 36V, 0~8.90A; 48V, 0~6.70A; 54V, 0~5.95A | Dimensions: 252x90x43.8 mm
HEP-480-□ Output: 24V, 0~20A; 36V, 0~13.3A; 48V, 0~10A; 54V, 0~8.9A | Dimensions: 262x125x43.8 mm
HEP-600 Output: 12V, 0~40A; 15V, 0~36A; 20V, 0~28A; 24V, 0~25A; 30V, 0~20A; 36V, 0~16.7A; 42V, 0~14.3A; 48V, 0~12.5A; 54V, 0~11.2A | Dimensions: 280x144x48.5 mm
HEP-1000-○ Output: Power supply: 24V, 0~42A; 48V, 0~21A; 100V, 0~10A; Charger: 28.8V, 0~35A; 57.6V, 0~17.5A; 115.2V, 0~8.7A | Dimensions: 310x144x48.5 mm
HEP-2300-○ Output: 55V, 0~48A; 57.6V, 0~48A; 115V, 0~20A; 230V, 0~10.6A; 380V, 0~6.9A (power/charger versions) | Dimensions: 375x280x88 mm
Enclosed Switching Power SuppliesMEAN WELL
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL HEP Series Power Supply for Harsh Environments (100-2300W)

Brand MEAN WELL·Enclosed Switching Power Supplies

Available part numbers (9)

HEP-100-□, HEP-150-□, HEP-185-□, HEP-240-□, HEP-320-□, HEP-480-□, HEP-600, HEP-1000-○, HEP-2300-○

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HEP-100-□Output: 12V, 0~8.34A; 15V, 0~6.67A; 24V, 0~4A; 36V, 0~2.65A; 48V, 0~2A; 54V, 0~1.77A | Dimensions: 220x68x38.8 mm
HEP-150-□Output: 12V, 0~12.5A; 15V, 0~10A; 24V, 0~6.3A; 36V, 0~4.2A; 48V, 0~3.2A; 54V, 0~2.8A | Dimensions: 228x68x38.8 mm
HEP-185-□Output: 12V, 0~13A; 15V, 0~11.5A; 24V, 0~7.8A; 36V, 0~5.2A; 48V, 0~3.9A; 54V, 0~3.45A | Dimensions: 228x68x38.8 mm
HEP-240-□Output: 12V, 0~16A; 15V, 0~15A; 24V, 0~10A; 36V, 0~6.7A; 48V, 0~5A; 54V, 0~4.45A | Dimensions: 244.2x68x38.8 mm
HEP-320-□Output: 12V, 0~22.0A; 15V, 0~19.0A; 24V, 0~13.34A; 36V, 0~8.90A; 48V, 0~6.70A; 54V, 0~5.95A | Dimensions: 252x90x43.8 mm
HEP-480-□Output: 24V, 0~20A; 36V, 0~13.3A; 48V, 0~10A; 54V, 0~8.9A | Dimensions: 262x125x43.8 mm
HEP-600Output: 12V, 0~40A; 15V, 0~36A; 20V, 0~28A; 24V, 0~25A; 30V, 0~20A; 36V, 0~16.7A; 42V, 0~14.3A; 48V, 0~12.5A; 54V, 0~11.2A | Dimensions: 280x144x48.5 mm
HEP-1000-○Output: Power supply: 24V, 0~42A; 48V, 0~21A; 100V, 0~10A; Charger: 28.8V, 0~35A; 57.6V, 0~17.5A; 115.2V, 0~8.7A | Dimensions: 310x144x48.5 mm
HEP-2300-○Output: 55V, 0~48A; 57.6V, 0~48A; 115V, 0~20A; 230V, 0~10.6A; 380V, 0~6.9A (power/charger versions) | Dimensions: 375x280x88 mm
