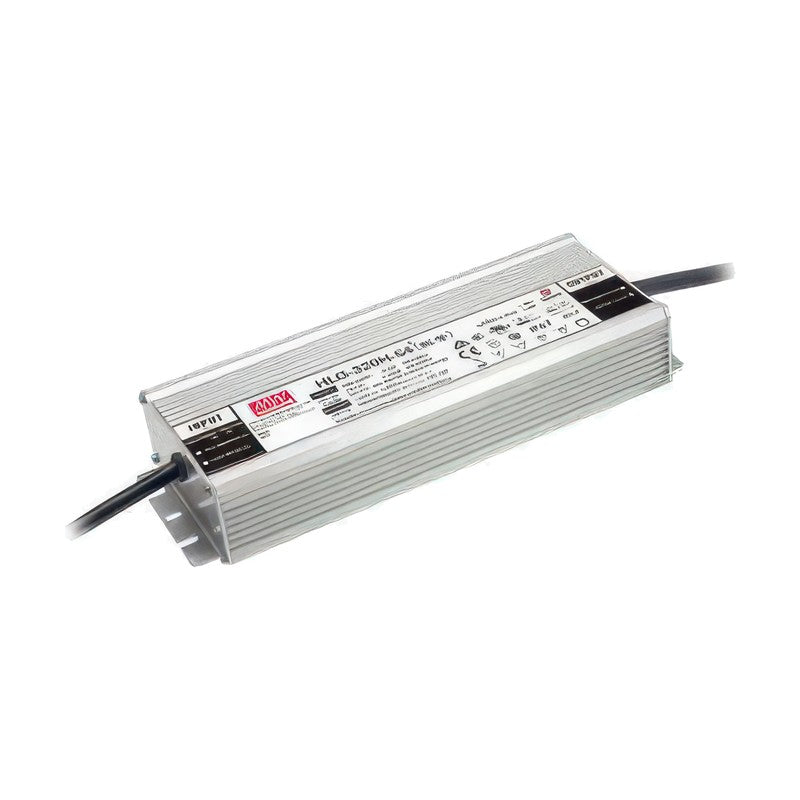

MEAN WELL HLG Series Constant Voltage + Constant Current LED Driver (40-600 W, IP67/IP65)

MEAN WELL HLG Series Constant Voltage + Constant Current LED Driver (40-600 W, IP67/IP65)

The HLG series is a constant voltage + constant current LED driver in a metal housing with Class I design, covering 40 to 600 W.

Key features

  • Wide 90~305 VAC input, efficiency up to 94% and 4 kV surge immunity (IEC61000-4-5)
  • Type HL rated for use in Class I, Division 2 hazardous location luminaires; Class 2 power unit for HLG-40H~100H
  • Multiple dimming variants (A, B, AB, C, D, D2/Dx, BL) and IP65/IP67 depending on type
  • Protections: short circuit, over current, over voltage and over temperature. 7-year warranty

Specifications

Input voltage 90~305 VAC
Model suffix options A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-40H Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 171x61.5x36.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-60H Output voltage: 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 171x61.5x36.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-80H Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 195.6x61.5x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-100H Output voltage: 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 220x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-120H Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 220x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-150H Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 228x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-185H Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 228x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-240H Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 244x68x38.8 C-Type: 251x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-320H Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 252x90x43.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-480H Output voltage: 24, 30, 36, 42, 48, 54 V | Dimensions: 262x125x43.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-600H Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 280x144x48.5 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
LED DriversMEAN WELL
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL HLG Series Constant Voltage + Constant Current LED Driver (40-600 W, IP67/IP65)

Brand MEAN WELL·LED Drivers

Available part numbers (11)

HLG-40H, HLG-60H, HLG-80H, HLG-100H, HLG-120H, HLG-150H, HLG-185H, HLG-240H, HLG-320H, HLG-480H + 1 more — see full table ↓

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HLG-40HOutput voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 171x61.5x36.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-60HOutput voltage: 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 171x61.5x36.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-80HOutput voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 195.6x61.5x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-100HOutput voltage: 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 220x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-120HOutput voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 220x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-150HOutput voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 228x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-185HOutput voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 228x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-240HOutput voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 244x68x38.8 C-Type: 251x68x38.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-320HOutput voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 252x90x43.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-480HOutput voltage: 24, 30, 36, 42, 48, 54 V | Dimensions: 262x125x43.8 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)
HLG-600HOutput voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 280x144x48.5 mm | Input voltage: 90~305 VAC | Model suffix options: A, B, AB, C (240/320 W only), D (40~480 W), D2/Dx (480 W only), BL (80 W only), Blank (40~320 W)

Need a different model, or a part not listed here? Send us your parts list →
