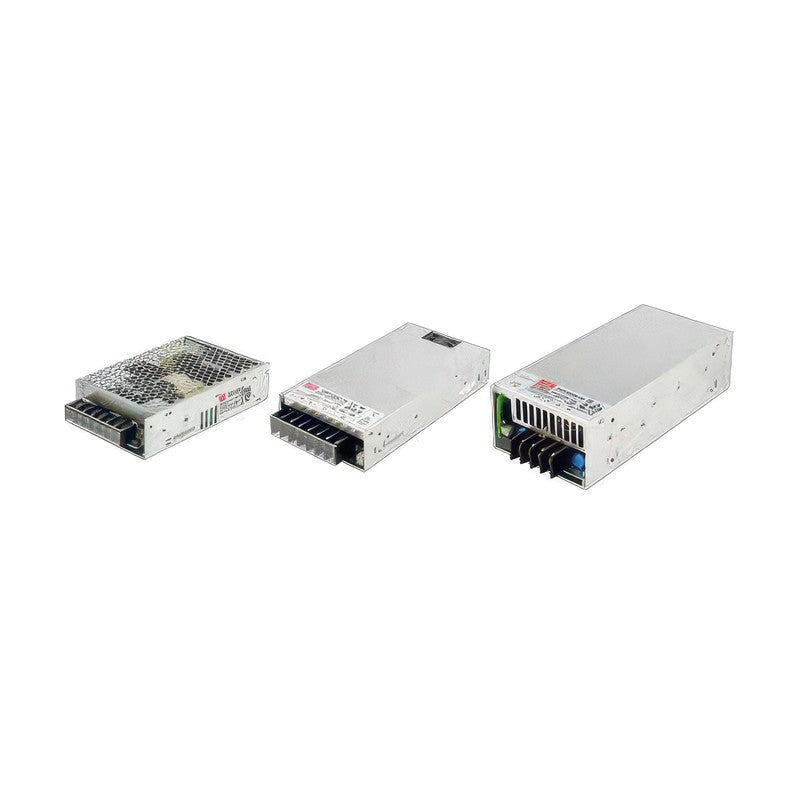

MEAN WELL HRP-N3 Series High Reliability & High Peak Enclosed Power Supply (150-1000W)

MEAN WELL HRP-N3 Series High Reliability & High Peak Enclosed Power Supply (150-1000W)

The HRP-N3 series is a 150-1000W high reliability enclosed type AC-DC power supply with active PFC and high peak power capability.

Key features

  • Key features: Universal full range input: 85~264 VAC; Withstand 300 VAC surge input for 5 sec; Built-in active PFC function, PF > 0.95; 350% peak power capability; High efficiency up to 94%
  • Also: Withstand 5G vibration; Protections: Short Circuit/Overload/; Cooling by free air convection (HRP-150N3); Built-in cooling fan ON/OFF control (HRP-300N3/600N3/1000N3)
HRP-150N3 Output: 12V, 0~13A; 24V, 0~6.5A; 36V, 0~4.3A; 48V, 0~3.3A | Dimensions: 159x97x38 mm
HRP-300N3 Output: 12V, 0~27A; 24V, 0~14A; 36V, 0~9A; 48V, 0~7A | Dimensions: 199x105x41 mm
HRP-600N3 Output: 12V, 0~53A; 24V, 0~27A; 36V, 0~17.5A; 48V, 0~13A | Dimensions: 218x105x63.5 mm
HRPG-1000N3 Output: 12V, 0~80A; 24V, 0~42A; 36V, 0~28A; 48V, 0~21A | Dimensions: 218x105x61.5 mm
Enclosed Switching Power SuppliesMEAN WELL
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL HRP-N3 Series High Reliability & High Peak Enclosed Power Supply (150-1000W)

Brand MEAN WELL·Enclosed Switching Power Supplies

Available part numbers (4)

HRP-150N3, HRP-300N3, HRP-600N3, HRPG-1000N3

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRP-150N3Output: 12V, 0~13A; 24V, 0~6.5A; 36V, 0~4.3A; 48V, 0~3.3A | Dimensions: 159x97x38 mm
HRP-300N3Output: 12V, 0~27A; 24V, 0~14A; 36V, 0~9A; 48V, 0~7A | Dimensions: 199x105x41 mm
HRP-600N3Output: 12V, 0~53A; 24V, 0~27A; 36V, 0~17.5A; 48V, 0~13A | Dimensions: 218x105x63.5 mm
HRPG-1000N3Output: 12V, 0~80A; 24V, 0~42A; 36V, 0~28A; 48V, 0~21A | Dimensions: 218x105x61.5 mm
