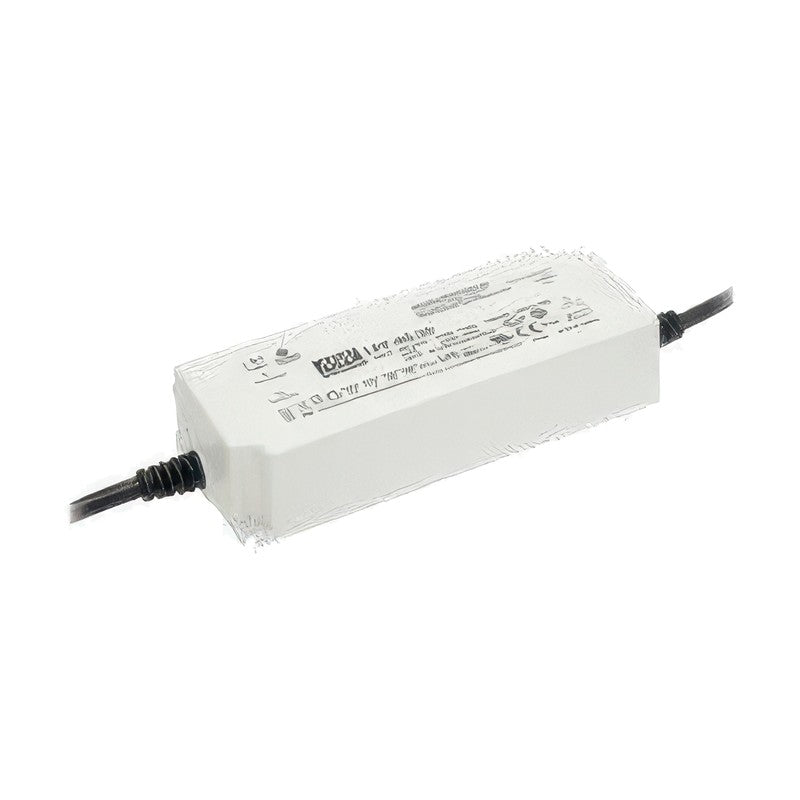

MEAN WELL LPF Series Constant Voltage + Constant Current LED Driver (16-90 W, IP67)

MEAN WELL LPF Series Constant Voltage + Constant Current LED Driver (16-90 W, IP67)

The LPF series is a constant voltage + constant current LED driver in a fully isolated IP67 plastic case, covering 16 to 90 W.

Key features

  • The D-type operates in constant current mode only and has built-in 3 in 1 dimming (1~10 VDC, PWM signal or resistance; optional for LPF-16/16D)
  • Wide 90~305 VAC input, isolation class II/2 with no F.G
  • Protections: short circuit, over current, over voltage and over temperature. 5-year warranty

Specifications

Input voltage 90~305 VAC
IP rating IP67
LPF-16 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 148x40x32 mm | Printed as: LPF-16(D) | Input voltage: 90~305 VAC | IP rating: IP67
LPF-25 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 148x40x32 mm | Printed as: LPF-25(D) | Input voltage: 90~305 VAC | IP rating: IP67
LPF-40 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 162.5x43x32 mm | Printed as: LPF-40(D) | Input voltage: 90~305 VAC | IP rating: IP67
LPF-60 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 162.5x43x32 mm | Printed as: LPF-60(D) | Input voltage: 90~305 VAC | IP rating: IP67
LPF-90 Output voltage: 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 161x61x36 mm | Printed as: LPF-90(D) | Input voltage: 90~305 VAC | IP rating: IP67
LED DriversMEAN WELL
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL LPF Series Constant Voltage + Constant Current LED Driver (16-90 W, IP67)

Brand MEAN WELL·LED Drivers

Available part numbers (5)

LPF-16, LPF-25, LPF-40, LPF-60, LPF-90

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LPF-16Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 148x40x32 mm | Printed as: LPF-16(D) | Input voltage: 90~305 VAC | IP rating: IP67
LPF-25Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 148x40x32 mm | Printed as: LPF-25(D) | Input voltage: 90~305 VAC | IP rating: IP67
LPF-40Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 162.5x43x32 mm | Printed as: LPF-40(D) | Input voltage: 90~305 VAC | IP rating: IP67
LPF-60Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 162.5x43x32 mm | Printed as: LPF-60(D) | Input voltage: 90~305 VAC | IP rating: IP67
LPF-90Output voltage: 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 161x61x36 mm | Printed as: LPF-90(D) | Input voltage: 90~305 VAC | IP rating: IP67
