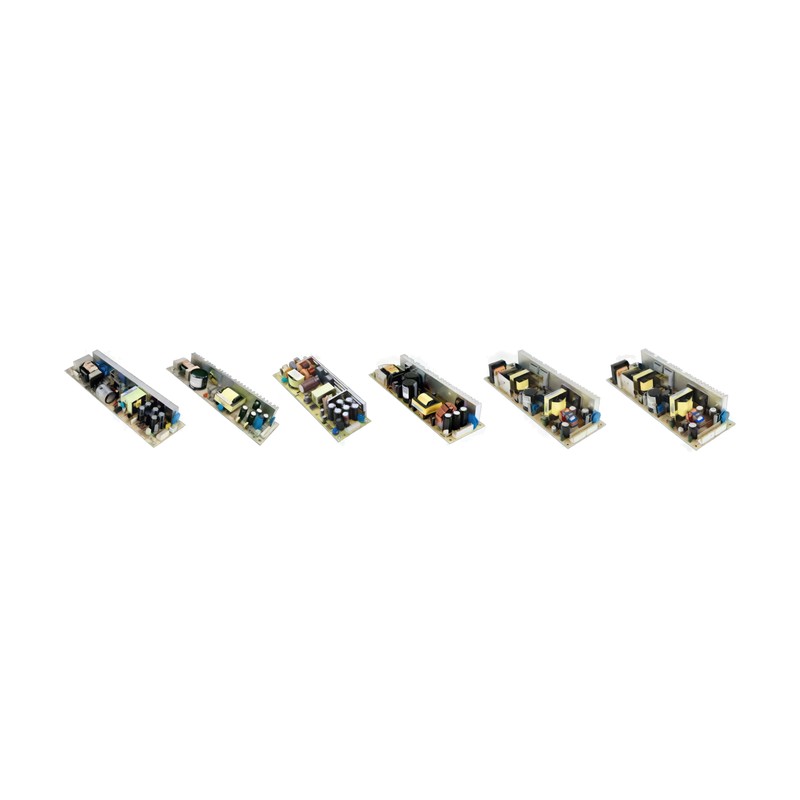

MEAN WELL LPS/ELP/LPP Series Single Output Industrial PCB Type Power Supply (50-150W)

MEAN WELL LPS/ELP/LPP Series Single Output Industrial PCB Type Power Supply (50-150W)

The LPS, ELP and LPP series are 50-150W single output industrial PCB (open frame) type AC-DC power supplies.

Key features

  • Key features: Universal AC input/Full range; Built-in Active PFC (LPP-100/150,ELP-75); Protections: Short Circuit/Overload/Over Voltage; Optional over temperature protection(LPP-150)
  • Also: Built-in remote ON-OFF control(LPS-50/75); Cooling by free air convection; 2 years warranty (LPS Series) 3 years warranty (LPP,ELP Series)
LPS-50 Input: 90~264VAC | Output: 3.3V, 0~10A; 5V, 0~10A; 12V, 0~4.2A; 15V, 0~3.4A; 24V, 0~2.1A; 48V, 0~1.1A | Dimensions: 195x55x23 mm
LPS-75 Input: 90~264VAC | Output: 3.3V, 0~15A; 5V, 0~15A; 12V, 0~6.2A; 15V, 0~5.0A; 24V, 0~3.2A; 48V, 0~1.56A | Dimensions: 222x55x30 mm
ELP-75 Input: 90~264VAC | Output: 3.3V, 15A; 5V, 15A; 12V, 6.25A; 15V, 5A; 24V, 3.15A; 36V, 2.1A; 48V, 1.6A | Dimensions: 175x60x27 mm
LPS-100 Input: 115/230 auto switch | Output: 3.3V, 0~20A; 5V, 0~20A; 7.5V, 0~13.3A; 12V, 0~8.4A; 13.5V, 0~7.5A; 15V, 0~6.7A; 24V, 0~4.2A; 27V, 0~3.8A; 48V, 0~2.1A | Dimensions: 222x62x32 mm
LPP-100 Input: 85~264VAC | Output: 3.3V, 0~20A; 5V, 0~20A; 7.5V, 0~13.5A; 12V, 0~8.5A; 13.5V, 0~7.5A; 15V, 0~6.7A; 24V, 0~4.2A; 27V, 0~3.8A; 48V, 0~2.1A | Dimensions: 222x62x33.6 mm
LPP-150 Input: 85~264VAC | Output: 3.3V, 0~30A; 5V, 0~30A; 7.5V, 0~20A; 12V, 0~12.5A; 13.5V, 0~11.2; 15V, 0~10A; 24V, 0~6.3A; 27V, 0~5.6A; 48V, 0~3.2A | Dimensions: 222x75x41 mm
Open Frame Power SuppliesMEAN WELL
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL LPS/ELP/LPP Series Single Output Industrial PCB Type Power Supply (50-150W)

Brand MEAN WELL·Open Frame Power Supplies

Available part numbers (6)

LPS-50, LPS-75, ELP-75, LPS-100, LPP-100, LPP-150

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LPS-50Input: 90~264VAC | Output: 3.3V, 0~10A; 5V, 0~10A; 12V, 0~4.2A; 15V, 0~3.4A; 24V, 0~2.1A; 48V, 0~1.1A | Dimensions: 195x55x23 mm
LPS-75Input: 90~264VAC | Output: 3.3V, 0~15A; 5V, 0~15A; 12V, 0~6.2A; 15V, 0~5.0A; 24V, 0~3.2A; 48V, 0~1.56A | Dimensions: 222x55x30 mm
ELP-75Input: 90~264VAC | Output: 3.3V, 15A; 5V, 15A; 12V, 6.25A; 15V, 5A; 24V, 3.15A; 36V, 2.1A; 48V, 1.6A | Dimensions: 175x60x27 mm
LPS-100Input: 115/230 auto switch | Output: 3.3V, 0~20A; 5V, 0~20A; 7.5V, 0~13.3A; 12V, 0~8.4A; 13.5V, 0~7.5A; 15V, 0~6.7A; 24V, 0~4.2A; 27V, 0~3.8A; 48V, 0~2.1A | Dimensions: 222x62x32 mm
LPP-100Input: 85~264VAC | Output: 3.3V, 0~20A; 5V, 0~20A; 7.5V, 0~13.5A; 12V, 0~8.5A; 13.5V, 0~7.5A; 15V, 0~6.7A; 24V, 0~4.2A; 27V, 0~3.8A; 48V, 0~2.1A | Dimensions: 222x62x33.6 mm
LPP-150Input: 85~264VAC | Output: 3.3V, 0~30A; 5V, 0~30A; 7.5V, 0~20A; 12V, 0~12.5A; 13.5V, 0~11.2; 15V, 0~10A; 24V, 0~6.3A; 27V, 0~5.6A; 48V, 0~3.2A | Dimensions: 222x75x41 mm
