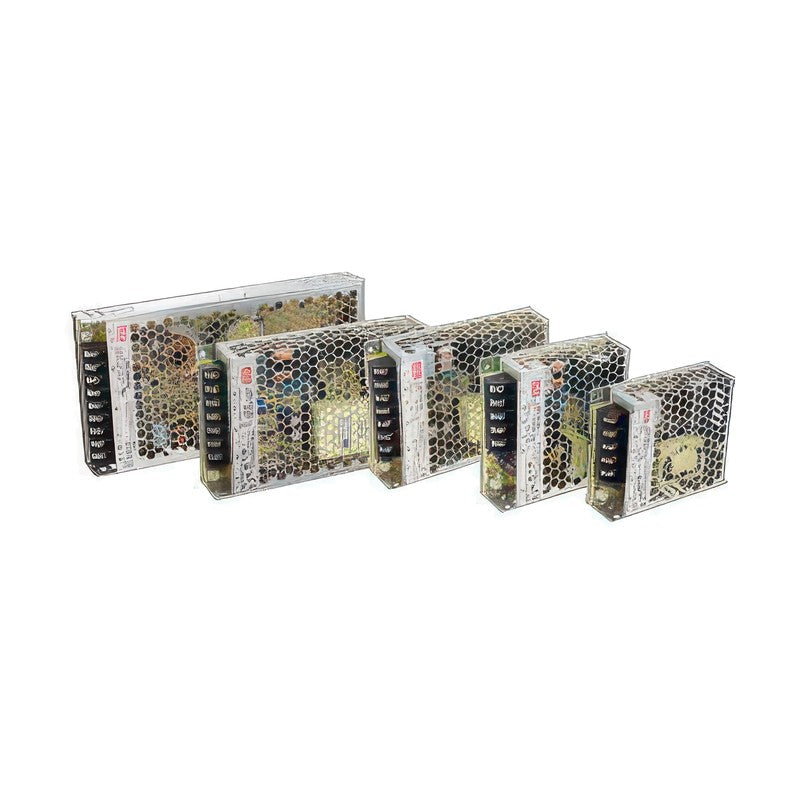

MEAN WELL LRS Series Low Profile Single Output Enclosed Power Supply (35-600W)

MEAN WELL LRS Series Low Profile Single Output Enclosed Power Supply (35-600W)

The LRS series is a 35-600W low profile (1U) single output enclosed type AC-DC switching power supply, including N2 models with 200% peak power.

Key features

  • Key features: Withstand 300 VAC surge input for 5 sec; 1U low profile (30~41mm); Withstand 5G vibration test; High operating temperature up to 70°C; Protections:Short Circuit/Overload/Over Voltage/Over Temp.(LRS-150~600)
  • Also: Provide 200% peak power (LRS-100N2/200N2/350N2/600N2); Forced air cooling by built-in DC fan (350~600W); Operating altitude up to 5000 meters; Long MTBF, 1500k~3300k hrs all series
MEAN WELL LRS Series Low Profile Single Output Enclosed Power Supply (35-600W) reference 2
LRS-35 Input: 85~264VAC | Output: 5V, 0~7A; 12V, 0~3A; 15V, 0~2.4A; 24V, 0~1.5A; 36V, 0~1A; 48V, 0~0.8A | Dimensions: 99x82x30 mm
LRS-50 Input: 85~264VAC | Output: 3.3V, 0~10A; 5V, 0~10A; 12V, 0~4.2A; 15V, 0~3.4A; 24V, 0~2.2A; 36V, 0~1.45A; 48V, 0~1.1A | Dimensions: 99x82x30 mm
LRS-75 Input: 85~264VAC | Output: 5V, 0~14A; 12V, 0~6A; 15V, 0~5A; 24V, 0~3.2A; 36V, 0~2.1A; 48V, 0~1.6A | Dimensions: 99x97x30 mm
LRS-100 Input: 85~264VAC | Output: 3.3V, 0~20A; 5V, 0~18A; 12V, 0~8.5A; 15V, 0~7A; 24V, 0~4.5A; 36V, 0~2.8A; 48V, 0~2.3A | Dimensions: 129x97x30 mm
LRS-100N2 Input: 85~264VAC | Output: 12V, 0~8.5A; 24V, 0~4.5A; 36V, 0~2.8A; 48V, 0~2.3A | Dimensions: 129x97x30 mm
LRS-150F Input: 85~264VAC | Output: 5V, 0~22A; 12V, 0~12.5A; 15V, 0~10A; 24V, 0~6.5A; 36V, 0~4.3A; 48V, 0~3.3A | Dimensions: 159x97x30 mm
LRS-150 Input: 115/230VAC by switch | Output: 12V, 0~12.5A; 15V, 0~10A; 24V, 0~6.5A; 36V, 0~4.3A; 48V, 0~3.3A | Dimensions: 159x97x30 mm
LRS-200 Input: 115/230VAC by switch | Output: 3.3V, 0~40A; 4.2V, 0~40A; 5V, 0~40A; 12V, 0~17A; 15V, 0~14A; 24V, 0~8.8A; 36V, 0~5.9A; 48V, 0~4.4A | Dimensions: 215x115x30 mm
LRS-200N2 Input: 115/230VAC by switch | Output: 12V, 0~17A; 24V, 0~8.8A; 36V, 0~5.9A; 48V, 0~4.4A | Dimensions: 215x115x30 mm
LRS-350 Input: 115/230VAC by switch | Output: 3.3V, 0~60A; 4.2V, 0~60A; 5V, 0~60A; 12V, 0~29A; 15V, 0~23.2A; 24V, 0~14.6A; 36V, 0~9.7A; 48V, 0~7.3A | Dimensions: 215x115x30 mm
LRS-350N2 Input: 115/230VAC by switch | Output: 12V, 0~29A; 24V, 0~14.6A; 36V, 0~9.7A; 48V, 0~7.3A | Dimensions: 215x115x30 mm
LRS-450 Input: 115/230VAC by switch | Output: 5V, 0~75A; 12V, 0~37.5A; 15V, 0~30A; 24V, 0~18.8A; 36V, 0~12.5A; 48V, 0~9.4A | Dimensions: 225x124x35 mm
LRS-600 Input: 115/230VAC by switch | Output: 5V, 0~100A; 12V, 0~50A; 15V, 0~40A; 24V, 0~25A; 27V, 0~22.2A; 36V, 0~16.6A; 48V, 0~12.5A | Dimensions: 225x124x41 mm
LRS-600N2 Input: 115/230VAC by switch | Output: 12V, 0~50A; 24V, 0~25A; 36V, 0~16.6A; 48V, 0~12.5A | Dimensions: 225x124x41 mm
Enclosed Switching Power SuppliesMEAN WELL
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL LRS Series Low Profile Single Output Enclosed Power Supply (35-600W)

Brand MEAN WELL·Enclosed Switching Power Supplies

Available part numbers (14)

LRS-35, LRS-50, LRS-75, LRS-100, LRS-100N2, LRS-150F, LRS-150, LRS-200, LRS-200N2, LRS-350 + 4 more — see full table ↓

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
MEAN WELL LRS Series Low Profile Single Output Enclosed Power Supply (35-600W) reference 2
0 selected
RFQ List (0)
Product codeSpec
LRS-35Input: 85~264VAC | Output: 5V, 0~7A; 12V, 0~3A; 15V, 0~2.4A; 24V, 0~1.5A; 36V, 0~1A; 48V, 0~0.8A | Dimensions: 99x82x30 mm
LRS-50Input: 85~264VAC | Output: 3.3V, 0~10A; 5V, 0~10A; 12V, 0~4.2A; 15V, 0~3.4A; 24V, 0~2.2A; 36V, 0~1.45A; 48V, 0~1.1A | Dimensions: 99x82x30 mm
LRS-75Input: 85~264VAC | Output: 5V, 0~14A; 12V, 0~6A; 15V, 0~5A; 24V, 0~3.2A; 36V, 0~2.1A; 48V, 0~1.6A | Dimensions: 99x97x30 mm
LRS-100Input: 85~264VAC | Output: 3.3V, 0~20A; 5V, 0~18A; 12V, 0~8.5A; 15V, 0~7A; 24V, 0~4.5A; 36V, 0~2.8A; 48V, 0~2.3A | Dimensions: 129x97x30 mm
LRS-100N2Input: 85~264VAC | Output: 12V, 0~8.5A; 24V, 0~4.5A; 36V, 0~2.8A; 48V, 0~2.3A | Dimensions: 129x97x30 mm
LRS-150FInput: 85~264VAC | Output: 5V, 0~22A; 12V, 0~12.5A; 15V, 0~10A; 24V, 0~6.5A; 36V, 0~4.3A; 48V, 0~3.3A | Dimensions: 159x97x30 mm
LRS-150Input: 115/230VAC by switch | Output: 12V, 0~12.5A; 15V, 0~10A; 24V, 0~6.5A; 36V, 0~4.3A; 48V, 0~3.3A | Dimensions: 159x97x30 mm
LRS-200Input: 115/230VAC by switch | Output: 3.3V, 0~40A; 4.2V, 0~40A; 5V, 0~40A; 12V, 0~17A; 15V, 0~14A; 24V, 0~8.8A; 36V, 0~5.9A; 48V, 0~4.4A | Dimensions: 215x115x30 mm
LRS-200N2Input: 115/230VAC by switch | Output: 12V, 0~17A; 24V, 0~8.8A; 36V, 0~5.9A; 48V, 0~4.4A | Dimensions: 215x115x30 mm
LRS-350Input: 115/230VAC by switch | Output: 3.3V, 0~60A; 4.2V, 0~60A; 5V, 0~60A; 12V, 0~29A; 15V, 0~23.2A; 24V, 0~14.6A; 36V, 0~9.7A; 48V, 0~7.3A | Dimensions: 215x115x30 mm
LRS-350N2Input: 115/230VAC by switch | Output: 12V, 0~29A; 24V, 0~14.6A; 36V, 0~9.7A; 48V, 0~7.3A | Dimensions: 215x115x30 mm
LRS-450Input: 115/230VAC by switch | Output: 5V, 0~75A; 12V, 0~37.5A; 15V, 0~30A; 24V, 0~18.8A; 36V, 0~12.5A; 48V, 0~9.4A | Dimensions: 225x124x35 mm
LRS-600Input: 115/230VAC by switch | Output: 5V, 0~100A; 12V, 0~50A; 15V, 0~40A; 24V, 0~25A; 27V, 0~22.2A; 36V, 0~16.6A; 48V, 0~12.5A | Dimensions: 225x124x41 mm
LRS-600N2Input: 115/230VAC by switch | Output: 12V, 0~50A; 24V, 0~25A; 36V, 0~16.6A; 48V, 0~12.5A | Dimensions: 225x124x41 mm
