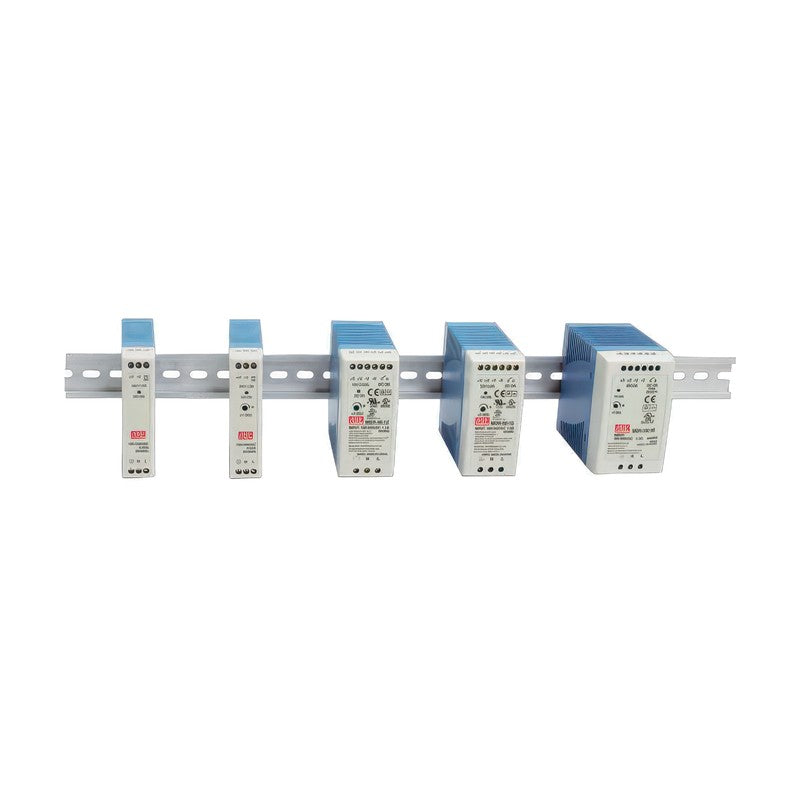

MEAN WELL MDR Series Ultra Slim DIN Rail Power Supply (10-100W)

MEAN WELL MDR Series Ultra Slim DIN Rail Power Supply (10-100W)

The MDR series is a 10-100W ultra slim DIN rail AC-DC power supply.

Key features

  • Key features: Universal full range input: 85~264 VAC; ClassIpower unit; DIN Rail:TS-35/7.5 or TS-35/15; Cooling by free air convection; Protections: Short Circuit/Overload/Over Voltage
  • Also: Built-in active PFC and over temp. protection(MDR-100); Div 2 Hazardous Locations T4(MDR-40/60); No load power consumption <0.75~1W; DC OK signal output(MDR-10/20)
MDR-10 Output: 5V, 0~2A; 12V, 0~0.84A; 15V, 0~0.67A; 24V, 0~0.42A | Dimensions: 22.5x90x100 mm
MDR-20 Output: 5V, 0~3A; 12V, 0~1.67A; 15V, 0~1.34A; 24V, 0~1A | Dimensions: 22.5x90x100 mm
MDR-40 Output: 5V, 0~6A; 12V, 0~3.33A; 24V, 0~1.7A; 48V, 0~0.83A | Dimensions: 40x90x100 mm
MDR-60 Output: 5V, 0~1A; 12V, 0~5A; 24V, 0~2.5A; 48V, 0~1.25A | Dimensions: 40x90x100 mm
MDR-100 Output: 12V, 0~7.5A; 24V, 0~4A; 48V, 0~2A | Dimensions: 55x90x100 mm
DIN Rail Power SuppliesMEAN WELL
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL MDR Series Ultra Slim DIN Rail Power Supply (10-100W)

Brand MEAN WELL·DIN Rail Power Supplies

Available part numbers (5)

MDR-10, MDR-20, MDR-40, MDR-60, MDR-100

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDR-10Output: 5V, 0~2A; 12V, 0~0.84A; 15V, 0~0.67A; 24V, 0~0.42A | Dimensions: 22.5x90x100 mm
MDR-20Output: 5V, 0~3A; 12V, 0~1.67A; 15V, 0~1.34A; 24V, 0~1A | Dimensions: 22.5x90x100 mm
MDR-40Output: 5V, 0~6A; 12V, 0~3.33A; 24V, 0~1.7A; 48V, 0~0.83A | Dimensions: 40x90x100 mm
MDR-60Output: 5V, 0~1A; 12V, 0~5A; 24V, 0~2.5A; 48V, 0~1.25A | Dimensions: 40x90x100 mm
MDR-100Output: 12V, 0~7.5A; 24V, 0~4A; 48V, 0~2A | Dimensions: 55x90x100 mm
