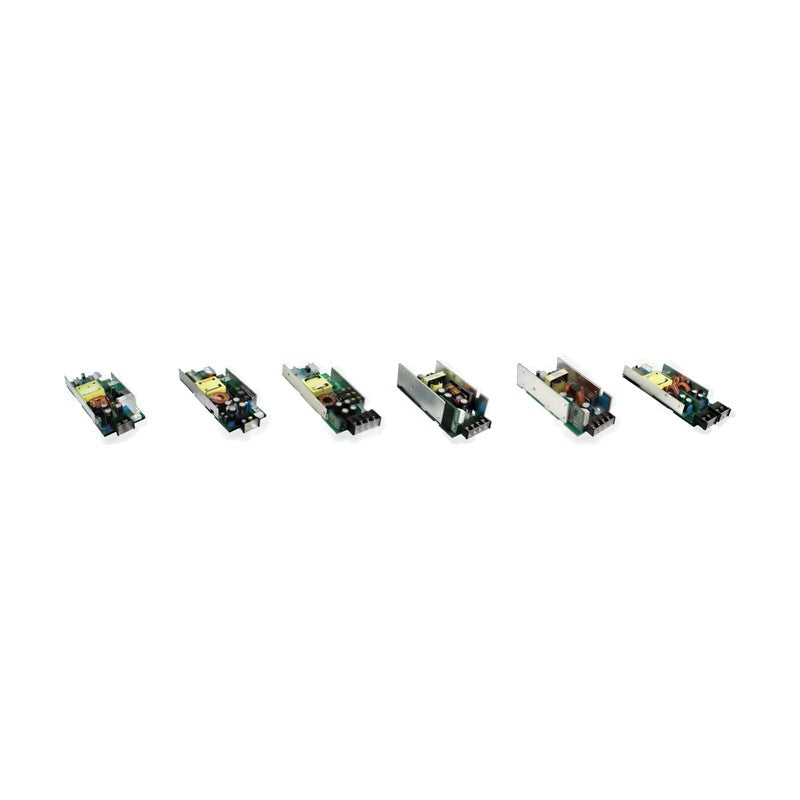

MEAN WELL MS / MD Output Modules for MP Modular Power (75-360W)

MEAN WELL MS / MD Output Modules for MP Modular Power (75-360W)

MS series single output modules (75-360W, 1-slot or 2-slot, some parallelable) and the MD-100 isolated dual output module are the output modules for the MP450/650/1K0 configurable power supplies; output is selected by item code letter.

MS-75 Type: 1-slot single output module (75W max.) | Output options: L 3.3V 0~15A; M 5V 0~15A; N 12V 0~6.3A; O 15V 0~5A; P 24V 0~3.2A; Q 48V 0~1.6A
MS-150 Type: 1-slot single output module (150W max.) | Output options: A 2V 0~25A; B 3.3V 0~25A; C 5V 0~25A; D 7.5V 0~18A; E 12V 0~13A; F 15V 0~10A; G 18V 0~8.5A; H 24V 0~6.5A; I 27V 0~5.8A; J 33V 0~4.7A; K 48V 0~3.2A
MS-210 Type: 1-slot parallelable single output module (210W max.) | Output options: 1A 2V 0~35A; 1B 3.3V 0~35A; 1C 5V 0~35A; 1D 7.5V 0~28A; 1E 12V 0~17.5A; 1F 15V 0~14A; 1G 18V 0~11.6A; 1H 24V 0~8.75A; 1I 27V 0~7.8A; 1J 33V 0~6.4A; 1K 48V 0~4.4A
MS-300 Type: 2-slot parallelable single output module (300W max.) | Output options: 2A 2V 0~50A; 2B 3.3V 0~50A; 2C 5V 0~50A; 2D 7.5V 0~40A; 2E 12V 0~25A; 2F 15V 0~20A; 2G 18V 0~16.7A; 2H 24V 0~12.5A; 2I 27V 0~11.2A; 2J 33V 0~9.1A; 2K 48V 0~6.3A
MS-360 Type: 2-slot parallelable single output module (360W max.) | Output options: 3A 2V 0~60A; 3B 3.3V 0~60A; 3C 5V 0~60A; 3D 7.5V 0~48A; 3E 12V 0~30A; 3F 15V 0~24A; 3G 18V 0~20A; 3H 24V 0~15A; 3I 27V 0~13.4A; 3J 33V 0~11A; 3K 48V 0~7.5A
MD-100 Type: 1-slot isolated dual output module (100W max.) | Output options: R 5V 2~10A + 5V 0~8A; S 5V 2~10A + 12V 0~5.8A; T 5V 2~10A + 15V 0~4.7A; U 24V 0.5~3A + 5V 0~10A; V 24V 0.6~3A + 12V 0~4.7A; W 12V 1~5A + 12V 0~5.8A; X 15V 1~4.7A + 15V 0~4.7A
Configurable Modular Power SuppliesMEAN WELL
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL MS / MD Output Modules for MP Modular Power (75-360W)

Brand MEAN WELL·Configurable Modular Power Supplies

Available part numbers (6)

MS-75, MS-150, MS-210, MS-300, MS-360, MD-100

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MS-75Type: 1-slot single output module (75W max.) | Output options: L 3.3V 0~15A; M 5V 0~15A; N 12V 0~6.3A; O 15V 0~5A; P 24V 0~3.2A; Q 48V 0~1.6A
MS-150Type: 1-slot single output module (150W max.) | Output options: A 2V 0~25A; B 3.3V 0~25A; C 5V 0~25A; D 7.5V 0~18A; E 12V 0~13A; F 15V 0~10A; G 18V 0~8.5A; H 24V 0~6.5A; I 27V 0~5.8A; J 33V 0~4.7A; K 48V 0~3.2A
MS-210Type: 1-slot parallelable single output module (210W max.) | Output options: 1A 2V 0~35A; 1B 3.3V 0~35A; 1C 5V 0~35A; 1D 7.5V 0~28A; 1E 12V 0~17.5A; 1F 15V 0~14A; 1G 18V 0~11.6A; 1H 24V 0~8.75A; 1I 27V 0~7.8A; 1J 33V 0~6.4A; 1K 48V 0~4.4A
MS-300Type: 2-slot parallelable single output module (300W max.) | Output options: 2A 2V 0~50A; 2B 3.3V 0~50A; 2C 5V 0~50A; 2D 7.5V 0~40A; 2E 12V 0~25A; 2F 15V 0~20A; 2G 18V 0~16.7A; 2H 24V 0~12.5A; 2I 27V 0~11.2A; 2J 33V 0~9.1A; 2K 48V 0~6.3A
MS-360Type: 2-slot parallelable single output module (360W max.) | Output options: 3A 2V 0~60A; 3B 3.3V 0~60A; 3C 5V 0~60A; 3D 7.5V 0~48A; 3E 12V 0~30A; 3F 15V 0~24A; 3G 18V 0~20A; 3H 24V 0~15A; 3I 27V 0~13.4A; 3J 33V 0~11A; 3K 48V 0~7.5A
MD-100Type: 1-slot isolated dual output module (100W max.) | Output options: R 5V 2~10A + 5V 0~8A; S 5V 2~10A + 12V 0~5.8A; T 5V 2~10A + 15V 0~4.7A; U 24V 0.5~3A + 5V 0~10A; V 24V 0.6~3A + 12V 0~4.7A; W 12V 1~5A + 12V 0~5.8A; X 15V 1~4.7A + 15V 0~4.7A
