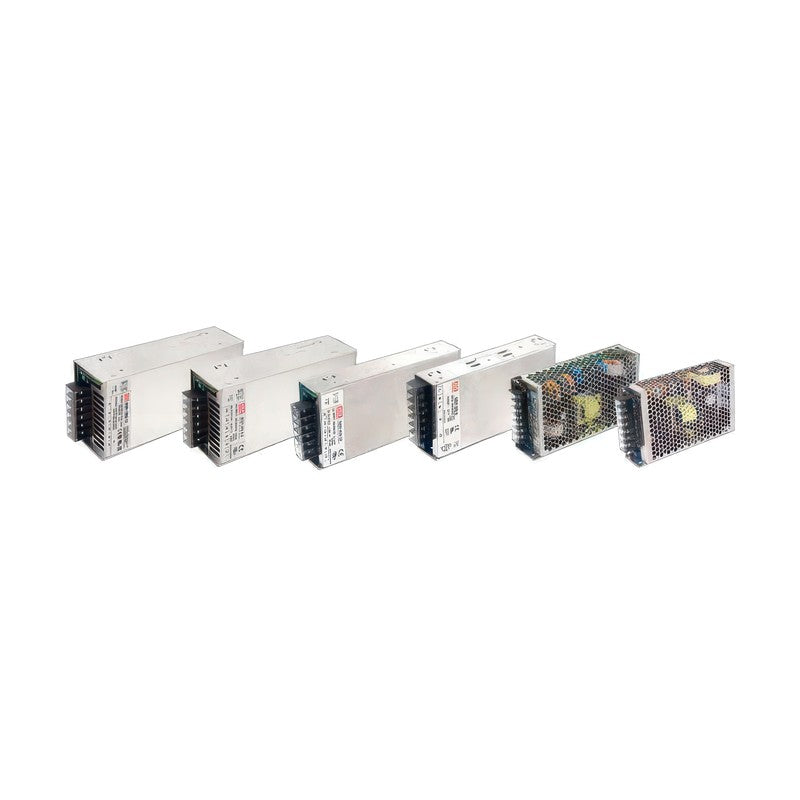

MEAN WELL MSP Series Medical Enclosed Power Supply (100-1000W)

MEAN WELL MSP Series Medical Enclosed Power Supply (100-1000W)

The MSP series is a 100-1000W high reliability medical grade enclosed type AC-DC power supply.

Key features

  • Key features: Universal full range input: 85~264 VAC; Medical safety approved (2x MOOP); Built-in active PFC function; Withstand 300VAC surge input for 5 secs; Protections: Short Circuit/Overload/Over Voltage/Over Temp
  • Also: Built-in constant current limiting circuit; Built-in remote sense function/remote ON-OFF; Current sharing up to 4 units (MSP-600-24/36/48,MSP-1000); No load power consumption<0.5W~0.8W
MSP-100 Output: 3.3V, 0~20A; 5V, 0~17A; 7.5V, 0~13.5A; 12V, 0~8.5A; 15V, 0~7A; 24V, 0~4.5A; 36V, 0~2.9A; 48V, 0~2.2A | Dimensions: 159x97x38 mm
MSP-200 Output: 3.3V, 0~40A; 5V, 0~35A; 7.5V, 0~26.7A; 12V, 0~16.7A; 15V, 0~13.4A; 24V, 0~8.4A; 36V, 0~5.7A; 48V, 0~4.3A | Dimensions: 199x98x38 mm
MSP-300 Output: 3.3V, 0~60A; 5V, 0~60A; 7.5V, 0~40A; 12V, 0~27A; 15V, 0~22A; 24V, 0~14A; 36V, 0~9A; 48V, 0~7A | Dimensions: 199x105x41 mm
MSP-450 Output: 3.3V, 0~90A; 5V, 0~90A; 7.5V, 0~60A; 12V, 0~37.5A; 15V, 0~30A; 24V, 0~18.8A; 36V, 0~12.5A; 48V, 0~9.5A | Dimensions: 218x105x41 mm
MSP-600 Output: 3.3V, 0~120A; 5V, 0~120A; 7.5V, 0~80A; 12V, 0~53A; 15V, 0~43A; 24V, 0~27A; 36V, 0~17.5A; 48V, 0~13A | Dimensions: 218x105x63.5 mm
MSP-1000 Output: 12V, 0~80A; 15V, 0~64A; 24V, 0~42A; 48V, 0~21A | Dimensions: 218x105x63.5 mm
Medical Power SuppliesMEAN WELL
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL MSP Series Medical Enclosed Power Supply (100-1000W)

Brand MEAN WELL·Medical Power Supplies

Available part numbers (6)

MSP-100, MSP-200, MSP-300, MSP-450, MSP-600, MSP-1000

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSP-100Output: 3.3V, 0~20A; 5V, 0~17A; 7.5V, 0~13.5A; 12V, 0~8.5A; 15V, 0~7A; 24V, 0~4.5A; 36V, 0~2.9A; 48V, 0~2.2A | Dimensions: 159x97x38 mm
MSP-200Output: 3.3V, 0~40A; 5V, 0~35A; 7.5V, 0~26.7A; 12V, 0~16.7A; 15V, 0~13.4A; 24V, 0~8.4A; 36V, 0~5.7A; 48V, 0~4.3A | Dimensions: 199x98x38 mm
MSP-300Output: 3.3V, 0~60A; 5V, 0~60A; 7.5V, 0~40A; 12V, 0~27A; 15V, 0~22A; 24V, 0~14A; 36V, 0~9A; 48V, 0~7A | Dimensions: 199x105x41 mm
MSP-450Output: 3.3V, 0~90A; 5V, 0~90A; 7.5V, 0~60A; 12V, 0~37.5A; 15V, 0~30A; 24V, 0~18.8A; 36V, 0~12.5A; 48V, 0~9.5A | Dimensions: 218x105x41 mm
MSP-600Output: 3.3V, 0~120A; 5V, 0~120A; 7.5V, 0~80A; 12V, 0~53A; 15V, 0~43A; 24V, 0~27A; 36V, 0~17.5A; 48V, 0~13A | Dimensions: 218x105x63.5 mm
MSP-1000Output: 12V, 0~80A; 15V, 0~64A; 24V, 0~42A; 48V, 0~21A | Dimensions: 218x105x63.5 mm
