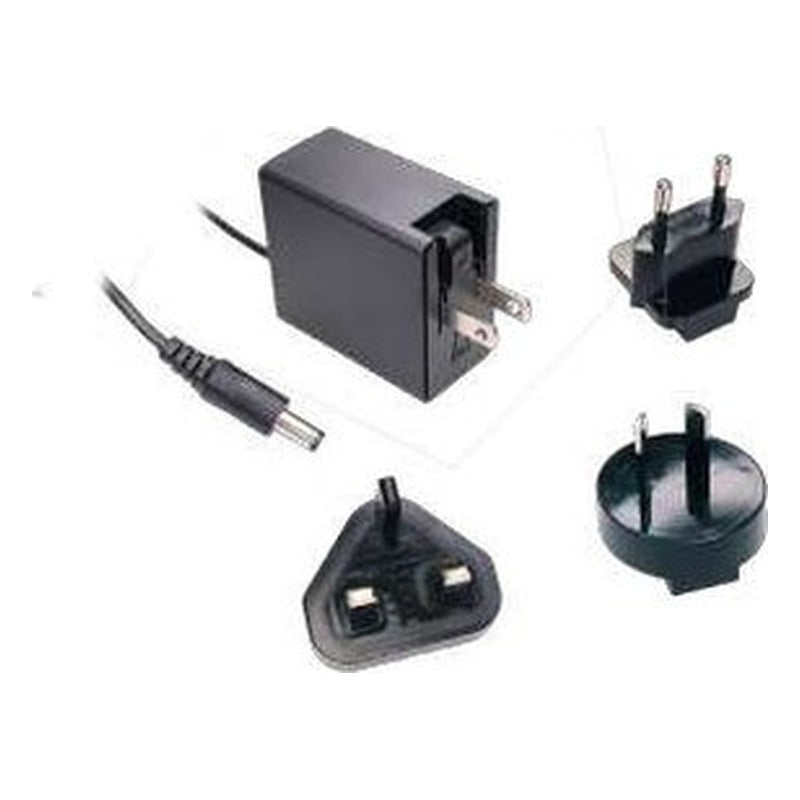

MEAN WELL NGE Series AC Interchangeable Medical/ITE Wall-Mounted Adaptor (12-90W)

MEAN WELL NGE Series AC Interchangeable Medical/ITE Wall-Mounted Adaptor (12-90W)

The NGE series is a 12-90W energy saving wall-mounted AC-DC adaptor with interchangeable AC plugs for medical, ITE and home applications.

Key features

  • Also: No load power consumption <0.075~0.1W; Energy efficiency Level VII; Complies with EISA 2007/DoE, EU ErP & CoC Version 5; -30~+70°C wide range working temp
NGE12 Output: 5V, 0~2.4A; 9V, 0~1.33A; 12V, 0~1A; 15V, 0~0.8A; 18V, 0~0.83A; 24V, 0~0.625A | Dimensions: 48x28x55 mm
NGE18 Output: 5V, 0~3A; 9V, 0~2A; 12V, 0~1.5A; 15V, 0~1.2A; 18V, 0~1A; 24V, 0~0.75A | Dimensions: 48x28x55 mm
NGE30 Output: 5V, 0~4A; 9V, 0~3.33A; 12V, 0~2.5A; 15V, 0~2A; 18V, 0~1.66A; 24V, 0~1.25A; 48V, 0~0.63A | Dimensions: 62x30x65 mm
NGE45 Output: 5V, 0~5.63A; 9V, 0~4.5A; 12V, 0~3.75A; 15V, 0~3A; 18V, 0~2.5A; 24V, 0~1.88A; 48V, 0~0.94A | Dimensions: 62x30x65 mm
NGE65 Output: 5V, 0~7A; 9V, 0~5.96A; 12V, 0~4.88A; 15V, 0~4.34A; 18V, 0~3.62A; 24V, 0~2.71A; 48V, 0~1.36A | Dimensions: 62x30x65 mm
NGE90 Output: 12V, 0~6A; 15V, 0~6A; 18V, 0~5A; 24V, 0~3.75A; 48V, 0~1.85A; 55V, 0~1.64A | Dimensions: 62x30x85 mm
AdaptorsMEAN WELL
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL NGE Series AC Interchangeable Medical/ITE Wall-Mounted Adaptor (12-90W)

Brand MEAN WELL·Adaptors

Available part numbers (6)

NGE12, NGE18, NGE30, NGE45, NGE65, NGE90

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NGE12Output: 5V, 0~2.4A; 9V, 0~1.33A; 12V, 0~1A; 15V, 0~0.8A; 18V, 0~0.83A; 24V, 0~0.625A | Dimensions: 48x28x55 mm
NGE18Output: 5V, 0~3A; 9V, 0~2A; 12V, 0~1.5A; 15V, 0~1.2A; 18V, 0~1A; 24V, 0~0.75A | Dimensions: 48x28x55 mm
NGE30Output: 5V, 0~4A; 9V, 0~3.33A; 12V, 0~2.5A; 15V, 0~2A; 18V, 0~1.66A; 24V, 0~1.25A; 48V, 0~0.63A | Dimensions: 62x30x65 mm
NGE45Output: 5V, 0~5.63A; 9V, 0~4.5A; 12V, 0~3.75A; 15V, 0~3A; 18V, 0~2.5A; 24V, 0~1.88A; 48V, 0~0.94A | Dimensions: 62x30x65 mm
NGE65Output: 5V, 0~7A; 9V, 0~5.96A; 12V, 0~4.88A; 15V, 0~4.34A; 18V, 0~3.62A; 24V, 0~2.71A; 48V, 0~1.36A | Dimensions: 62x30x65 mm
NGE90Output: 12V, 0~6A; 15V, 0~6A; 18V, 0~5A; 24V, 0~3.75A; 48V, 0~1.85A; 55V, 0~1.64A | Dimensions: 62x30x85 mm
