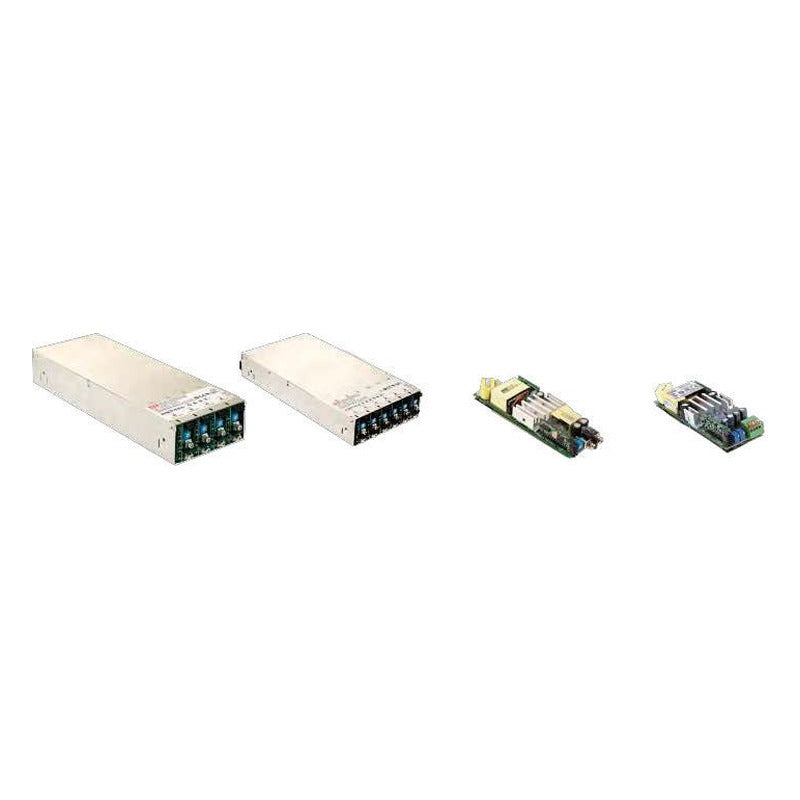

MEAN WELL NMS-240 / NMD-240 Output Modules for NMP Modular Power

MEAN WELL NMS-240 / NMD-240 Output Modules for NMP Modular Power

NMS-240 (isolated single output) and NMD-240 (isolated dual output) are 240W 1-slot output modules for the NMP650/NMP1K2 configurable power supplies; output is selected by item code letter.

NMS-240 Type: 1-slot isolated single output module (240W max.) | Output options: C 5V, 0~36A (3~6V adj.); E 12V, 0~20A (6~15V adj.); H 24V, 0~10A (15~30V adj.); K 48V, 0~5A (30~55V adj.)
NMD-240 Type: 1-slot isolated dual output module (240W max.) | Output options: D 30V, 0~5A + 30V, 0~5A (3~30V adj.)
Configurable Modular Power SuppliesMEAN WELL
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL NMS-240 / NMD-240 Output Modules for NMP Modular Power

Brand MEAN WELL·Configurable Modular Power Supplies

Available part numbers (2)

NMS-240, NMD-240

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NMS-240Type: 1-slot isolated single output module (240W max.) | Output options: C 5V, 0~36A (3~6V adj.); E 12V, 0~20A (6~15V adj.); H 24V, 0~10A (15~30V adj.); K 48V, 0~5A (30~55V adj.)
NMD-240Type: 1-slot isolated dual output module (240W max.) | Output options: D 30V, 0~5A + 30V, 0~5A (3~30V adj.)
