MEAN WELL NPF Series Constant Voltage + Constant Current LED Driver (40-200 W, IP67)

MEAN WELL NPF Series Constant Voltage + Constant Current LED Driver (40-200 W, IP67)

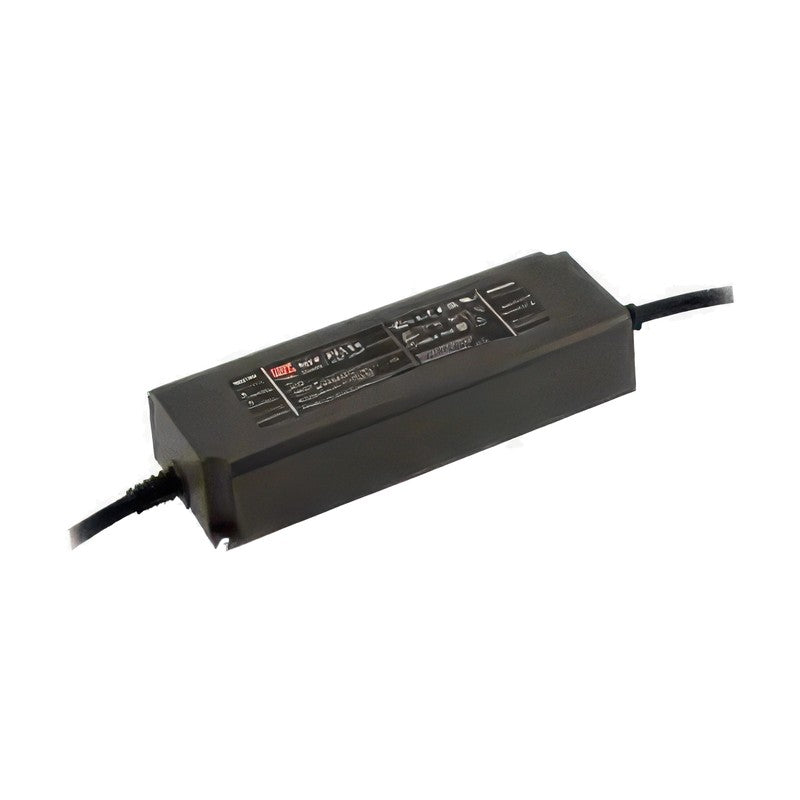

The NPF series is a constant voltage + constant current LED driver in a fully isolated IP67 plastic case, covering 40 to 200 W.

Key features

  • The D-type operates in constant current mode only with an auxiliary output, and the V-type (NPF-200V) is constant voltage mode only, suitable for poultry lighting or LED strip
  • Built-in 3 in 1 dimming (0~10 VDC, PWM signal or resistance) and wide 90~305 VAC input
  • No-load power consumption below 0.15 W (below 0.5 W for D-type), isolation class II, Class 2 power unit
  • Protections: short circuit, over current, over voltage and over temperature. 5-year warranty

Specifications

Input voltage 90~305 VAC
Dimming 3 in 1 (0~10 VDC, PWM, resistance)
IP rating IP67
NPF-40 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 150x53x35 mm | Printed as: NPF-40(D) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
NPF-60 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 150x53x35 mm | Printed as: NPF-60(D) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
NPF-90 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 171x63x37.5 mm | Printed as: NPF-90(D) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
NPF-120 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 191x63x37.5 mm | Printed as: NPF-120(D) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
NPF-200 Output voltage: 12, 24, 36, 42, 48, 54 V | Dimensions: 195x68x39.5 mm | Printed as: NPF-200(V) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
LED DriversMEAN WELL
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL NPF Series Constant Voltage + Constant Current LED Driver (40-200 W, IP67)

Brand MEAN WELL·LED Drivers

Available part numbers (5)

NPF-40, NPF-60, NPF-90, NPF-120, NPF-200

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NPF-40Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 150x53x35 mm | Printed as: NPF-40(D) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
NPF-60Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 150x53x35 mm | Printed as: NPF-60(D) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
NPF-90Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 171x63x37.5 mm | Printed as: NPF-90(D) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
NPF-120Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 191x63x37.5 mm | Printed as: NPF-120(D) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
NPF-200Output voltage: 12, 24, 36, 42, 48, 54 V | Dimensions: 195x68x39.5 mm | Printed as: NPF-200(V) | Input voltage: 90~305 VAC | Dimming: 3 in 1 (0~10 VDC, PWM, resistance) | IP rating: IP67
