• MEAN WELL NTS Series True Sine Wave DC-AC Inverter (250-3200W)
1 1

MEAN WELL NTS Series True Sine Wave DC-AC Inverter (250-3200W)

MEAN WELL NTS Series True Sine Wave DC-AC Inverter (250-3200W)

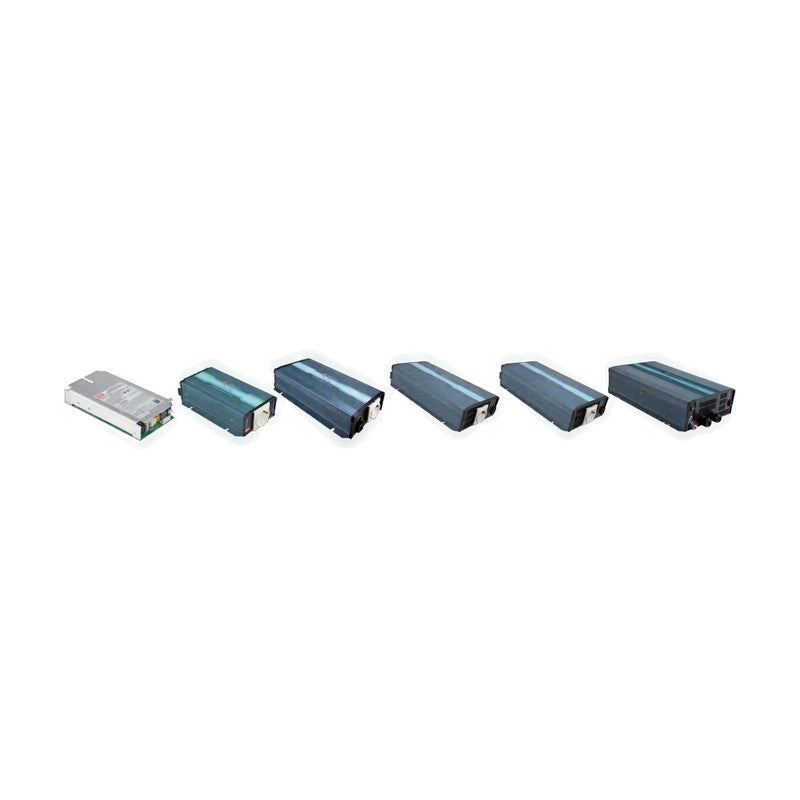

The NTS series is a 250-3200W high reliability true sine wave DC-AC inverter in built-in (PCB) and portable versions.

Key features

  • Key features: High frequency design, compact size and light weighted; Built-in type (NTS-250P/400P); True sine wave output (THD<3%); High surge power up to 200%; Fanless design, free air convection (NTS-250P/400P/300)

Specifications

Input 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models)
AC output 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch)
AC bypass No
NTS-250P Continuous power: 250W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: No | AC bypass: No | Dimensions: 186x100.5x32 mm
NTS-400P Continuous power: 450W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: No | AC bypass: No | Dimensions: 186x100.5x32 mm
NTS-300 Continuous power: 300W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 210x130x55 mm
NTS-450 Continuous power: 450W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 210x130x55 mm
NTS-750 Continuous power: 750W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 270x158x67 mm
NTS-1200 Continuous power: 1200W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 333x184x70 mm
NTS-1700 Continuous power: 1700W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 400x184x70 mm
NTS-2200 Continuous power: 2200W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 420x270x98 mm
NTS-3200 Continuous power: 3200W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 420x270x98 mm
DC-AC InvertersMEAN WELL
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL NTS Series True Sine Wave DC-AC Inverter (250-3200W)

Brand MEAN WELL·DC-AC Inverters

Available part numbers (9)

NTS-250P, NTS-400P, NTS-300, NTS-450, NTS-750, NTS-1200, NTS-1700, NTS-2200, NTS-3200

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NTS-250PContinuous power: 250W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: No | AC bypass: No | Dimensions: 186x100.5x32 mm
NTS-400PContinuous power: 450W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: No | AC bypass: No | Dimensions: 186x100.5x32 mm
NTS-300Continuous power: 300W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 210x130x55 mm
NTS-450Continuous power: 450W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 210x130x55 mm
NTS-750Continuous power: 750W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 270x158x67 mm
NTS-1200Continuous power: 1200W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 333x184x70 mm
NTS-1700Continuous power: 1700W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 400x184x70 mm
NTS-2200Continuous power: 2200W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 420x270x98 mm
NTS-3200Continuous power: 3200W | Input: 10~16.5Vdc / 20~33Vdc / 40~66Vdc (12/24/48V models) | AC output: 112/124/148: 110Vac 60Hz; 212/224/248: 230Vac 50Hz (100/110/115/120Vac or 200/220/230/240Vac selectable by DIP switch) | Built-in fan: Yes | AC bypass: No | Dimensions: 420x270x98 mm
