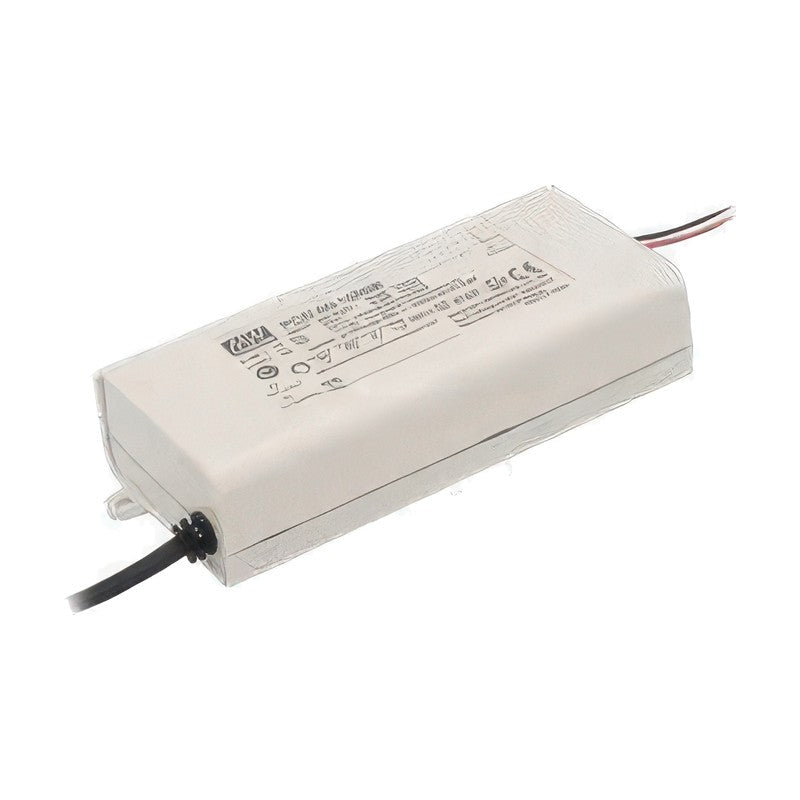

MEAN WELL PLD Series Constant Current LED Driver (16-60 W, IP42)

MEAN WELL PLD Series Constant Current LED Driver (16-60 W, IP42)

The PLD series is a constant current mode LED driver in a fully isolated IP42 plastic case, covering 16 to 60 W.

Key features

  • Built-in active PFC, isolation class II and Class 2 power unit / LPS (16 W and 25 W)
  • A-type input is 90~135 VAC and B-type is 180~295 VAC (PLD-25: 90~295 VAC)
  • Protections: short circuit and over temperature. 3-year warranty

Specifications

IP rating IP42
PLD-16 Output current: 350, 700, 1050, 1400 mA | Dimensions: 84x57x29.5 mm | Input options: A-type 90~135 VAC, B-type 180~295 VAC | IP rating: IP42
PLD-25 Output current: 350, 700, 1050, 1400 mA | Dimensions: 84x57x29.5 mm | Input voltage: 90~295 VAC | IP rating: IP42
PLD-40 Output current: 350B, 500B, 700B, 1050B, 1400B, 1750B mA | Dimensions: 128x60x31.5 mm | Input options: A-type 90~135 VAC, B-type 180~295 VAC | IP rating: IP42
PLD-60 Output current: 500B, 700B, 1050B, 1400B, 1750B, 2000B, 2400B mA | Dimensions: 128x60x31.5 mm | Input options: A-type 90~135 VAC, B-type 180~295 VAC | IP rating: IP42
LED DriversMEAN WELL
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL PLD Series Constant Current LED Driver (16-60 W, IP42)

Brand MEAN WELL·LED Drivers

Available part numbers (4)

PLD-16, PLD-25, PLD-40, PLD-60

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PLD-16Output current: 350, 700, 1050, 1400 mA | Dimensions: 84x57x29.5 mm | Input options: A-type 90~135 VAC, B-type 180~295 VAC | IP rating: IP42
PLD-25Output current: 350, 700, 1050, 1400 mA | Dimensions: 84x57x29.5 mm | Input voltage: 90~295 VAC | IP rating: IP42
PLD-40Output current: 350B, 500B, 700B, 1050B, 1400B, 1750B mA | Dimensions: 128x60x31.5 mm | Input options: A-type 90~135 VAC, B-type 180~295 VAC | IP rating: IP42
PLD-60Output current: 500B, 700B, 1050B, 1400B, 1750B, 2000B, 2400B mA | Dimensions: 128x60x31.5 mm | Input options: A-type 90~135 VAC, B-type 180~295 VAC | IP rating: IP42
