MEAN WELL PSC Series Security Power Supply with UPS Function (35-160W)

MEAN WELL PSC Series Security Power Supply with UPS Function (35-160W)

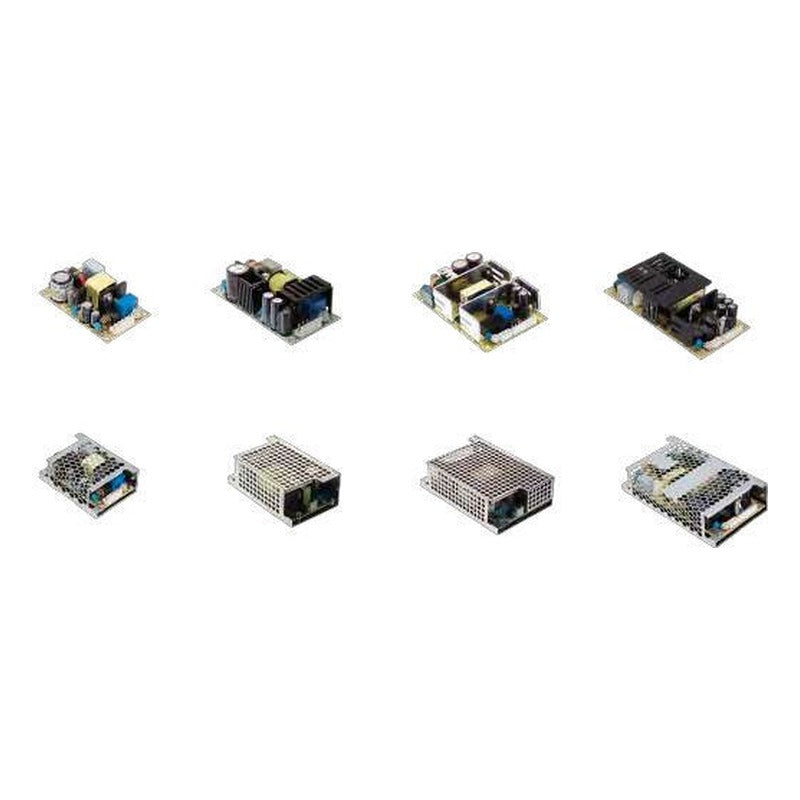

The PSC series is a 35-160W single output security power supply with built-in battery charger (UPS function), in PCB and enclosed versions.

Key features

  • Also: Alarm signal for AC OK and battery reverse low; Fanless design, free air convection; -30~+70°C wide operating temperature; 2 years warranty
PSC-35A□ CH1 output (main power): 13.8V, 0~2.6A | CH2 output (charging): 13.8V, 0~0.9A | Dimensions: PCB: 84.6x50.8x24 Enclosed:86.4x59.6x30 mm
PSC-35B□ CH1 output (main power): 27.6V, 0~1.3A | CH2 output (charging): 27.6V, 0~0.45A | Dimensions: PCB: 84.6x50.8x24 Enclosed:86.4x59.6x30 mm
PSC-60A□ CH1 output (main power): 13.8V, 0~4.3A | CH2 output (charging): 13.8V, 0~1.5A | Dimensions: PCB:101.6x50.8x29 Enclosed: 103.4x62x37 mm
PSC-60B□ CH1 output (main power): 27.6V, 0~2.15A | CH2 output (charging): 27.6V, 0~0.75A | Dimensions: PCB:101.6x50.8x29 Enclosed: 103.4x62x37 mm
PSC-100A□ CH1 output (main power): 13.8V, 0~7A | CH2 output (charging): 13.8V, 0~2.5A | Dimensions: PCB :127x76.2x31 Enclosed: 130x85x37 mm
PSC-100B□ CH1 output (main power): 27.6V, 0~3.5A | CH2 output (charging): 27.6V, 0~1.25A | Dimensions: PCB :127x76.2x31 Enclosed: 130x85x37 mm
PSC-160A□ CH1 output (main power): 13.8V, 0~11.6A | CH2 output (charging): 13.8V, 0~4A | Dimensions: PCB : 152.4x76.2x32 Enclosed: 155.4x85x37 mm
PSC-160B□ CH1 output (main power): 27.6V, 0~5.8A | CH2 output (charging): 27.6V, 0~2A | Dimensions: PCB : 152.4x76.2x32 Enclosed: 155.4x85x37 mm
Security Power SuppliesMEAN WELL
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL PSC Series Security Power Supply with UPS Function (35-160W)

Brand MEAN WELL·Security Power Supplies

Available part numbers (8)

PSC-35A□, PSC-35B□, PSC-60A□, PSC-60B□, PSC-100A□, PSC-100B□, PSC-160A□, PSC-160B□

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSC-35A□CH1 output (main power): 13.8V, 0~2.6A | CH2 output (charging): 13.8V, 0~0.9A | Dimensions: PCB: 84.6x50.8x24 Enclosed:86.4x59.6x30 mm
PSC-35B□CH1 output (main power): 27.6V, 0~1.3A | CH2 output (charging): 27.6V, 0~0.45A | Dimensions: PCB: 84.6x50.8x24 Enclosed:86.4x59.6x30 mm
PSC-60A□CH1 output (main power): 13.8V, 0~4.3A | CH2 output (charging): 13.8V, 0~1.5A | Dimensions: PCB:101.6x50.8x29 Enclosed: 103.4x62x37 mm
PSC-60B□CH1 output (main power): 27.6V, 0~2.15A | CH2 output (charging): 27.6V, 0~0.75A | Dimensions: PCB:101.6x50.8x29 Enclosed: 103.4x62x37 mm
PSC-100A□CH1 output (main power): 13.8V, 0~7A | CH2 output (charging): 13.8V, 0~2.5A | Dimensions: PCB :127x76.2x31 Enclosed: 130x85x37 mm
PSC-100B□CH1 output (main power): 27.6V, 0~3.5A | CH2 output (charging): 27.6V, 0~1.25A | Dimensions: PCB :127x76.2x31 Enclosed: 130x85x37 mm
PSC-160A□CH1 output (main power): 13.8V, 0~11.6A | CH2 output (charging): 13.8V, 0~4A | Dimensions: PCB : 152.4x76.2x32 Enclosed: 155.4x85x37 mm
PSC-160B□CH1 output (main power): 27.6V, 0~5.8A | CH2 output (charging): 27.6V, 0~2A | Dimensions: PCB : 152.4x76.2x32 Enclosed: 155.4x85x37 mm
