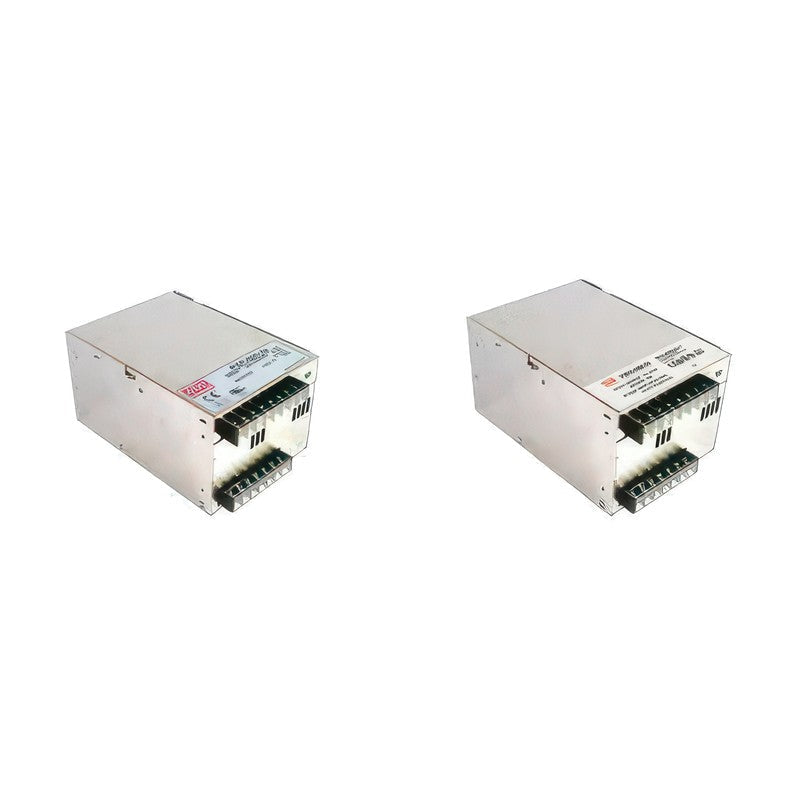

MEAN WELL PSP/PSPA Series Parallel Function Enclosed Power Supply with PFC (600-1000W)

MEAN WELL PSP/PSPA Series Parallel Function Enclosed Power Supply with PFC (600-1000W)

The PSP/PSPA series are single output enclosed type AC-DC power supplies with active PFC and parallel (current sharing) function.

Key features

  • Key features: Built-in active PFC function; Protections: Short Circuit/Overload/Over Voltage/Over Temp; Forced air cooling by built-in DC fan; With DC OK signal output
  • Also: Current sharing up to 2400W(PSP-600); 4000W (PSPA-1000); Built-in remote sense/remote ON-OFF control; 3 years warranty (PSP-600) 5 years warranty (PSPA-1000)

Specifications

Dimensions 170x120x93 mm
PSP-600 Input: 88~264VAC | Output: 5V, 0~80A; 12V, 0~50A; 13.5V, 0~44.5A; 15V, 0~40A; 24V, 0~25A; 27V, 0~22.2A; 48V, 0~12.5A | Dimensions: 170x120x93 mm
PSPA-1000 Input: 90~264VAC | Output: 12V, 0~80A; 15V, 0~64A; 24V, 0~42A; 48V, 0~21A | Dimensions: 170x120x93 mm
Enclosed Switching Power SuppliesMEAN WELL
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL PSP/PSPA Series Parallel Function Enclosed Power Supply with PFC (600-1000W)

Brand MEAN WELL·Enclosed Switching Power Supplies

Available part numbers (2)

PSP-600, PSPA-1000

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSP-600Input: 88~264VAC | Output: 5V, 0~80A; 12V, 0~50A; 13.5V, 0~44.5A; 15V, 0~40A; 24V, 0~25A; 27V, 0~22.2A; 48V, 0~12.5A | Dimensions: 170x120x93 mm
PSPA-1000Input: 90~264VAC | Output: 12V, 0~80A; 15V, 0~64A; 24V, 0~42A; 48V, 0~21A | Dimensions: 170x120x93 mm
