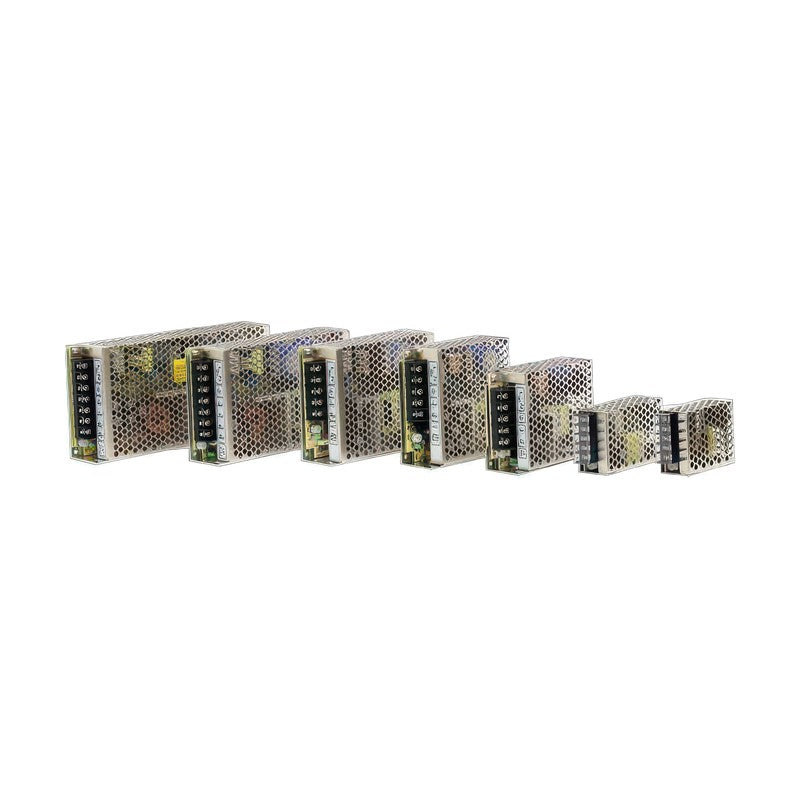

MEAN WELL RD Series Miniwatt Dual Output Enclosed Power Supply (35-125W)

MEAN WELL RD Series Miniwatt Dual Output Enclosed Power Supply (35-125W)

The RD series (part of the G3 miniwatt family) is a 35-125W dual output enclosed type AC-DC switching power supply.

Key features

  • Key features: Universal full range input: 88~264 VAC; All using 105°C long life electrolytic capacitors; Protections: Short Circuit /Overload /Over Voltage /Over Temp. (RS-15); Withstand 300VAC surge input for 5 sec; High operating temperature up to 70°C
  • Also: Miniature size; Cooling by free air convection; LED indicator for power on; 3 years warranty
RD-35A CH1 output: 5V, 0~4A | CH2 output: 12V, 0~1A | Dimensions: 99x82x36 mm
RD-35B CH1 output: 5V, 0~4A | CH2 output: 24V, 0~1.3A | Dimensions: 99x82x36 mm
RD-3513 CH1 output: 13.5V, 0~2A | CH2 output: -13.5V, 0~1.5A | Dimensions: 99x82x36 mm
RD-50A CH1 output: 5V, 0~6A | CH2 output: 12V, 0~3A | Dimensions: 99x97x36 mm
RD-50B CH1 output: 5V, 0~6A | CH2 output: 24V, 0~2A | Dimensions: 99x97x36 mm
RD-65A CH1 output: 5V, 0~8A | CH2 output: 12V, 0~4A | Dimensions: 129x98x38 mm
RD-65B CH1 output: 5V, 0~8A | CH2 output: 24V, 0~3A | Dimensions: 129x98x38 mm
RD-85A CH1 output: 5V, 0~10A | CH2 output: 12V, 0~5A | Dimensions: 159x97x38 mm
RD-85B CH1 output: 5V, 0~10A | CH2 output: 24V, 0~2.5A | Dimensions: 159x97x38 mm
RD-125A CH1 output: 5V, 0~15A | CH2 output: 12V, 0~10A | Dimensions: 199x98x38 mm
RD-125B CH1 output: 5V, 0~10A | CH2 output: 24V, 0~5A | Dimensions: 199x98x38 mm
RD-125-1224 CH1 output: 12V, 0~7A | CH2 output: 24V, 0~5A | Dimensions: 199x98x38 mm
RD-125-2412 CH1 output: 24V, 0~5A | CH2 output: 12V, 0~7A | Dimensions: 199x98x38 mm
RD-125-1248 CH1 output: 12V, 0~7A | CH2 output: 48V, 0~2.5A | Dimensions: 199x98x38 mm
RD-125-4812 CH1 output: 48V, 0~2.5A | CH2 output: 12V, 0~7A | Dimensions: 199x98x38 mm
RD-125-2448 CH1 output: 24V, 0~4A | CH2 output: 48V, 0~2.5A | Dimensions: 199x98x38 mm
RD-125-4824 CH1 output: 48V, 0~2.5A | CH2 output: 24V, 0~4A | Dimensions: 199x98x38 mm
RD-125-1205 CH1 output: 12V, 0~10.5A | CH2 output: 5V, 0~3A | Dimensions: 199x98x38 mm
RD-125-2405 CH1 output: 24V, 0~5.3A | CH2 output: 5V, 0~3A | Dimensions: 199x98x38 mm
Enclosed Switching Power SuppliesMEAN WELL
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL RD Series Miniwatt Dual Output Enclosed Power Supply (35-125W)

Brand MEAN WELL·Enclosed Switching Power Supplies

Available part numbers (19)

RD-35A, RD-35B, RD-3513, RD-50A, RD-50B, RD-65A, RD-65B, RD-85A, RD-85B, RD-125A + 9 more — see full table ↓

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RD-35ACH1 output: 5V, 0~4A | CH2 output: 12V, 0~1A | Dimensions: 99x82x36 mm
RD-35BCH1 output: 5V, 0~4A | CH2 output: 24V, 0~1.3A | Dimensions: 99x82x36 mm
RD-3513CH1 output: 13.5V, 0~2A | CH2 output: -13.5V, 0~1.5A | Dimensions: 99x82x36 mm
RD-50ACH1 output: 5V, 0~6A | CH2 output: 12V, 0~3A | Dimensions: 99x97x36 mm
RD-50BCH1 output: 5V, 0~6A | CH2 output: 24V, 0~2A | Dimensions: 99x97x36 mm
RD-65ACH1 output: 5V, 0~8A | CH2 output: 12V, 0~4A | Dimensions: 129x98x38 mm
RD-65BCH1 output: 5V, 0~8A | CH2 output: 24V, 0~3A | Dimensions: 129x98x38 mm
RD-85ACH1 output: 5V, 0~10A | CH2 output: 12V, 0~5A | Dimensions: 159x97x38 mm
RD-85BCH1 output: 5V, 0~10A | CH2 output: 24V, 0~2.5A | Dimensions: 159x97x38 mm
RD-125ACH1 output: 5V, 0~15A | CH2 output: 12V, 0~10A | Dimensions: 199x98x38 mm
RD-125BCH1 output: 5V, 0~10A | CH2 output: 24V, 0~5A | Dimensions: 199x98x38 mm
RD-125-1224CH1 output: 12V, 0~7A | CH2 output: 24V, 0~5A | Dimensions: 199x98x38 mm
RD-125-2412CH1 output: 24V, 0~5A | CH2 output: 12V, 0~7A | Dimensions: 199x98x38 mm
RD-125-1248CH1 output: 12V, 0~7A | CH2 output: 48V, 0~2.5A | Dimensions: 199x98x38 mm
RD-125-4812CH1 output: 48V, 0~2.5A | CH2 output: 12V, 0~7A | Dimensions: 199x98x38 mm
RD-125-2448CH1 output: 24V, 0~4A | CH2 output: 48V, 0~2.5A | Dimensions: 199x98x38 mm
RD-125-4824CH1 output: 48V, 0~2.5A | CH2 output: 24V, 0~4A | Dimensions: 199x98x38 mm
RD-125-1205CH1 output: 12V, 0~10.5A | CH2 output: 5V, 0~3A | Dimensions: 199x98x38 mm
RD-125-2405CH1 output: 24V, 0~5.3A | CH2 output: 5V, 0~3A | Dimensions: 199x98x38 mm
