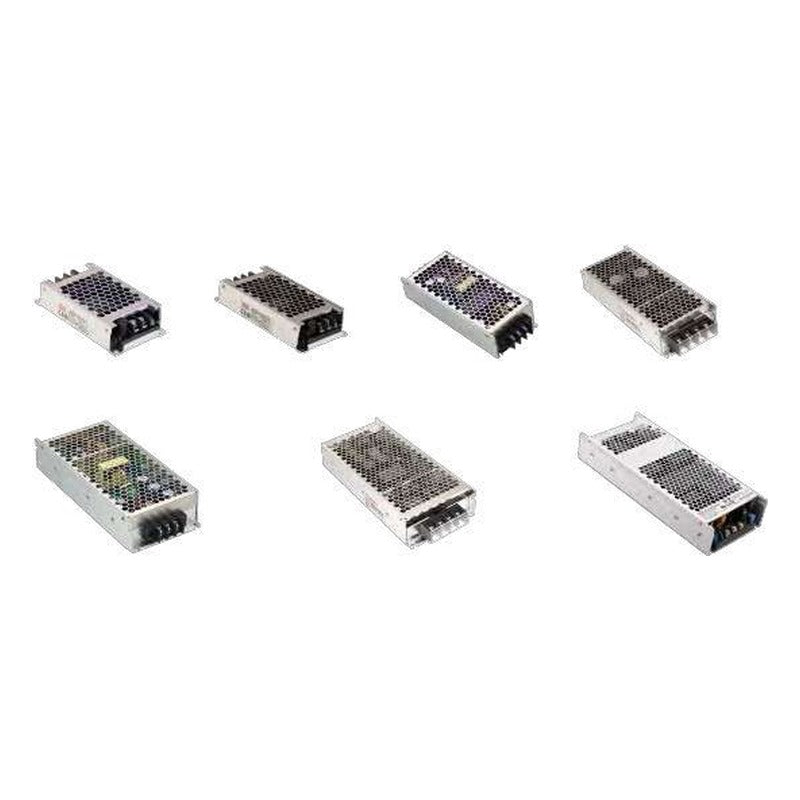

MEAN WELL RSD Series Railway & ITE Enclosed DC-DC Converter (30-500W)

MEAN WELL RSD Series Railway & ITE Enclosed DC-DC Converter (30-500W)

The RSD series is a 30-500W railway and ITE certified enclosed type DC-DC converter.

Key features

  • Also: Built-in constant current limiting circuit; Ultra compact and 1U low profile (25~41 mm); Half encapsulated, moistureproof, dustproof and 5G vibration resistance; All using 105°C long life electrolytic capacitors
RSD-30G Input: 9~36VDC | Output: 3.3V, 0~6A; 5V, 0~6A; 12V, 0~2.5A; 24V, 0~1.25A | Dimensions: 113x60x25 mm
RSD-30L Input: 18~72VDC | Output: 3.3V, 0~6A; 5V, 0~6A; 12V, 0~2.5A; 24V, 0~1.25A | Dimensions: 113x60x25 mm
RSD-30H Input: 40~160VDC | Output: 3.3V, 0~6A; 5V, 0~6A; 12V, 0~2.5A; 24V, 0~1.25A | Dimensions: 113x60x25 mm
RSD-60G Input: 9~36VDC | Output: 3.3V, 0~12A; 5V, 0~12A; 12V, 0~5A; 24V, 0~2.5A | Dimensions: 128x60x25 mm
RSD-60L Input: 18~72VDC | Output: 3.3V, 0~12A; 5V, 0~12A; 12V, 0~5A; 24V, 0~2.5A | Dimensions: 128x60x25 mm
RSD-60H Input: 40~160VDC | Output: 3.3V, 0~12A; 5V, 0~12A; 12V, 0~5A; 24V, 0~2.5A | Dimensions: 128x60x25 mm
RSD-100B Input: 16.8~31.2VDC | Output: 5V, 0~20A; 12V, 0~8.4A; 24V, 0~4.2A | Dimensions: 161x68x36 mm
RSD-100C Input: 33.6~62.4VDC | Output: 5V, 0~20A; 12V, 0~8.4A; 24V, 0~4.2A | Dimensions: 161x68x36 mm
RSD-100D Input: 67.2~143VDC | Output: 5V, 0~20A; 12V, 0~8.4A; 24V, 0~4.2A | Dimensions: 161x68x36 mm
RSD-150B Input: 16.8~31.2VDC | Output: 5V, 0~30A; 12V, 0~12.5A; 24V, 0~6.3A | Dimensions: 189x77x36 mm
RSD-150C Input: 33.6~62.4VDC | Output: 5V, 0~30A; 12V, 0~12.5A; 24V, 0~6.3A | Dimensions: 189x77x36 mm
RSD-150D Input: 67.2~143VDC | Output: 5V, 0~30A; 12V, 0~12.5A; 24V, 0~6.3A | Dimensions: 189x77x36 mm
RSD-200B Input: 16.8~31.2VDC | Output: 12V, 0~16.7A; 24V, 0~8.4A; 48V, 0~4.2A | Dimensions: 191x86x40 mm
RSD-200C Input: 33.6~62.4VDC | Output: 12V, 0~16.7A; 24V, 0~8.4A; 48V, 0~4.2A | Dimensions: 191x86x40 mm
RSD-200D Input: 67.2~143VDC | Output: 12V, 0~16.7A; 24V, 0~8.4A; 48V, 0~4.2A | Dimensions: 191x86x40 mm
RSD-500B Input: 16.8~33.6VDC | Output: 12V, 0~35A; 24V, 0~17.5A; 48V, 0~8.8A | Dimensions: 237x100x41 mm
RSD-500C Input: 33.6~67.2VDC | Output: 12V, 0~35A; 24V, 0~19.2A; 48V, 0~9.6A | Dimensions: 237x100x41 mm
RSD-500D Input: 67.2~154VDC | Output: 12V, 0~35A; 24V, 0~20.8A; 48V, 0~10.4A | Dimensions: 237x100x41 mm
RSD-300B Input: 16.8~31.2VDC | Output: 5V, 0~42A; 12V, 0~22.5A; 24V, 0~11.3A; 48V, 0~5.7A | Dimensions: 216x96.5x40 mm
RSD-300C Input: 33.6~62.4VDC | Output: 5V, 0~42A; 12V, 0~25A; 24V, 0~12.5A; 48V, 0~6.3A | Dimensions: 216x96.5x40 mm
RSD-300D Input: 67.2~143VDC | Output: 5V, 0~42A; 12V, 0~25A; 24V, 0~12.5A; 48V, 0~6.3A | Dimensions: 216x96.5x40 mm
RSD-300E Input: 25.2~46.8VDC | Output: 5V, 0~42A; 12V, 0~25A; 24V, 0~12.5A; 48V, 0~6.3A | Dimensions: 216x96.5x40 mm
RSD-300F Input: 50.4~93.6VDC | Output: 5V, 0~42A; 12V, 0~25A; 24V, 0~12.5A; 48V, 0~6.3A | Dimensions: 216x96.5x40 mm
DC-DC ConvertersMEAN WELL
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL RSD Series Railway & ITE Enclosed DC-DC Converter (30-500W)

Brand MEAN WELL·DC-DC Converters

Available part numbers (23)

RSD-30G, RSD-30L, RSD-30H, RSD-60G, RSD-60L, RSD-60H, RSD-100B, RSD-100C, RSD-100D, RSD-150B + 13 more — see full table ↓

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSD-30GInput: 9~36VDC | Output: 3.3V, 0~6A; 5V, 0~6A; 12V, 0~2.5A; 24V, 0~1.25A | Dimensions: 113x60x25 mm
RSD-30LInput: 18~72VDC | Output: 3.3V, 0~6A; 5V, 0~6A; 12V, 0~2.5A; 24V, 0~1.25A | Dimensions: 113x60x25 mm
RSD-30HInput: 40~160VDC | Output: 3.3V, 0~6A; 5V, 0~6A; 12V, 0~2.5A; 24V, 0~1.25A | Dimensions: 113x60x25 mm
RSD-60GInput: 9~36VDC | Output: 3.3V, 0~12A; 5V, 0~12A; 12V, 0~5A; 24V, 0~2.5A | Dimensions: 128x60x25 mm
RSD-60LInput: 18~72VDC | Output: 3.3V, 0~12A; 5V, 0~12A; 12V, 0~5A; 24V, 0~2.5A | Dimensions: 128x60x25 mm
RSD-60HInput: 40~160VDC | Output: 3.3V, 0~12A; 5V, 0~12A; 12V, 0~5A; 24V, 0~2.5A | Dimensions: 128x60x25 mm
RSD-100BInput: 16.8~31.2VDC | Output: 5V, 0~20A; 12V, 0~8.4A; 24V, 0~4.2A | Dimensions: 161x68x36 mm
RSD-100CInput: 33.6~62.4VDC | Output: 5V, 0~20A; 12V, 0~8.4A; 24V, 0~4.2A | Dimensions: 161x68x36 mm
RSD-100DInput: 67.2~143VDC | Output: 5V, 0~20A; 12V, 0~8.4A; 24V, 0~4.2A | Dimensions: 161x68x36 mm
RSD-150BInput: 16.8~31.2VDC | Output: 5V, 0~30A; 12V, 0~12.5A; 24V, 0~6.3A | Dimensions: 189x77x36 mm
RSD-150CInput: 33.6~62.4VDC | Output: 5V, 0~30A; 12V, 0~12.5A; 24V, 0~6.3A | Dimensions: 189x77x36 mm
RSD-150DInput: 67.2~143VDC | Output: 5V, 0~30A; 12V, 0~12.5A; 24V, 0~6.3A | Dimensions: 189x77x36 mm
RSD-200BInput: 16.8~31.2VDC | Output: 12V, 0~16.7A; 24V, 0~8.4A; 48V, 0~4.2A | Dimensions: 191x86x40 mm
RSD-200CInput: 33.6~62.4VDC | Output: 12V, 0~16.7A; 24V, 0~8.4A; 48V, 0~4.2A | Dimensions: 191x86x40 mm
RSD-200DInput: 67.2~143VDC | Output: 12V, 0~16.7A; 24V, 0~8.4A; 48V, 0~4.2A | Dimensions: 191x86x40 mm
RSD-500BInput: 16.8~33.6VDC | Output: 12V, 0~35A; 24V, 0~17.5A; 48V, 0~8.8A | Dimensions: 237x100x41 mm
RSD-500CInput: 33.6~67.2VDC | Output: 12V, 0~35A; 24V, 0~19.2A; 48V, 0~9.6A | Dimensions: 237x100x41 mm
RSD-500DInput: 67.2~154VDC | Output: 12V, 0~35A; 24V, 0~20.8A; 48V, 0~10.4A | Dimensions: 237x100x41 mm
RSD-300BInput: 16.8~31.2VDC | Output: 5V, 0~42A; 12V, 0~22.5A; 24V, 0~11.3A; 48V, 0~5.7A | Dimensions: 216x96.5x40 mm
RSD-300CInput: 33.6~62.4VDC | Output: 5V, 0~42A; 12V, 0~25A; 24V, 0~12.5A; 48V, 0~6.3A | Dimensions: 216x96.5x40 mm
RSD-300DInput: 67.2~143VDC | Output: 5V, 0~42A; 12V, 0~25A; 24V, 0~12.5A; 48V, 0~6.3A | Dimensions: 216x96.5x40 mm
RSD-300EInput: 25.2~46.8VDC | Output: 5V, 0~42A; 12V, 0~25A; 24V, 0~12.5A; 48V, 0~6.3A | Dimensions: 216x96.5x40 mm
RSD-300FInput: 50.4~93.6VDC | Output: 5V, 0~42A; 12V, 0~25A; 24V, 0~12.5A; 48V, 0~6.3A | Dimensions: 216x96.5x40 mm
