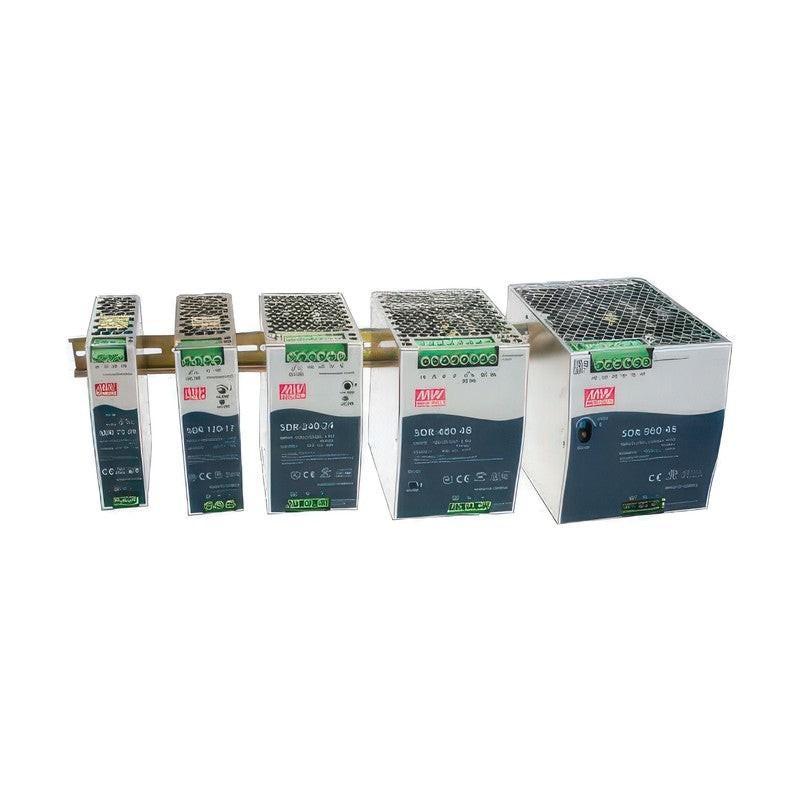

MEAN WELL SDR Series High Performance DIN Rail Power Supply (75-960W)

MEAN WELL SDR Series High Performance DIN Rail Power Supply (75-960W)

The SDR series is a 75-960W high performance DIN rail AC-DC power supply with active PFC.

Key features

  • Key features: Universal AC input /Full range(SDR-75~480) 180~264 VAC input only (SDR-960); DIN Rail:TS-35/7.5 or TS-35/15; High efficiency up to 94%; Cooling by free air convection; Protections: Short Circuit/Overload/Over Voltage/Over Temp
  • Also: 130%~150% peak load capability; DC output voltage adjustable; Current sharing (7+1 for SDR-480P, 3+1 for SDR-960); Built-in constant current limiting circuit
SDR-75 Input: 88~264VAC | Output: 12V, 0~6.3A; 24V, 0~3.2A; 48V, 0~1.6A | Dimensions: 32x125.2x102 mm
SDR-120 Input: 88~264VAC | Output: 12V, 0~10A; 24V, 0~ 5A; 48V, 0~2.5A | Dimensions: 40x125.2x113.5 mm
SDR-240 Input: 88~264VAC | Output: 24V, 0~10A; 48V, 0~5A | Dimensions: 63x125.2x113.5 mm
SDR-480□ Input: 90~264VAC | Output: 24V, 0~20A; 48V, 0~10A | Dimensions: 85.5x125.2x128.5 mm
SDR-960 Input: 180~264VAC | Output: 24V, 0~40A; 48V, 0~20A | Dimensions: 110x125.2x150 mm
DIN Rail Power SuppliesMEAN WELL
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL SDR Series High Performance DIN Rail Power Supply (75-960W)

Brand MEAN WELL·DIN Rail Power Supplies

Available part numbers (5)

SDR-75, SDR-120, SDR-240, SDR-480□, SDR-960

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SDR-75Input: 88~264VAC | Output: 12V, 0~6.3A; 24V, 0~3.2A; 48V, 0~1.6A | Dimensions: 32x125.2x102 mm
SDR-120Input: 88~264VAC | Output: 12V, 0~10A; 24V, 0~ 5A; 48V, 0~2.5A | Dimensions: 40x125.2x113.5 mm
SDR-240Input: 88~264VAC | Output: 24V, 0~10A; 48V, 0~5A | Dimensions: 63x125.2x113.5 mm
SDR-480□Input: 90~264VAC | Output: 24V, 0~20A; 48V, 0~10A | Dimensions: 85.5x125.2x128.5 mm
SDR-960Input: 180~264VAC | Output: 24V, 0~40A; 48V, 0~20A | Dimensions: 110x125.2x150 mm
