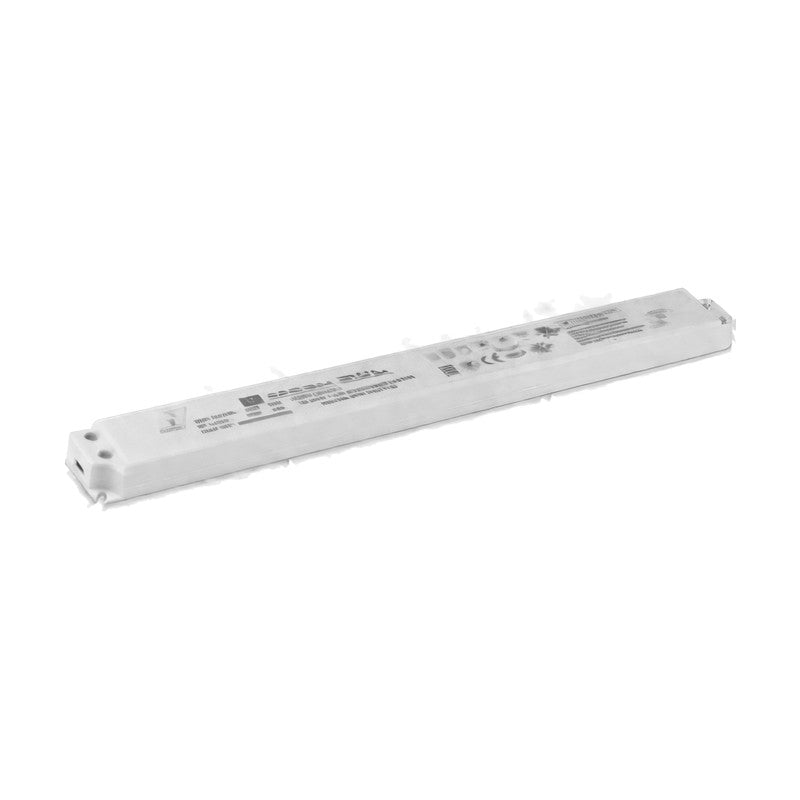

MEAN WELL SLD Series Slim Linear Constant Voltage + Constant Current LED Driver (50-150 W)

MEAN WELL SLD Series Slim Linear Constant Voltage + Constant Current LED Driver (50-150 W)

The SLD series is a slim linear LED driver with constant voltage + constant current output, covering 50 to 150 W.

Key features

  • Universal 110~305 VAC input, built-in active PFC and plastic housing with Class II design
  • Class 2 power unit (except SLD-80-12); meets BS EN61347/EN60335 regulations; no-load power consumption below 0.5 W
  • Protections: short circuit, over current and over temperature. 3-year warranty (5 years for SLD-150)

Specifications

Input voltage 110~305 VAC
SLD-50 Output: 12V, 24V, 56V/0.9~1.4A | Dimensions: 280x30x16.8 mm | Input voltage: 110~305 VAC
SLD-80 Output: 12V, 24V, 56V/1.4~2.1A | Dimensions: 320x30x16.8 mm | Input voltage: 110~305 VAC
SLD-150 Output: 12V, 24V, 56V(48V)/2.6~4.1A | Dimensions: 330x35x22 mm | Input voltage: 110~305 VAC
LED DriversMEAN WELL
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL SLD Series Slim Linear Constant Voltage + Constant Current LED Driver (50-150 W)

Brand MEAN WELL·LED Drivers

Available part numbers (3)

SLD-50, SLD-80, SLD-150

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SLD-50Output: 12V, 24V, 56V/0.9~1.4A | Dimensions: 280x30x16.8 mm | Input voltage: 110~305 VAC
SLD-80Output: 12V, 24V, 56V/1.4~2.1A | Dimensions: 320x30x16.8 mm | Input voltage: 110~305 VAC
SLD-150Output: 12V, 24V, 56V(48V)/2.6~4.1A | Dimensions: 330x35x22 mm | Input voltage: 110~305 VAC
