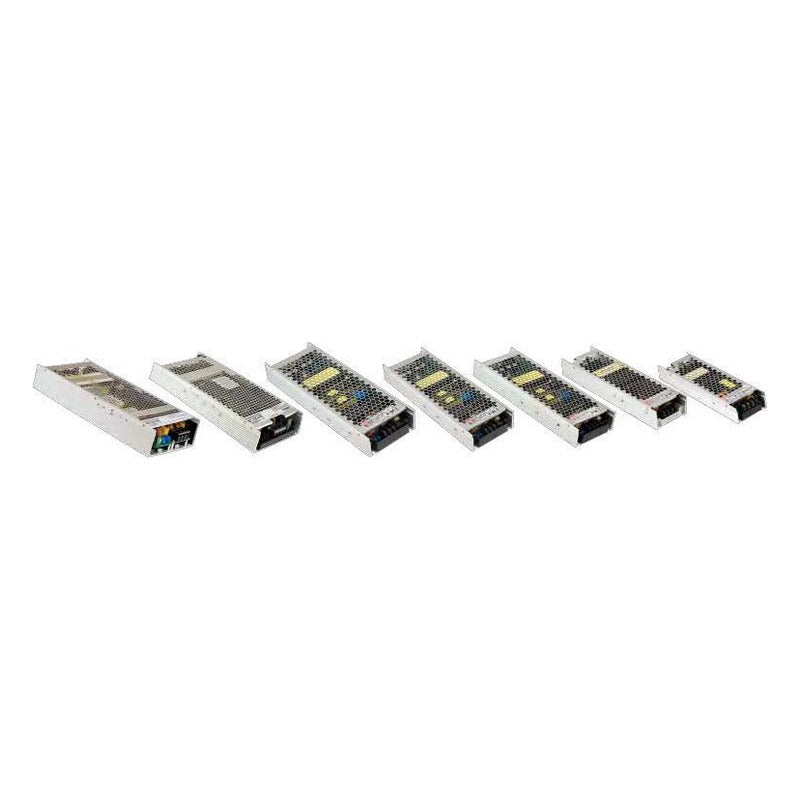

MEAN WELL UHP Series Fanless Slim Power Supply with PFC (200-2500W)

MEAN WELL UHP Series Fanless Slim Power Supply with PFC (200-2500W)

The UHP series is a 200-2500W fanless, slim single output AC-DC power supply with active PFC function.

Key features

  • Key features: Universal full range input: 90~264 VAC; Withstand 300VAC surge input for 5 sec; Filled with half glue, dustproof and anti-vibration (except UHP-2500); Slim width and low profile; Built-in active PFC function
  • Also: 150% peak load capacility (100ms,UHP-200~500); Fanless design, free air convection; Output voltage and constant current level adjustable (>=1000W); Protections: Short Circuit/Overload/Over Voltage/Over Temp
UHP-200□ Output: 3.3V, 0~40A; 4.2V, 0~40A; 5V, 0~40A; 12V, 0~16.7A; 15V, 0~13.4A; 24V, 0~8.4A; 36V, 0~5.6A; 48V, 0~4.2A; 55V, 0~3.6A | Dimensions: 194x55x26 mm
UHP-350□ Output: 3.3V, 0~60A; 4.2V, 0~60A; 5V, 0~60A; 12V, 0~29.2A; 15V, 0~23.4A; 24V, 0~14.6A; 36V, 0~9.75A; 48V, 0~7.3A; 55V, 0~6.3A | Dimensions: 220x62x31 mm
UHP-500□ Output: 4.2V, 0~80A; 5V, 0~80A; 12V, 0~41.7A; 15V, 0~33.4A; 24V, 0~20.9A; 36V, 0~13.9A; 48V, 0~10.45A; 55V, 0~8.9A | Dimensions: 233x81x31 mm
UHP-750 Output: 12V, 0~60A; 24V, 0~31.3A; 36V, 0~21A; 48V, 0~15.7A | Dimensions: 237x100x41 mm
UHP-1000 Output: 12V, 0~80A; 24V, 0~42A; 36V, 0~28A; 48V, 0~21A | Dimensions: 240x115x41 mm
UHP-1500 Output: 24V, 0~62.5A; 48V, 0~31.5A | Dimensions: 290x140x41 mm
UHP-2500 Output: 24V, 0~104.2; 36V, 0~69.4A; 48V, 0~52.1A | Dimensions: 310x140x60 mm
Enclosed Switching Power SuppliesMEAN WELL
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL UHP Series Fanless Slim Power Supply with PFC (200-2500W)

Brand MEAN WELL·Enclosed Switching Power Supplies

Available part numbers (7)

UHP-200□, UHP-350□, UHP-500□, UHP-750, UHP-1000, UHP-1500, UHP-2500

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UHP-200□Output: 3.3V, 0~40A; 4.2V, 0~40A; 5V, 0~40A; 12V, 0~16.7A; 15V, 0~13.4A; 24V, 0~8.4A; 36V, 0~5.6A; 48V, 0~4.2A; 55V, 0~3.6A | Dimensions: 194x55x26 mm
UHP-350□Output: 3.3V, 0~60A; 4.2V, 0~60A; 5V, 0~60A; 12V, 0~29.2A; 15V, 0~23.4A; 24V, 0~14.6A; 36V, 0~9.75A; 48V, 0~7.3A; 55V, 0~6.3A | Dimensions: 220x62x31 mm
UHP-500□Output: 4.2V, 0~80A; 5V, 0~80A; 12V, 0~41.7A; 15V, 0~33.4A; 24V, 0~20.9A; 36V, 0~13.9A; 48V, 0~10.45A; 55V, 0~8.9A | Dimensions: 233x81x31 mm
UHP-750Output: 12V, 0~60A; 24V, 0~31.3A; 36V, 0~21A; 48V, 0~15.7A | Dimensions: 237x100x41 mm
UHP-1000Output: 12V, 0~80A; 24V, 0~42A; 36V, 0~28A; 48V, 0~21A | Dimensions: 240x115x41 mm
UHP-1500Output: 24V, 0~62.5A; 48V, 0~31.5A | Dimensions: 290x140x41 mm
UHP-2500Output: 24V, 0~104.2; 36V, 0~69.4A; 48V, 0~52.1A | Dimensions: 310x140x60 mm
