MEAN WELL VFD Series Variable Frequency Drive (150-750W)

MEAN WELL VFD Series Variable Frequency Drive (150-750W)

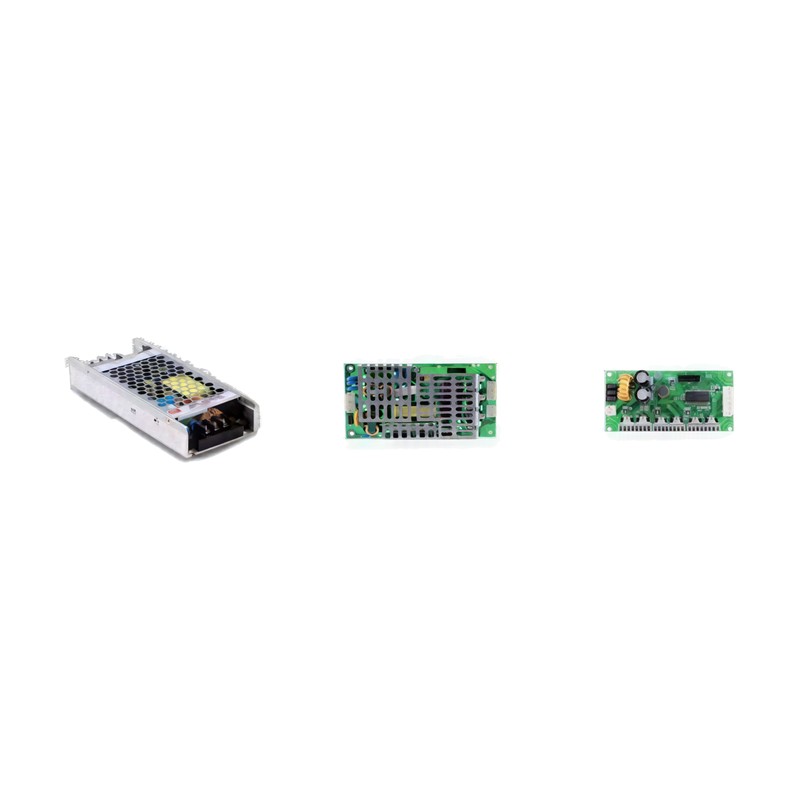

The VFD series is a 150-750W variable frequency drive with 3-phase UVW output for motor control, in metal case and PCB versions.

Key features

  • Key features: 90~264 VAC input, built-in PFC function (VFD-200C/350C/750C/250P/350P-230); 20~55 VDC input (VFD-150P/250P/350P-48); Driver efficiency up to 93%; Fanless design; High surge current 200% up to 5 secs
  • Also: Suitable for driving BLDC brushless motors, it can be used in HVAC systems, water pumps, air conditioners, medical treatment, AVG, home appliances, etc; -30~+70°C wide operating temperature; Optional control card; EN61800-5/3 certified

Specifications

Output voltage 3 Phase UVW, line to line 0~240 VAC
VFD-200C-230 Appearance: Metal Case | Input: 90~264VAC | Watt: 200W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 146x55x26 mm
VFD-350C-230 Appearance: Metal Case | Input: 90~264VAC | Watt: 300W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 146x62x31 mm
VFD-750C-230 Appearance: Metal Case | Input: 90~264VAC | Watt: 750W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 150x100x41 mm
VFD-250P-230 Appearance: PCB On Board Type(5''x3'') | Input: 90~264VAC | Watt: 250W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 127x76.2x35 mm
VFD-350P-230 Appearance: PCB On Board Type(5''x3'') | Input: 90~264VAC | Watt: 350W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 127x76.2x35 mm
VFD-150P-48 Appearance: PCB On Board Type(4''x2'') | Input: 20~55VDC | Watt: 150W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 101.6x50.8x25.6 mm
VFD-250P-48 Appearance: PCB On Board Type(4''x2'') | Input: 20~55VDC | Watt: 250W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 101.6x50.8x25.6 mm
VFD-350P-48 Appearance: PCB On Board Type(4''x2'') | Input: 20~55VDC | Watt: 350W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 101.6x50.8x25.6 mm
Variable Frequency DrivesMEAN WELL
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL VFD Series Variable Frequency Drive (150-750W)

Brand MEAN WELL·Variable Frequency Drives

Available part numbers (8)

VFD-200C-230, VFD-350C-230, VFD-750C-230, VFD-250P-230, VFD-350P-230, VFD-150P-48, VFD-250P-48, VFD-350P-48

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VFD-200C-230Appearance: Metal Case | Input: 90~264VAC | Watt: 200W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 146x55x26 mm
VFD-350C-230Appearance: Metal Case | Input: 90~264VAC | Watt: 300W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 146x62x31 mm
VFD-750C-230Appearance: Metal Case | Input: 90~264VAC | Watt: 750W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 150x100x41 mm
VFD-250P-230Appearance: PCB On Board Type(5''x3'') | Input: 90~264VAC | Watt: 250W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 127x76.2x35 mm
VFD-350P-230Appearance: PCB On Board Type(5''x3'') | Input: 90~264VAC | Watt: 350W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 127x76.2x35 mm
VFD-150P-48Appearance: PCB On Board Type(4''x2'') | Input: 20~55VDC | Watt: 150W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 101.6x50.8x25.6 mm
VFD-250P-48Appearance: PCB On Board Type(4''x2'') | Input: 20~55VDC | Watt: 250W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 101.6x50.8x25.6 mm
VFD-350P-48Appearance: PCB On Board Type(4''x2'') | Input: 20~55VDC | Watt: 350W | Output voltage: 3 Phase UVW, line to line 0~240 VAC | Dimensions: 101.6x50.8x25.6 mm
