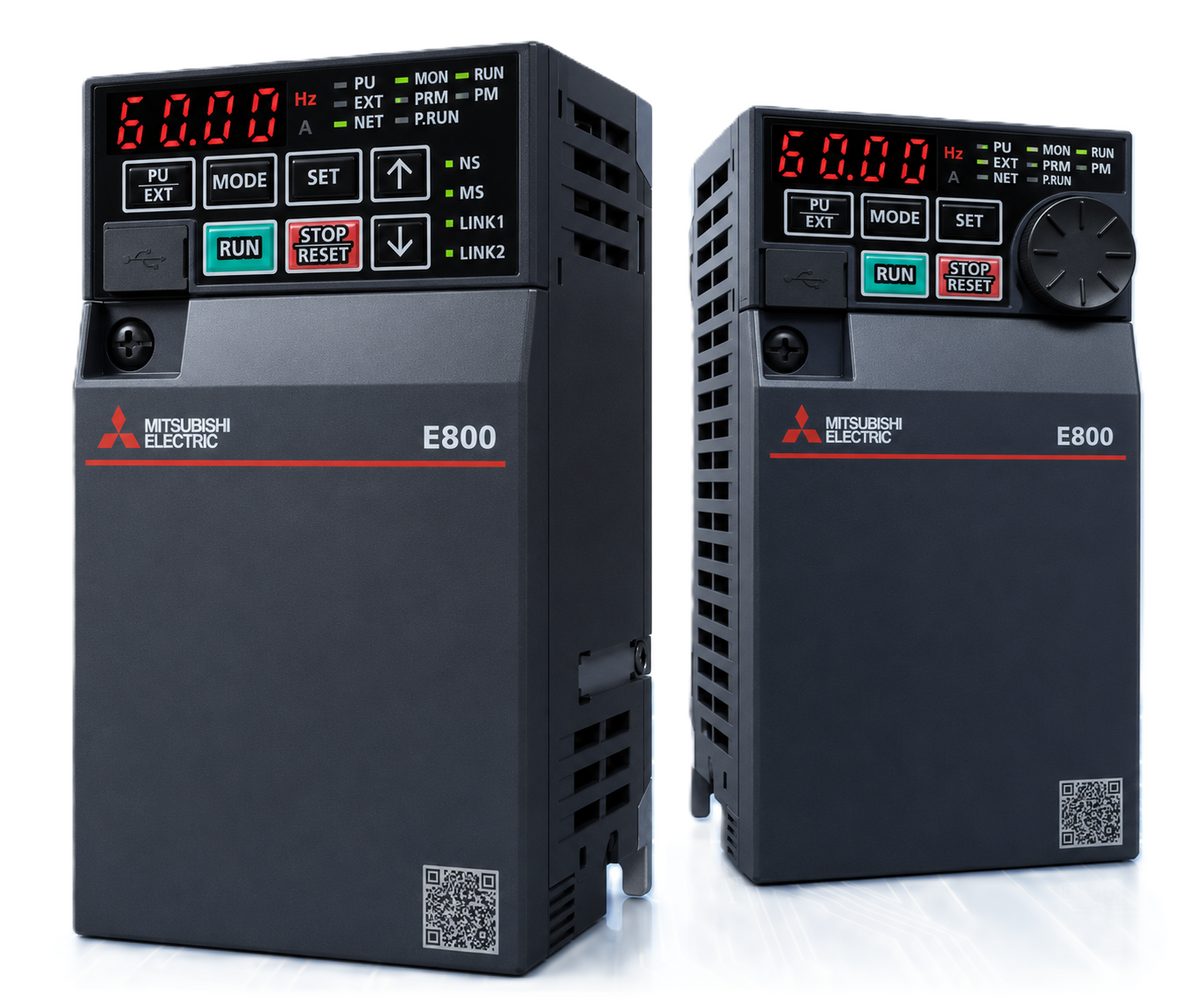

Mitsubishi Electric FR-E820 Compact Inverter (3-Phase 200V, 0.1–22kW, RS-485 Standard)

Mitsubishi Electric FR-E820 Compact Inverter (3-Phase 200V, 0.1–22kW, RS-485 Standard)

Mitsubishi Electric FR-E800 series compact inverter FR-E820, 3-phase 200–240V class, 0.1–22kW, with RS-485 communication and SIL2/PLd functional safety.

Key features

  • Dual LD/ND rating (model name = ND), overload 150% 60s / 200% 3s (ND) or 120% 60s / 150% 3s (LD) at 50°C, Soft-PWM control, open type IP20
  • Optional circuit board coating (-60/-06) available

Specifications

Initial Rated Frequency 60Hz
Control Logic Sink
FR-E820-0.1K-1 FR-E820 compact inverter, 0.1kW ND, Standard -1 | Capacity ND: 0.1 kW (code 0008) | Motor LD: 0.2 kW | Rated Current ND: 0.8 A (0.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 1.3 A (1.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.3 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Stocked
FR-E820-0.1K-5 FR-E820 compact inverter, 0.1kW ND, Standard -5 | Capacity ND: 0.1 kW (code 0008) | Motor LD: 0.2 kW | Rated Current ND: 0.8 A (0.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 1.3 A (1.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.3 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.2K-1 FR-E820 compact inverter, 0.2kW ND, Standard -1 | Capacity ND: 0.2 kW (code 0015) | Motor LD: 0.4 kW | Rated Current ND: 1.5 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.0 A (1.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.6 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Stocked
FR-E820-0.2K-5 FR-E820 compact inverter, 0.2kW ND, Standard -5 | Capacity ND: 0.2 kW (code 0015) | Motor LD: 0.4 kW | Rated Current ND: 1.5 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.0 A (1.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 0.6 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: None | Max Brake Torque ND: 150% | Cooling: Self-cooling | Weight: 0.5 kg | Availability: Made-to-order
FR-E820-0.4K-1 FR-E820 compact inverter, 0.4kW ND, Standard -1 | Capacity ND: 0.4 kW (code 0030) | Motor LD: 0.75 kW | Rated Current ND: 3.0 A (2.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 0.7 kg | Availability: Stocked
FR-E820-0.4K-5 FR-E820 compact inverter, 0.4kW ND, Standard -5 | Capacity ND: 0.4 kW (code 0030) | Motor LD: 0.75 kW | Rated Current ND: 3.0 A (2.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 0.7 kg | Availability: Made-to-order
FR-E820-0.75K-1 FR-E820 compact inverter, 0.75kW ND, Standard -1 | Capacity ND: 0.75 kW (code 0050) | Motor LD: 1.1 kW | Rated Current ND: 5.0 A (4.1 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.0 A (5.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.0 kg | Availability: Stocked
FR-E820-0.75K-5 FR-E820 compact inverter, 0.75kW ND, Standard -5 | Capacity ND: 0.75 kW (code 0050) | Motor LD: 1.1 kW | Rated Current ND: 5.0 A (4.1 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.0 A (5.1 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.0 kg | Availability: Made-to-order
FR-E820-1.5K-1 FR-E820 compact inverter, 1.5kW ND, Standard -1 | Capacity ND: 1.5 kW (code 0080) | Motor LD: 2.2 kW | Rated Current ND: 8.0 A (7.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 9.6 A (8.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.2 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Stocked
FR-E820-1.5K-5 FR-E820 compact inverter, 1.5kW ND, Standard -5 | Capacity ND: 1.5 kW (code 0080) | Motor LD: 2.2 kW | Rated Current ND: 8.0 A (7.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 9.6 A (8.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.2 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-2.2K-1 FR-E820 compact inverter, 2.2kW ND, Standard -1 | Capacity ND: 2.2 kW (code 0110) | Motor LD: 3.0 kW | Rated Current ND: 11.0 A (10.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 12.0 A (10.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.4 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Stocked
FR-E820-2.2K-5 FR-E820 compact inverter, 2.2kW ND, Standard -5 | Capacity ND: 2.2 kW (code 0110) | Motor LD: 3.0 kW | Rated Current ND: 11.0 A (10.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 12.0 A (10.2 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.4 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E820-3.7K-1 FR-E820 compact inverter, 3.7kW ND, Standard -1 | Capacity ND: 3.7 kW (code 0175) | Motor LD: 5.5 kW | Rated Current ND: 17.5 A (16.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 19.6 A (16.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.0 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Stocked
FR-E820-3.7K-5 FR-E820 compact inverter, 3.7kW ND, Standard -5 | Capacity ND: 3.7 kW (code 0175) | Motor LD: 5.5 kW | Rated Current ND: 17.5 A (16.5 A at 2kHz+ low-noise PWM) | Rated Current LD: 19.6 A (16.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.0 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E820-5.5K-1 FR-E820 compact inverter, 5.5kW ND, Standard -1 | Capacity ND: 5.5 kW (code 0240) | Motor LD: 7.5 kW | Rated Current ND: 24.0 A (23.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 30.0 A (25.5 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.6 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Stocked
FR-E820-5.5K-5 FR-E820 compact inverter, 5.5kW ND, Standard -5 | Capacity ND: 5.5 kW (code 0240) | Motor LD: 7.5 kW | Rated Current ND: 24.0 A (23.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 30.0 A (25.5 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.6 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-7.5K-1 FR-E820 compact inverter, 7.5kW ND, Standard -1 | Capacity ND: 7.5 kW (code 0330) | Motor LD: 11.0 kW | Rated Current ND: 33.0 A (31.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 40.0 A (34.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.1 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Stocked
FR-E820-7.5K-5 FR-E820 compact inverter, 7.5kW ND, Standard -5 | Capacity ND: 7.5 kW (code 0330) | Motor LD: 11.0 kW | Rated Current ND: 33.0 A (31.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 40.0 A (34.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.1 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 3.3 kg | Availability: Made-to-order
FR-E820-11K-1 FR-E820 compact inverter, 11.0kW ND, Standard -1 | Capacity ND: 11.0 kW (code 0470) | Motor LD: 15.0 kW | Rated Current ND: 47.0 A (44.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 56.0 A (47.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 18.7 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.4 kg | Availability: Stocked
FR-E820-11K-5 FR-E820 compact inverter, 11.0kW ND, Standard -5 | Capacity ND: 11.0 kW (code 0470) | Motor LD: 15.0 kW | Rated Current ND: 47.0 A (44.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 56.0 A (47.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 18.7 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.4 kg | Availability: Made-to-order
FR-E820-15K-1 FR-E820 compact inverter, 15.0kW ND, Standard -1 | Capacity ND: 15.0 kW (code 0600) | Motor LD: 18.5 kW | Rated Current ND: 60.0 A (57.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 69.0 A (58.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 23.9 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.6 kg | Availability: Stocked
FR-E820-15K-5 FR-E820 compact inverter, 15.0kW ND, Standard -5 | Capacity ND: 15.0 kW (code 0600) | Motor LD: 18.5 kW | Rated Current ND: 60.0 A (57.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 69.0 A (58.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 23.9 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 5.6 kg | Availability: Made-to-order
FR-E820-18.5K-1 FR-E820 compact inverter, 18.5kW ND, Standard -1 | Capacity ND: 18.5 kW (code 0760) | Motor LD: 22.0 kW | Rated Current ND: 76.0 A (72.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 88.0 A (74.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 30.3 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Stocked
FR-E820-18.5K-5 FR-E820 compact inverter, 18.5kW ND, Standard -5 | Capacity ND: 18.5 kW (code 0760) | Motor LD: 22.0 kW | Rated Current ND: 76.0 A (72.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 88.0 A (74.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 30.3 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E820-22K-1 FR-E820 compact inverter, 22.0kW ND, Standard -1 | Capacity ND: 22.0 kW (code 0900) | Motor LD: 30.0 kW | Rated Current ND: 90.0 A (86.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 115.0 A (97.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 35.9 kVA | Spec Type: Standard -1 | Communication: RS-485 + safety SIL2/PLd, monitor: Pulse (FM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Stocked
FR-E820-22K-5 FR-E820 compact inverter, 22.0kW ND, Standard -5 | Capacity ND: 22.0 kW (code 0900) | Motor LD: 30.0 kW | Rated Current ND: 90.0 A (86.0 A at 2kHz+ low-noise PWM) | Rated Current LD: 115.0 A (97.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 35.9 kVA | Spec Type: Standard -5 | Communication: RS-485 + safety SIL2/PLd, monitor: Voltage (AM) | Initial Rated Frequency: 60Hz | Control Logic: Sink | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
Inverters (VFD)Mitsubishi Electric
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-E820 Compact Inverter (3-Phase 200V, 0.1–22kW, RS-485 Standard)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (26)

FR-E820-0.1K-1, FR-E820-0.1K-5, FR-E820-0.2K-1, FR-E820-0.2K-5, FR-E820-0.4K-1, FR-E820-0.4K-5, FR-E820-0.75K-1, FR-E820-0.75K-5, FR-E820-1.5K-1, FR-E820-1.5K-5 + 16 more — see full table ↓
