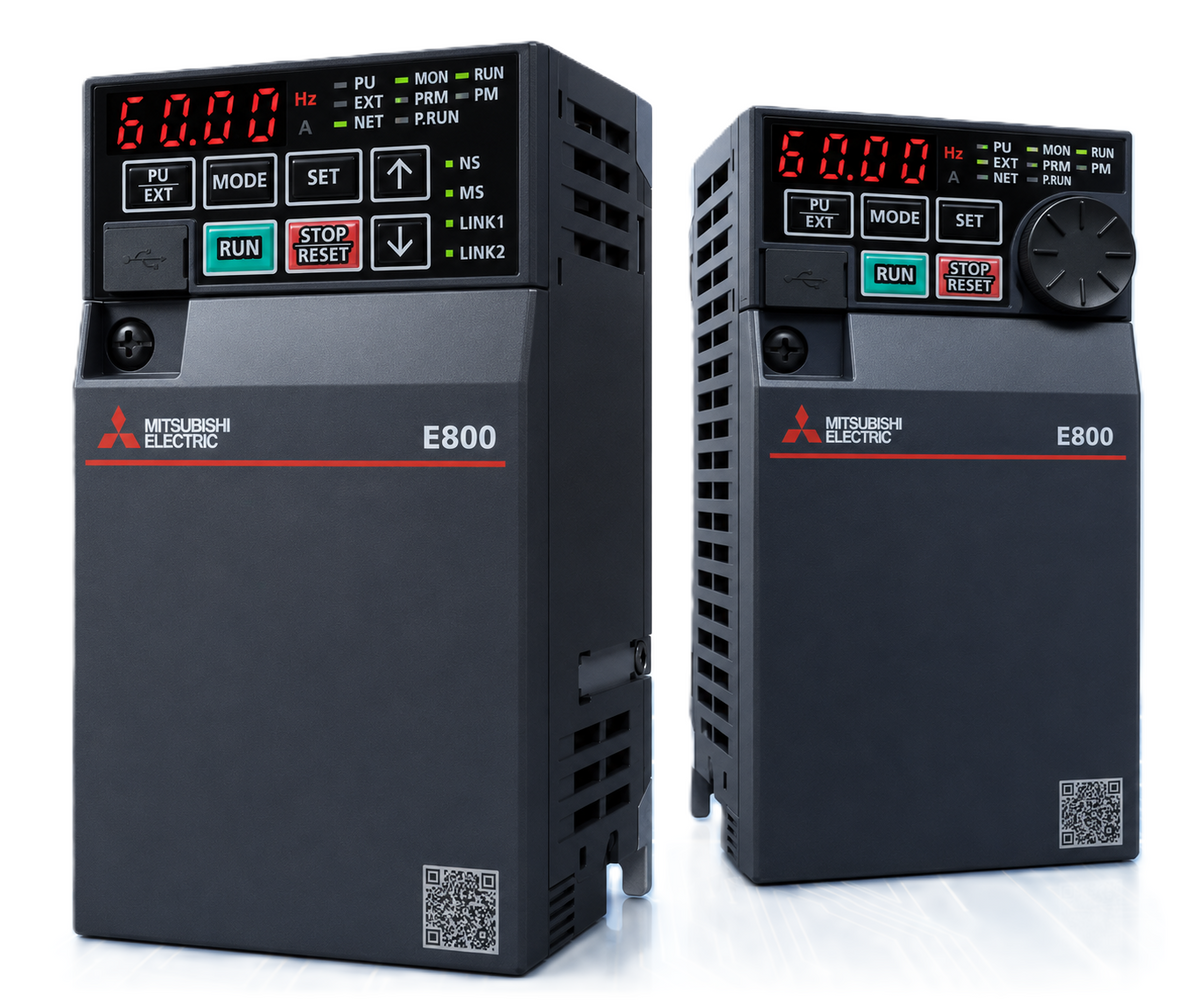

Mitsubishi Electric FR-E840 Compact Inverter (3-Phase 400V, 0.4–22kW, Safety Communication SIL3/PLe)

Mitsubishi Electric FR-E840 Compact Inverter (3-Phase 400V, 0.4–22kW, Safety Communication SIL3/PLe)

Mitsubishi Electric FR-E840 safety-communication-spec compact inverter, 3-phase 380–480V class, 0.4–22kW, with Ethernet and SIL3/PLe functional safety over network.

Key features

  • Dual LD/ND rating (model name = ND), overload 150% 60s / 200% 3s (ND) or 120% 60s / 150% 3s (LD) at 50°C, Soft-PWM control, open type IP20
  • Optional circuit board coating (-60/-06) available

Specifications

Control Logic Source
Brake Transistor Built-in
Availability Made-to-order
FR-E840-0.4KSCEPA FR-E840 compact inverter, 0.4kW ND, Safety SCEPA | Capacity ND: 0.4 kW (code 0016) | Motor LD: 0.75 kW | Rated Current ND: 1.6 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.1 A (1.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.2 kg | Availability: Made-to-order
FR-E840-0.4KSCEPB FR-E840 compact inverter, 0.4kW ND, Safety SCEPB | Capacity ND: 0.4 kW (code 0016) | Motor LD: 0.75 kW | Rated Current ND: 1.6 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.1 A (1.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.2 kg | Availability: Made-to-order
FR-E840-0.75KSCEPA FR-E840 compact inverter, 0.75kW ND, Safety SCEPA | Capacity ND: 0.75 kW (code 0026) | Motor LD: 1.5 kW | Rated Current ND: 2.6 A (2.2 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.2 kg | Availability: Made-to-order
FR-E840-0.75KSCEPB FR-E840 compact inverter, 0.75kW ND, Safety SCEPB | Capacity ND: 0.75 kW (code 0026) | Motor LD: 1.5 kW | Rated Current ND: 2.6 A (2.2 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.2 kg | Availability: Made-to-order
FR-E840-1.5KSCEPA FR-E840 compact inverter, 1.5kW ND, Safety SCEPA | Capacity ND: 1.5 kW (code 0040) | Motor LD: 2.2 kW | Rated Current ND: 4.0 A (3.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 5.5 A (4.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E840-1.5KSCEPB FR-E840 compact inverter, 1.5kW ND, Safety SCEPB | Capacity ND: 1.5 kW (code 0040) | Motor LD: 2.2 kW | Rated Current ND: 4.0 A (3.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 5.5 A (4.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E840-2.2KSCEPA FR-E840 compact inverter, 2.2kW ND, Safety SCEPA | Capacity ND: 2.2 kW (code 0060) | Motor LD: 3.0 kW | Rated Current ND: 6.0 A (5.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.9 A (5.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.6 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E840-2.2KSCEPB FR-E840 compact inverter, 2.2kW ND, Safety SCEPB | Capacity ND: 2.2 kW (code 0060) | Motor LD: 3.0 kW | Rated Current ND: 6.0 A (5.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.9 A (5.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.6 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E840-3.7KSCEPA FR-E840 compact inverter, 3.7kW ND, Safety SCEPA | Capacity ND: 3.7 kW (code 0095) | Motor LD: 5.5 kW | Rated Current ND: 9.5 A (8.7 A at 2kHz+ low-noise PWM) | Rated Current LD: 11.1 A (9.4 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.2 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E840-3.7KSCEPB FR-E840 compact inverter, 3.7kW ND, Safety SCEPB | Capacity ND: 3.7 kW (code 0095) | Motor LD: 5.5 kW | Rated Current ND: 9.5 A (8.7 A at 2kHz+ low-noise PWM) | Rated Current LD: 11.1 A (9.4 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.2 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E840-5.5KSCEPA FR-E840 compact inverter, 5.5kW ND, Safety SCEPA | Capacity ND: 5.5 kW (code 0120) | Motor LD: 7.5 kW | Rated Current ND: 12.0 A | Rated Current LD: 17.5 A (14.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.1 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 2.4 kg | Availability: Made-to-order
FR-E840-5.5KSCEPB FR-E840 compact inverter, 5.5kW ND, Safety SCEPB | Capacity ND: 5.5 kW (code 0120) | Motor LD: 7.5 kW | Rated Current ND: 12.0 A | Rated Current LD: 17.5 A (14.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.1 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 2.4 kg | Availability: Made-to-order
FR-E840-7.5KSCEPA FR-E840 compact inverter, 7.5kW ND, Safety SCEPA | Capacity ND: 7.5 kW (code 0170) | Motor LD: 11.0 kW | Rated Current ND: 17.0 A | Rated Current LD: 23.0 A (19.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 2.4 kg | Availability: Made-to-order
FR-E840-7.5KSCEPB FR-E840 compact inverter, 7.5kW ND, Safety SCEPB | Capacity ND: 7.5 kW (code 0170) | Motor LD: 11.0 kW | Rated Current ND: 17.0 A | Rated Current LD: 23.0 A (19.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 2.4 kg | Availability: Made-to-order
FR-E840-11KSCEPA FR-E840 compact inverter, 11.0kW ND, Safety SCEPA | Capacity ND: 11.0 kW (code 0230) | Motor LD: 15.0 kW | Rated Current ND: 23.0 A | Rated Current LD: 35.0 A (29.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 17.5 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 4.8 kg | Availability: Made-to-order
FR-E840-11KSCEPB FR-E840 compact inverter, 11.0kW ND, Safety SCEPB | Capacity ND: 11.0 kW (code 0230) | Motor LD: 15.0 kW | Rated Current ND: 23.0 A | Rated Current LD: 35.0 A (29.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 17.5 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 4.8 kg | Availability: Made-to-order
FR-E840-15KSCEPA FR-E840 compact inverter, 15.0kW ND, Safety SCEPA | Capacity ND: 15.0 kW (code 0300) | Motor LD: 18.5 kW | Rated Current ND: 30.0 A | Rated Current LD: 41.0 A (34.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 22.9 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 4.9 kg | Availability: Made-to-order
FR-E840-15KSCEPB FR-E840 compact inverter, 15.0kW ND, Safety SCEPB | Capacity ND: 15.0 kW (code 0300) | Motor LD: 18.5 kW | Rated Current ND: 30.0 A | Rated Current LD: 41.0 A (34.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 22.9 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 4.9 kg | Availability: Made-to-order
FR-E840-18.5KSCEPA FR-E840 compact inverter, 18.5kW ND, Safety SCEPA | Capacity ND: 18.5 kW (code 0380) | Motor LD: 22.0 kW | Rated Current ND: 38.0 A | Rated Current LD: 45.0 A (38.3 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 29.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E840-18.5KSCEPB FR-E840 compact inverter, 18.5kW ND, Safety SCEPB | Capacity ND: 18.5 kW (code 0380) | Motor LD: 22.0 kW | Rated Current ND: 38.0 A | Rated Current LD: 45.0 A (38.3 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 29.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E840-22KSCEPA FR-E840 compact inverter, 22.0kW ND, Safety SCEPA | Capacity ND: 22.0 kW (code 0440) | Motor LD: 30.0 kW | Rated Current ND: 44.0 A | Rated Current LD: 60.0 A (51.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 33.5 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E840-22KSCEPB FR-E840 compact inverter, 22.0kW ND, Safety SCEPB | Capacity ND: 22.0 kW (code 0440) | Motor LD: 30.0 kW | Rated Current ND: 44.0 A | Rated Current LD: 60.0 A (51.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 33.5 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
Inverters (VFD)Mitsubishi Electric
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric FR-E840 Compact Inverter (3-Phase 400V, 0.4–22kW, Safety Communication SIL3/PLe)

Brand Mitsubishi Electric·Inverters (VFD)

Available part numbers (22)

FR-E840-0.4KSCEPA, FR-E840-0.4KSCEPB, FR-E840-0.75KSCEPA, FR-E840-0.75KSCEPB, FR-E840-1.5KSCEPA, FR-E840-1.5KSCEPB, FR-E840-2.2KSCEPA, FR-E840-2.2KSCEPB, FR-E840-3.7KSCEPA, FR-E840-3.7KSCEPB + 12 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FR-E840-0.4KSCEPAFR-E840 compact inverter, 0.4kW ND, Safety SCEPA | Capacity ND: 0.4 kW (code 0016) | Motor LD: 0.75 kW | Rated Current ND: 1.6 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.1 A (1.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.2 kg | Availability: Made-to-order
FR-E840-0.4KSCEPBFR-E840 compact inverter, 0.4kW ND, Safety SCEPB | Capacity ND: 0.4 kW (code 0016) | Motor LD: 0.75 kW | Rated Current ND: 1.6 A (1.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 2.1 A (1.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 1.2 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.2 kg | Availability: Made-to-order
FR-E840-0.75KSCEPAFR-E840 compact inverter, 0.75kW ND, Safety SCEPA | Capacity ND: 0.75 kW (code 0026) | Motor LD: 1.5 kW | Rated Current ND: 2.6 A (2.2 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.2 kg | Availability: Made-to-order
FR-E840-0.75KSCEPBFR-E840 compact inverter, 0.75kW ND, Safety SCEPB | Capacity ND: 0.75 kW (code 0026) | Motor LD: 1.5 kW | Rated Current ND: 2.6 A (2.2 A at 2kHz+ low-noise PWM) | Rated Current LD: 3.5 A (3.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 2.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 100% | Cooling: Self-cooling | Weight: 1.2 kg | Availability: Made-to-order
FR-E840-1.5KSCEPAFR-E840 compact inverter, 1.5kW ND, Safety SCEPA | Capacity ND: 1.5 kW (code 0040) | Motor LD: 2.2 kW | Rated Current ND: 4.0 A (3.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 5.5 A (4.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E840-1.5KSCEPBFR-E840 compact inverter, 1.5kW ND, Safety SCEPB | Capacity ND: 1.5 kW (code 0040) | Motor LD: 2.2 kW | Rated Current ND: 4.0 A (3.8 A at 2kHz+ low-noise PWM) | Rated Current LD: 5.5 A (4.7 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 3.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 50% | Cooling: Forced air cooling | Weight: 1.4 kg | Availability: Made-to-order
FR-E840-2.2KSCEPAFR-E840 compact inverter, 2.2kW ND, Safety SCEPA | Capacity ND: 2.2 kW (code 0060) | Motor LD: 3.0 kW | Rated Current ND: 6.0 A (5.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.9 A (5.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.6 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E840-2.2KSCEPBFR-E840 compact inverter, 2.2kW ND, Safety SCEPB | Capacity ND: 2.2 kW (code 0060) | Motor LD: 3.0 kW | Rated Current ND: 6.0 A (5.4 A at 2kHz+ low-noise PWM) | Rated Current LD: 6.9 A (5.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 4.6 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E840-3.7KSCEPAFR-E840 compact inverter, 3.7kW ND, Safety SCEPA | Capacity ND: 3.7 kW (code 0095) | Motor LD: 5.5 kW | Rated Current ND: 9.5 A (8.7 A at 2kHz+ low-noise PWM) | Rated Current LD: 11.1 A (9.4 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.2 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E840-3.7KSCEPBFR-E840 compact inverter, 3.7kW ND, Safety SCEPB | Capacity ND: 3.7 kW (code 0095) | Motor LD: 5.5 kW | Rated Current ND: 9.5 A (8.7 A at 2kHz+ low-noise PWM) | Rated Current LD: 11.1 A (9.4 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 7.2 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 1.8 kg | Availability: Made-to-order
FR-E840-5.5KSCEPAFR-E840 compact inverter, 5.5kW ND, Safety SCEPA | Capacity ND: 5.5 kW (code 0120) | Motor LD: 7.5 kW | Rated Current ND: 12.0 A | Rated Current LD: 17.5 A (14.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.1 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 2.4 kg | Availability: Made-to-order
FR-E840-5.5KSCEPBFR-E840 compact inverter, 5.5kW ND, Safety SCEPB | Capacity ND: 5.5 kW (code 0120) | Motor LD: 7.5 kW | Rated Current ND: 12.0 A | Rated Current LD: 17.5 A (14.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 9.1 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 2.4 kg | Availability: Made-to-order
FR-E840-7.5KSCEPAFR-E840 compact inverter, 7.5kW ND, Safety SCEPA | Capacity ND: 7.5 kW (code 0170) | Motor LD: 11.0 kW | Rated Current ND: 17.0 A | Rated Current LD: 23.0 A (19.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 2.4 kg | Availability: Made-to-order
FR-E840-7.5KSCEPBFR-E840 compact inverter, 7.5kW ND, Safety SCEPB | Capacity ND: 7.5 kW (code 0170) | Motor LD: 11.0 kW | Rated Current ND: 17.0 A | Rated Current LD: 23.0 A (19.6 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 13.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 2.4 kg | Availability: Made-to-order
FR-E840-11KSCEPAFR-E840 compact inverter, 11.0kW ND, Safety SCEPA | Capacity ND: 11.0 kW (code 0230) | Motor LD: 15.0 kW | Rated Current ND: 23.0 A | Rated Current LD: 35.0 A (29.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 17.5 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 4.8 kg | Availability: Made-to-order
FR-E840-11KSCEPBFR-E840 compact inverter, 11.0kW ND, Safety SCEPB | Capacity ND: 11.0 kW (code 0230) | Motor LD: 15.0 kW | Rated Current ND: 23.0 A | Rated Current LD: 35.0 A (29.8 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 17.5 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 4.8 kg | Availability: Made-to-order
FR-E840-15KSCEPAFR-E840 compact inverter, 15.0kW ND, Safety SCEPA | Capacity ND: 15.0 kW (code 0300) | Motor LD: 18.5 kW | Rated Current ND: 30.0 A | Rated Current LD: 41.0 A (34.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 22.9 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 4.9 kg | Availability: Made-to-order
FR-E840-15KSCEPBFR-E840 compact inverter, 15.0kW ND, Safety SCEPB | Capacity ND: 15.0 kW (code 0300) | Motor LD: 18.5 kW | Rated Current ND: 30.0 A | Rated Current LD: 41.0 A (34.9 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 22.9 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 4.9 kg | Availability: Made-to-order
FR-E840-18.5KSCEPAFR-E840 compact inverter, 18.5kW ND, Safety SCEPA | Capacity ND: 18.5 kW (code 0380) | Motor LD: 22.0 kW | Rated Current ND: 38.0 A | Rated Current LD: 45.0 A (38.3 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 29.0 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E840-18.5KSCEPBFR-E840 compact inverter, 18.5kW ND, Safety SCEPB | Capacity ND: 18.5 kW (code 0380) | Motor LD: 22.0 kW | Rated Current ND: 38.0 A | Rated Current LD: 45.0 A (38.3 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 29.0 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E840-22KSCEPAFR-E840 compact inverter, 22.0kW ND, Safety SCEPA | Capacity ND: 22.0 kW (code 0440) | Motor LD: 30.0 kW | Rated Current ND: 44.0 A | Rated Current LD: 60.0 A (51.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 33.5 kVA | Spec Type: Safety SCEPA | Communication: Ethernet + safety SIL3/PLe, Protocol Group A (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, BACnet/IP) | Initial Rated Frequency: 60Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
FR-E840-22KSCEPBFR-E840 compact inverter, 22.0kW ND, Safety SCEPB | Capacity ND: 22.0 kW (code 0440) | Motor LD: 30.0 kW | Rated Current ND: 44.0 A | Rated Current LD: 60.0 A (51.0 A at 2kHz+ low-noise PWM) | Rated Capacity ND: 33.5 kVA | Spec Type: Safety SCEPB | Communication: Ethernet + safety SIL3/PLe, Protocol Group B (CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, PROFINET) | Initial Rated Frequency: 50Hz | Control Logic: Source | Brake Transistor: Built-in | Max Brake Torque ND: 20% | Cooling: Forced air cooling | Weight: 11.0 kg | Availability: Made-to-order
